Bending Lengths: 1000mm-3000mm
Bending Thicknesses: 6mm-60mm

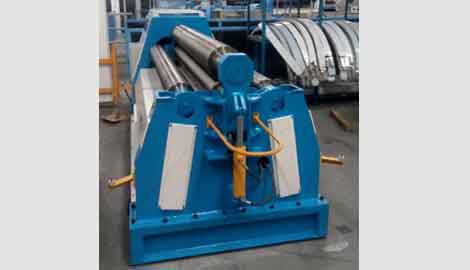

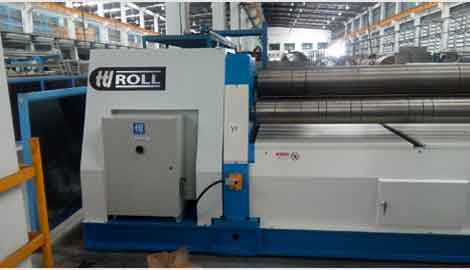

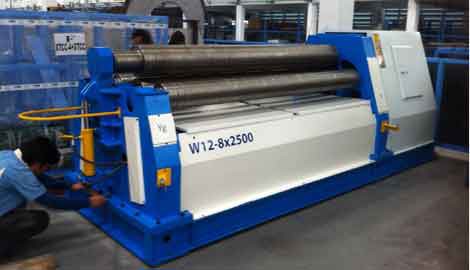

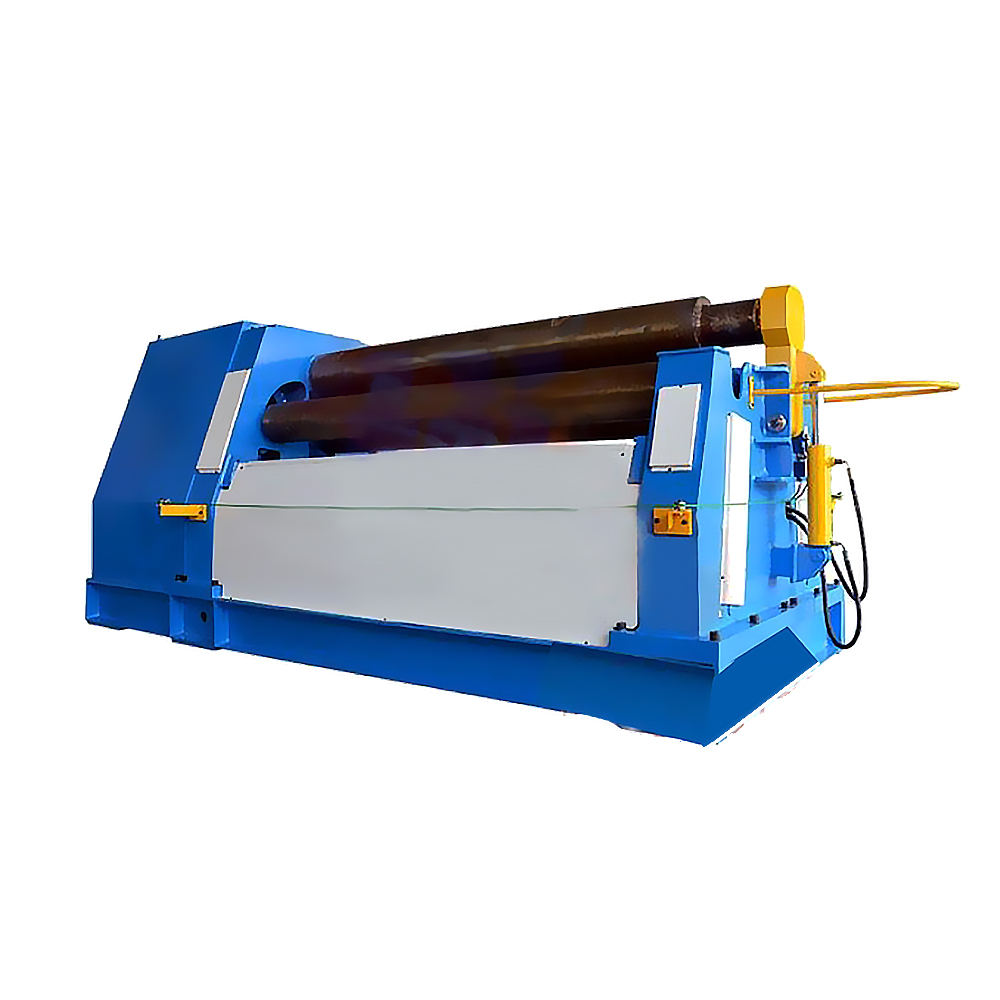

Four roll plate rolls are more precise, productive, versatile, faster, safer and easier to operate than three roll machines. They
are less dependent on operator competence. They are ideal for bending plates up to 60mm thick.
The fastest and most accurate bends are made by four roll machines. The plate is held securely in place between the top and
bottom rolls while the side rolls move vertically to create the bend.
Advantages
1. Flat zone of the part is minimized
2. Pre-bending, conical bending and ellipse bending can be done easily
3. Double pre-bends (both bends) in one pass
4. Hydraulic and electrical systems have been safeguarded from overloading and require minimum maintenance. Hydraulic and electrical components are modular and designed according to world standards.
5. The sheet reference is maintained by tightening of top and bottom rolls
6. Most desirable bending operation for PLC applications
7. More efficient for cycle times
8. User friendly operation with less dependence on operator competence
Features
1. The bottom roll moves up to hold the plate edge securely against the top roll while the side roll is raised to form an accurate pre-bend, minimizing the flat zone on the plate edge. Pre-bending on a three roll machine requires that plates be tilted down as they are being fed. In contrast, plates are loaded horizontally at the feed level for pre-bending on a four roll machine, which allows the use of horizontal motorized roller tables to help feed the plate.
2. Plate feeding can take place on either side of a four roll machine. If fed from only one side, they can even be placed up against a wall to save floor space.
3. The side rolls are positioned to the right and left of the bottom roll and are on their own axes. The independent axis of each roll helps make a perfect bend. The “back” side roll (at the far side of the feeding point) also functions as a back gauge to square the plate for proper alignment (see Figure 1 in diagram). This eliminates the need for someone to assist the operator.
4. The plate is kept square without slipping during both pre-bending and rolling because of the constant secure clamping of the top and bottom rolls.
5. Four roll machines do not require the operator to remove, flip, and then try to square and reposition the plate a second time after pre-bending, as is the case with three roll IP machines. Keeping the material in the machine makes four rolls 50% more efficient than three roll IP machines, and allows a cylinder to be rolled to the required diameter immediately following prebending.
6. Bending the back edge takes place after the cylinder is rolled, for a one direction, single pass operation.
7. Cone rolling is easier on a four roll machine. The side rolls can be tilted to establish the cone angle and the bottom roll can also be tilted to clamp and drive the plate. (Standard feature on JMT rolls.)
8. Four roll machines are the only type of plate rolls that can effectively make use of NC and CNC controls because of the constant clamping and driving of the material during all steps of rolling. Bending difficult shapes like polycentric or elliptic work pieces can be easily done with SIECC four roll machines.
