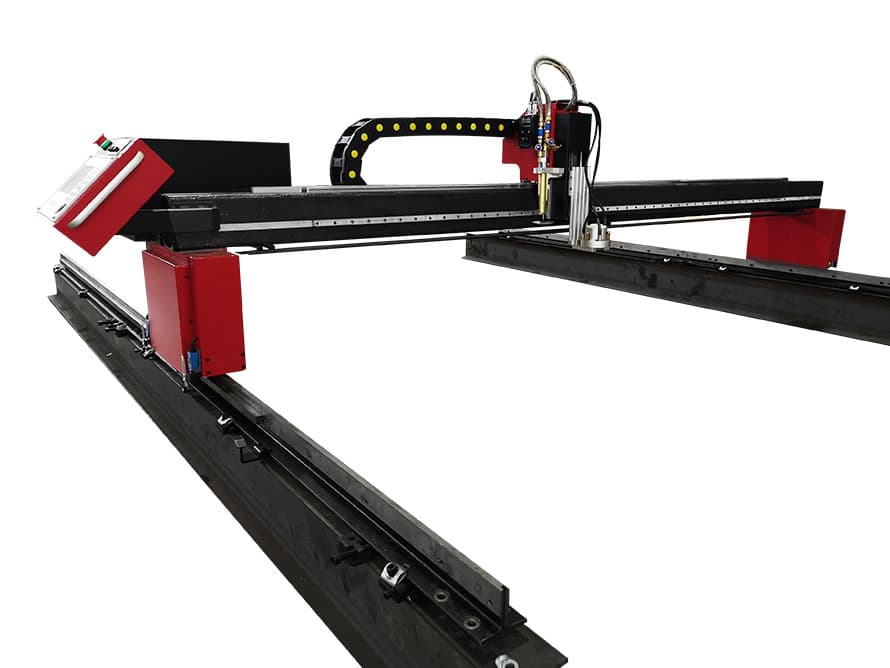

Amazing G1 CNC flame/plasma gantry cutting machine(optional: tube cutting/ marking)/ Effective Cutting: 3mX12m/ 200A High power
SteelTailor G1 gantry cnc cutting machine inherits the SteelTailor lightweight design concept, with lighter weight and better maneuverability. The lightweight design of G1 not only has the advantages of a multi-cut multi-function heavy-duty gantry, but also runs faster and more stable than most economical gantry operations, with a sharper sharp angle profile and less loss on the drive and electric system. At the same time, the design of fireproof board and blowpipe is added, which is also suitable for flame thick plate cutting.
G1 can be upgraded to a remote control system for free, which can better solve the after-sales problem remotely.
Optional: Remote Control System
 |
Support multiple cutting torch
 |

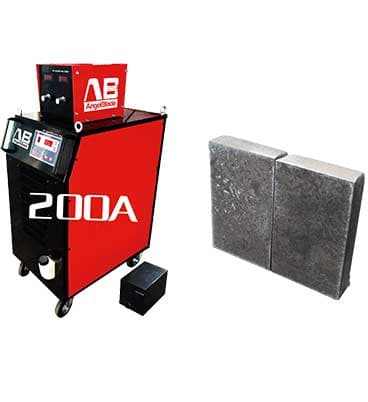

Matching high power plasma power source |

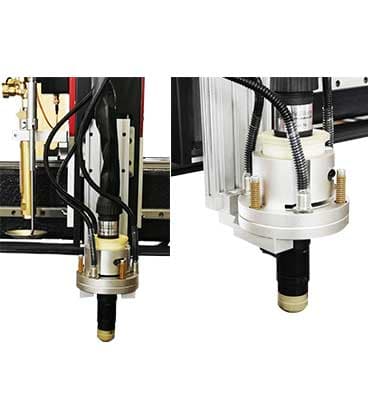

Support plasma and flame & Anti-collision design |
Optimization of small hole cutting performance
Below pictures show a 10mm thick stainless steel plate with a 10mm diameter 1:1 hole cut sample. The specially selected lifting and THC can show excellent cutting quality on the small round hole. (For customers with round hole cutting requirement, please reserve the actual demonstration of remote cutting.)
Front side (untreated dregs). |

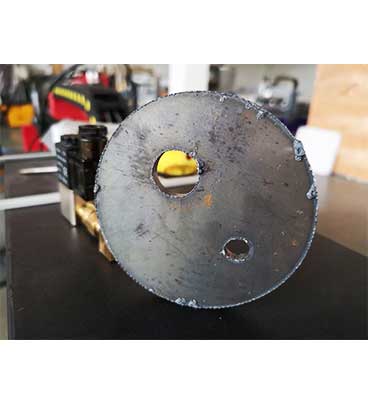

Back side (untreated dregs). |
Flame thick plate cutting (3-300mm)
Using thick steel beams to enhance flame cutting. The optional components are:
a) Flame THC
b) Automatic ignition
c) GCE injection type cutting torch (default domestic). The GCE injection type cutting torch is recommended for steel plates above 150mm
d) Fireproof board and tubular blower system (plate thickness >60mm)
e) Fixed angle bevel cutting holder

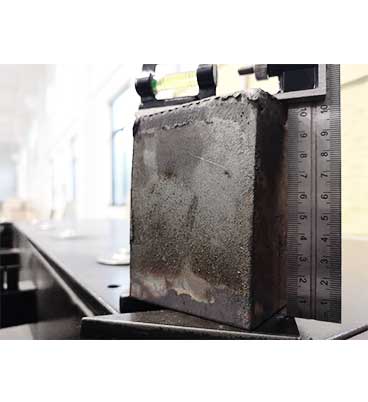

106mm carbon steel cutting sample. |

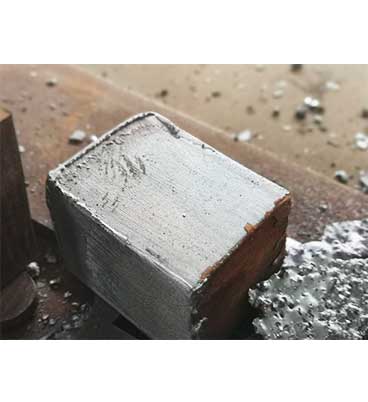

106mm carbon steel cutting sample. |
G- Acceleration
The lightweight design and hybrid servo motor make the G1 have good precision and sharp angle cutting quality.
Hybrid servo（G1） Vs stepper motor（DRAGON III） cutting profile |

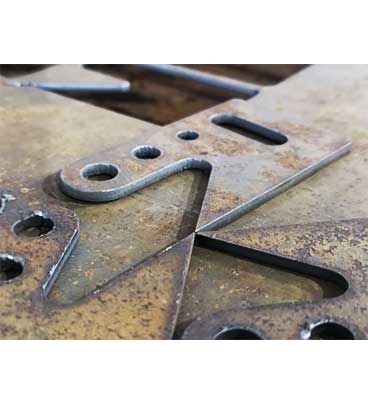

Sharp angle cutting quality. |
Multi-function : Optional function: pipe cutting, marking and multi-torch.

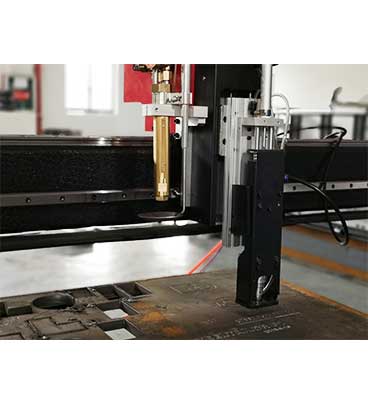

Marking function – marking head |

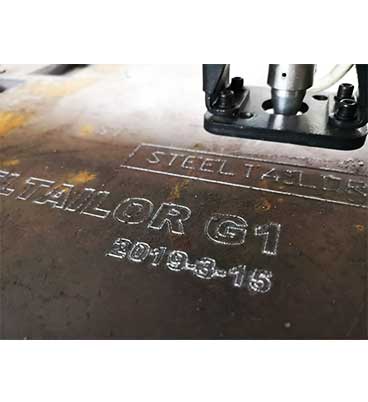

Marking sample |

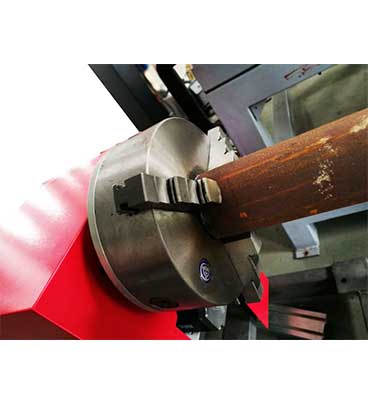

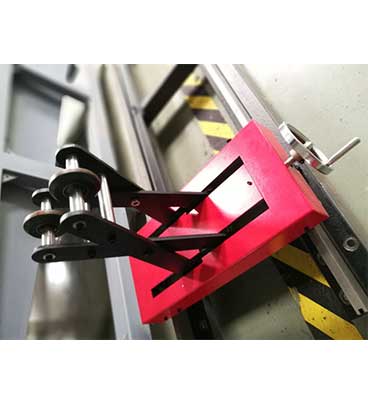

Pipe cutting mode |
Pipe cutting mode |
Free upgrade to a remote control system
Remote control system is SteelTailor’s patented product and now in the public beta period. It can realize most of the networking functions of high-end controllers such as distance learning and maintenance. Within six months, you will be able to make an appointment to apply for a free test quota.

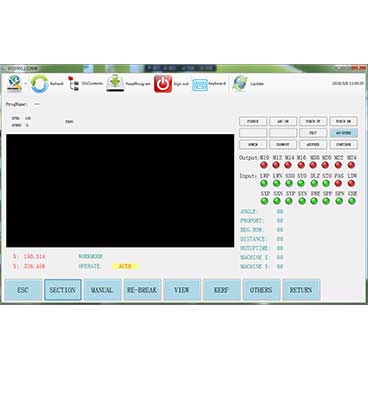

The latest developed software for remote control and remote support. |

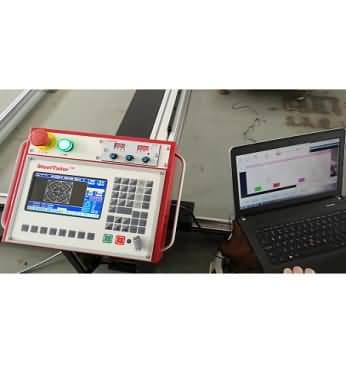

Remote control of the controller via computer and camera. |
