เครื่องดัดเรียบ รุ่น HS

Description

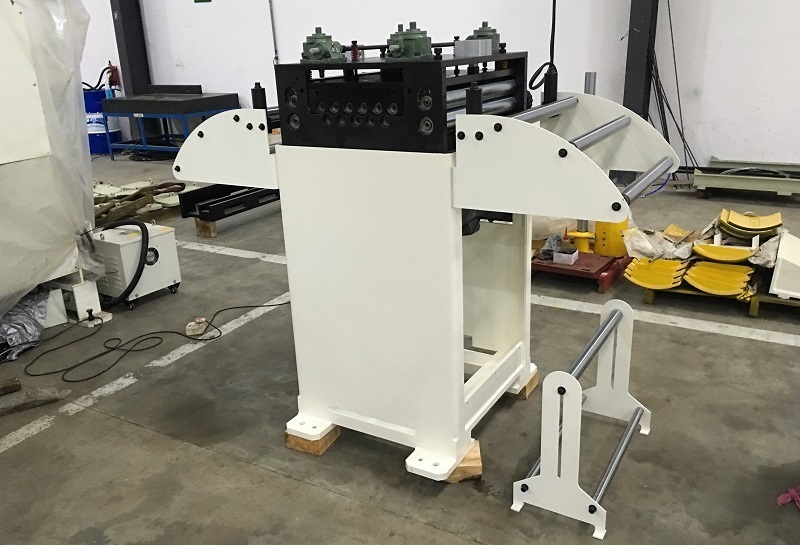

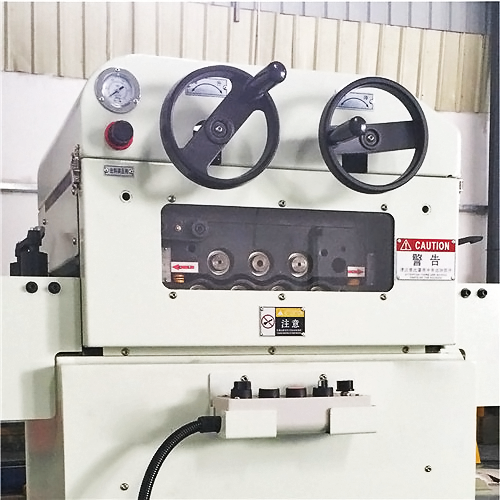

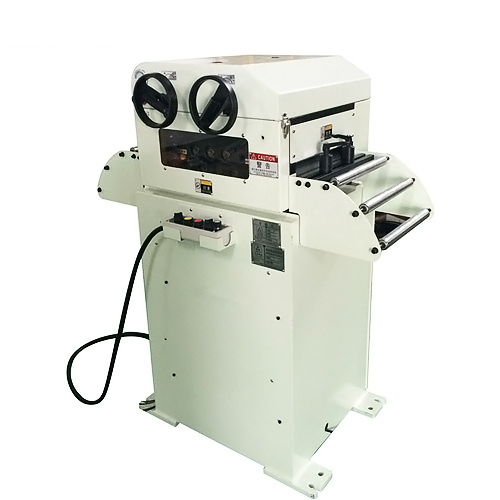

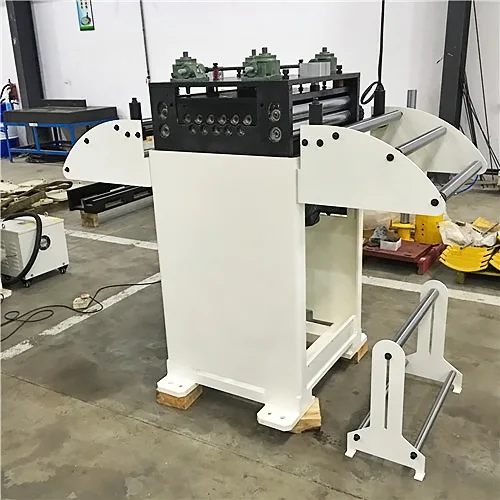

HS PRECISION SHEET METAL STRAIGHTENER
HS is HongEr precision sheet metal straightener with air cylinder roll pressure.
 It can straightening metal strip from thickness 0.5mm to 6.0mm.

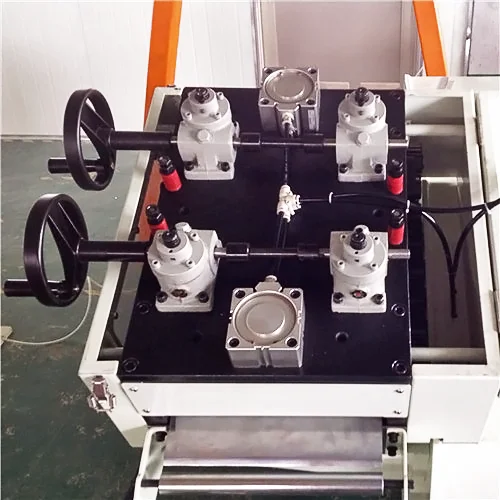

Worm gears guarantee a high precision straightening value adjustment.
The straightening speed is about 15m/min



High Quality Rolls:
Straightening Roll 9pcs
Pinch Roll 2pcs
Material: GCr15
Hardness: HRC60±2

Specification

Model

HS-200A HS-200B HS-300A HS-300B HS-400A HS-400B HS-500A HS-500B HS-600A HS-600B
Material width (mm) 200 300 400 500 600


Material thickness (mm)

0.5-4.5

1.5-6.0

0.5-4.5

1.5-6.0

0.5-4.5

1.5-6.0

0.5-4.5

1.5-6.0

0.5-4.5

1.5-6.0

Material out speed (m/min) 15 15 15 15 15


Pinching roller (mm*pcs)

Ф95×2 Ф120×2 Ф95×2 Ф120×2 Ф95×2 Ф120×2 Ф95×2 Ф120×2 Ф95×2 Ф120×2
Straightener roller (mm*pcs) Ф90×9 Ф120×9 Ф90×9 Ф120×9 Ф90×9 Ф120×9 Ф90×9 Ф120×9 Ф90×9 Ф120×9
Motor (HP) 3 5 5 7.5 7.5
