เครื่องเลเซอร์ตัดโลหะ Hymson : HF · B Series
เครื่องตัดเลเซอร์ไฟเบอร์คุณภาพสูงสำหรับงานตัดแผ่นโลหะ
ขนาดกำลังไฟมีตั้งแต่ 1500-6000วัตต์ พื้นที่การวางชิ้นงานขนาด 3000 x 1500 มม. สามารถตัดชิ้นงานหนาได้สูงสุด 20 มม. (ขึ้นอยู่กับชนิดของโลหะที่ใช้ตัด) ระบบซอร์ฟแวร์ใช้งานง่าย มีหลากหลายฟังชั่นให้เลือกต้องการ อาทิ ฟังก์ชั่นการสลับโหมดการตัดอัตโนมัติและแกะสลัก , ฟังก์ชั่นการทำงานกราฟิก,ความถี่เรียลไทม์และการตั้งความแรงขณะตัดโค้ง,ระบบไลบรารี เป็นต้น
สเปคสินค้า (PDF)ขอใบเสนอราคาDescription
The advantage of laser sheet metal cutter:
● High cutting efficiency, high cost performance and low running cost
● High cutting performance for copper/brass, aluminum, stainless steel and carbon steel
Control system
● Simple and practical:
CYPCUT control system with rich software functions, highly simplified and optimized cutting process, graphic operation, intuitive to use, simple to start, significantly improve the operator’s work efficiency and production efficiency, while shortening the time required for intermediate experts to learn the basic work of the machine. This control system have a positive impact on production costs.
● Widely used:
CYPCUT system is widely used in the laser cutting industry CNC control system and sheet metal processing /3C industry/precision machining occasions now. It’s equipped with many mature, stable and efficient processing applications, which helps to improve efficiency.
1. Cutting Technology of fiber laser cutting machine:
▲ Leapfrog Cutting、Automatic Obstacle Avoidance、Lightning Cutting
▲ Rapid Perforation、Breakpoint Resume、Arbitrary Point Cut-in
▲ Gradual Speed Regulation in Tool Start、Aluminum Alloy Burr-free Cutting (Optional)
▲ Fly-cutting High Speed Cutting
2.Sheet laser Welding Machine Base with Mortise and Tenon Structure
▲ Super rigid machine base proven by coin test.
▲ Utilize state of the art welding technology to form the machine tool base.
▲ Heat treatment to strengthen the intensity and stiffness of base.
Standard industrial machine tool processing procedure:
3.Arbitrary Start Cutting Position
4.Automatic Avoid-obstacle
5. Cnc System
The equipment uses Beckhoff CNC cutting system, equipped with a large screen display, and it’s a professional laser cutting system. Based on Windows operation system, Beckoff integrates a lot of laser cutting modules with special functions. Equipped with a wireless keyboard and mouse, the operation is simple and easy.
In order to facilitate the work of the operator, a space is reserved below the display for storing consumables and professional tools. The console has two USB connectors that can be used to connect removable memory devices such as flash drives to download drawings and programs. In addition, the machine also has a LAN connector for integrating the machine into a common network infrastructure.

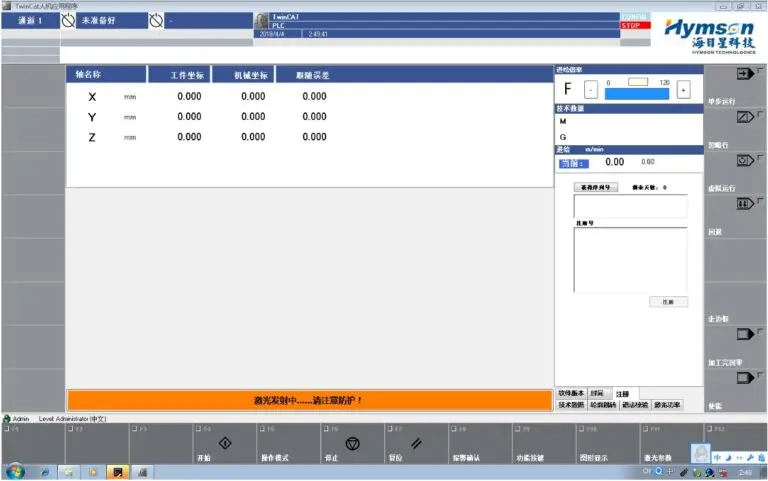

6. Simple Software
The simplicity of TwinCAT software allows you to shorten the basic work of learning machines.The software integrates a variety of laser cutting modules with special functions. The interface is user-friendly and easy to operate. This will have a positive impact on production costs. TwinCAT software also offers free upgrades.
7. Automatic Focus Control
Optical path adaptive system: cutting head has adaptive optical system, the focus is automatically adjusted to ensure that the focal point of the stable switching focus during the cutting process.It is especially important for the cutting of thick plates to ensure the consistency of the cutting quality throughout the processing area.
8.Automatic Height Control
The system is equipped with a non-contact capacitive sensor as standard, which ensures a constant distance between the nozzle and the processing material. Even if the workpiece surface is uneven, it has a perfect processing effect.
The automatic height system implements the following functions
Frog lift. When the material burns, the optical head rises to the jump height set by the operator.As the head is raised, the metal melt does not fall on the nozzle part, and cannot be derived or the whole optical head fails. Cut further from the set distance
Cutting on the fly. This method can significantly reduce the processing time of the plate, because it does not cut every detail individually, but cuts all the outlines into a straight line. The high-speed optical head delivers the entire sheet line by line, cutting out the contours of the corresponding segments. It is particularly time-saving to cut the perforated grid.
9. Control Switch
Including emergency stop, key switch, power switch, etc, convenient to identify, easy to operate.
10.High speed laser scanner system
the positioning speed of this fiber cutting machine up to 140m/min
11. The ideal economic cutting machine tool
It is an economical laser cutting solution for mass plate production, with processing format up to 3m*1.5m, low cost and high benefit.
12. Simple operation and control system
Intelligent CYPCUT control system, easy to operate, practical and efficient
13. Advanced structure design
New and upgraded machine tools, high strength design, high rigid materials to build, long-term stable operation
14. Advanced and efficient exhaust dust removal system
Equipped with intelligent zoning ventilation system, smokeless and dust-free, improve the working environment and ensure the health of operation

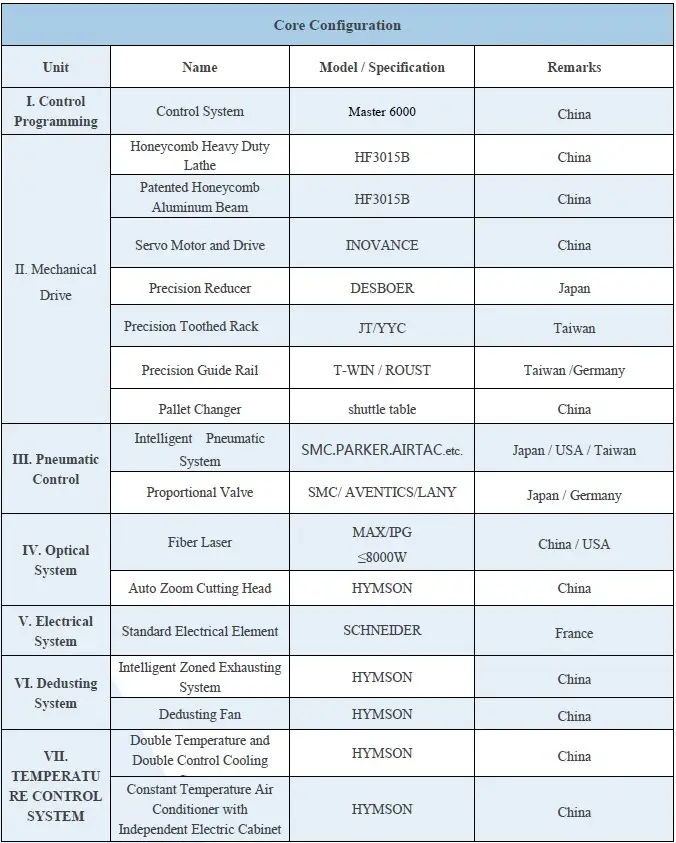

Core Configuration

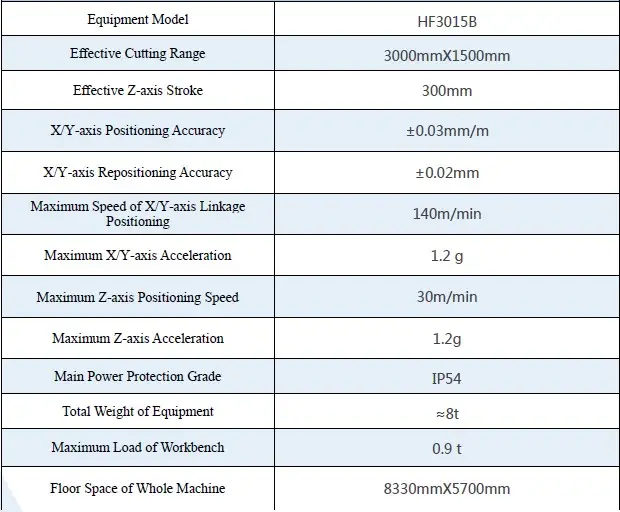

Technical Parameter
Service Team : งานบริการของเรา
-บริการติดตั้งเครื่องพร้อมใช้งาน (Intallation)
-ทดสอบการทำงาน (Testing)
-อบรมการใช้งาน (Teaching)
-งานย้ายเครื่องจักร (Move)
-งานบำรุงรักษาเครื่องจักร (Maintenance)
รายละเอียดเพิ่มเติมผลงานของเรา
