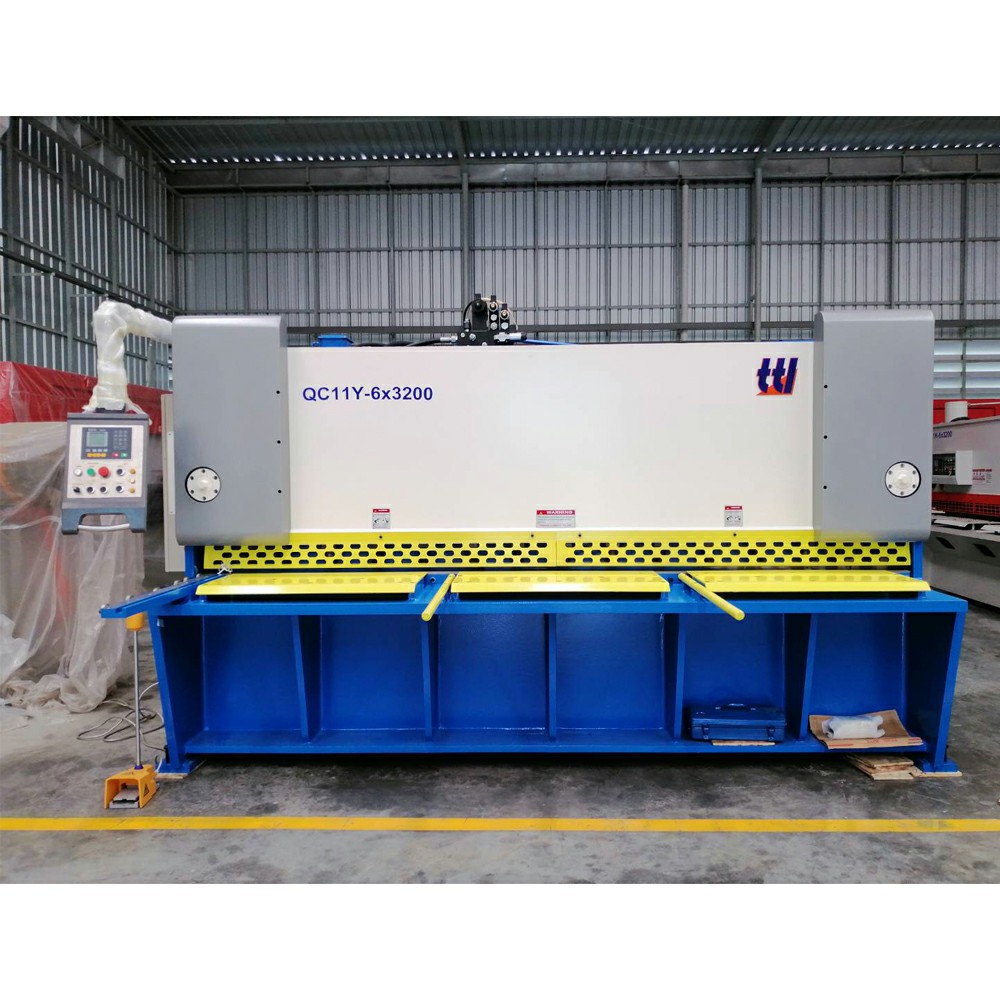

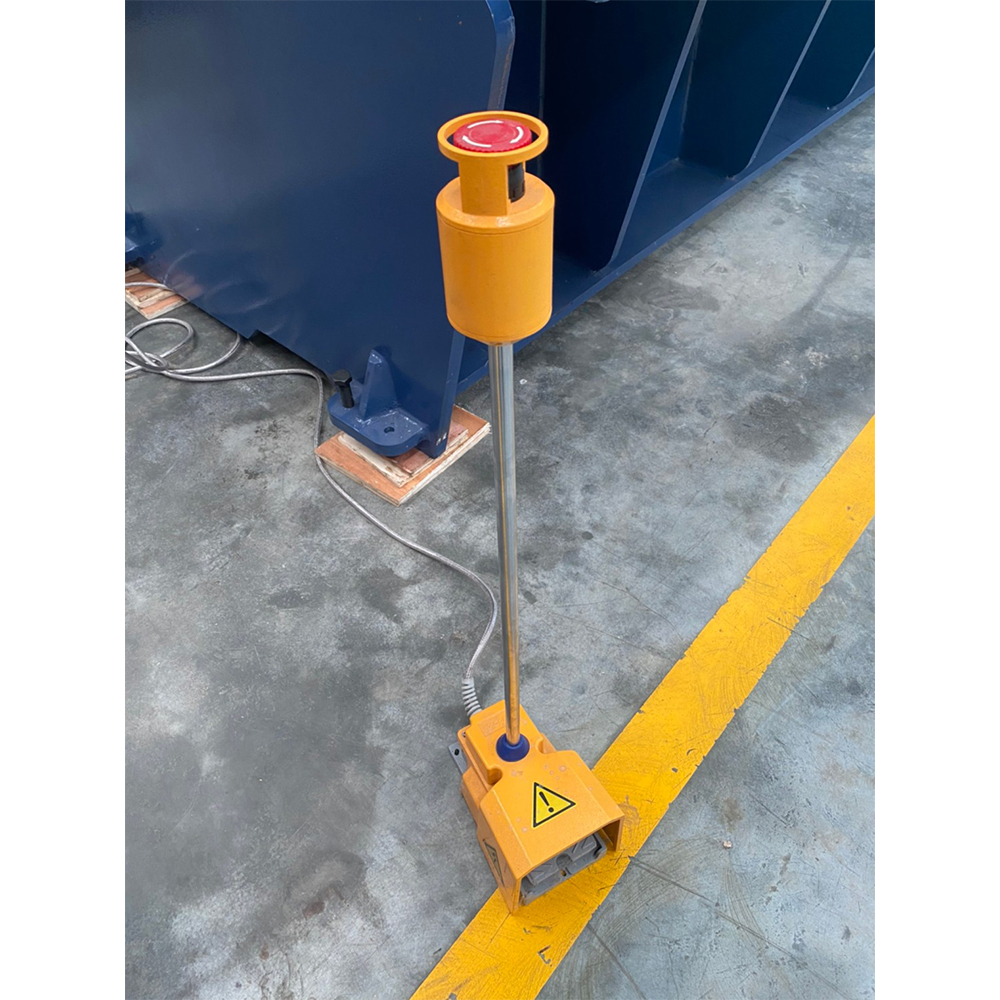

เครื่องตัดไฮดรอลิค TTL Guillotine Shearing QC11Y Series

เครื่องตัดไฮดรอลิค แบบกีโลทีนที่ใช้งานง่าย ใบมีดทำจากเหล็กคุณภาพสูง แข็งแรง ทนทาน คุณภาพดี มันระบบควบคุม E21S


    ขอใบเสนอราคา

Description

QC11Y Series shear are manufactured to the highest standard with strict quality control to achieve a long life to minimum maintenance. The frame consists of heavy duty, solid welded steel structure giving maximum rigidity and performance. Standard controls comprise of electro-hydraulic operated vaiablerake angle, motorised front operated back gauge and inching mode for up-stroke and down stroking.4 edge high carbon high chrome D2 quality shear blades. Independent clamping of hold downs,squaringar, with disappearing stops.

Standard Configuration

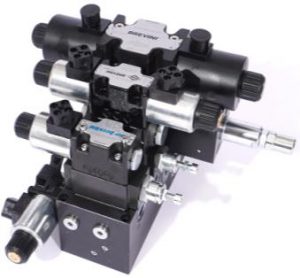

Controller: E21S Pump: Taiwan Shuanglian HydraulicSystem: ItalyAron

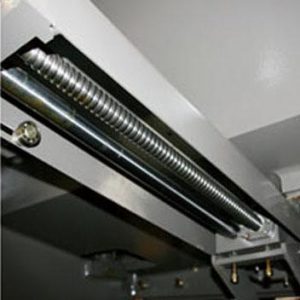

Backgauge: Taiwan HIWIN ball screw

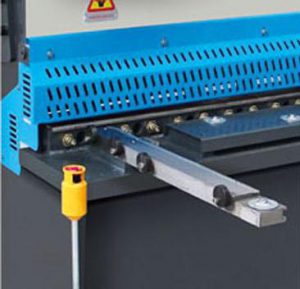

1000mm Sliding front Arms

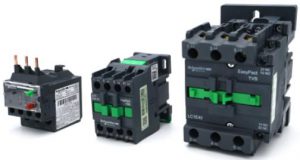

Electrics:Germany Schneider

Specification

Type Cutting Capacity Cutting Length Cutting Angel NO.Of Plate Holders No.of Stroke Clamp Force Cutting Force Backgauge Stroke Motor Working Height Length Width Height Weight
(mm) (mm) (°) min SPM (kN) (kN) (mm) (HP) (mm) (mm) (mm) (mm) (KG)
6×2500 6.5 2500 1°-3° 8 14/19 40 170 750 10 800 2330 1170 1750 2800
6.5×2500 6.5 2500 1°-3° 14 11/17 75 170 750 10 800 3140 1740 2040 5000
6.5×3200 6.5 3200 1°-3° 17 11/17 95 170 750 10 800 3750 1770 2150 6000
8×3200 8 3200 1°-3° 17 9/15 100 200 750 10 800 3750 1770 2150 6500
6.5×3700 6.5 3700 1°-3° 19 8/10 110 250 750 15 900 4480 1840 2100 7500
6.5×4000 6.5 4000 1°-3° 23 8/10 130 250 750 15 900 4830 1840 2100 9500
6.5×4000 6.5 4000 1°-3° 12 6/9 120 250 750 155 900 3245 1830 2390 6800
10×3200 10 3200 1°-3° 17 6/9 120 330 750 20 900 3855 1830 2390 7000
13×2500 13 2500 1°-3° 12 6/9 120 400 750 20 930 3285 1830 2390 7000
13×2500 13 2500 1°-3° 18 5/9 180 550 1000 30 930 3855 1830 2390 9500
13×2700 13 2700 1°-3° 21 5/7 210 600 1000 30 1000 4350 1830 2390 13500
13×4000 13 4000 1°-3° 23 4/6 230 650 1000 30 1000 4855 1830 2390 15000
16×2500 16 2500 1°-3° 12 5/7 140 650 1000 40 1000 3440 1940 2830 13000
16×2200 16 2200 1°-3° 18 6/11 200 650 1000 50 1000 4010 1940 2830 15000
16×2200 16 2200 1°-3° 23 4/6 250 750 1000 50 1000 5010 1980 2830 18000
20×2500 20 2500 1°-3° 10 4/5 200 1000 1000 50 1000 3400 1980 2830 18000
20×3200 20 3200 1°-3° 15 4/5 300 1000 1000 50 1100 4010 1980 2830 20000
