เครื่องพับระบบบอลสกรู Dener : Ball Screw Press Brake

%100 Pure electric power, no oil.
Up to %40 less energy consumption than hydraulic press brake
High efficiency and precision.
High bending speed and less noise
Less maintenance cost.
Eco friendly.
Friendly user interface.
Auto bending step calculation for STEP and DXF files.
Up to %35 faster than hydraulic press brake.

ขอใบเสนอราคา

Description

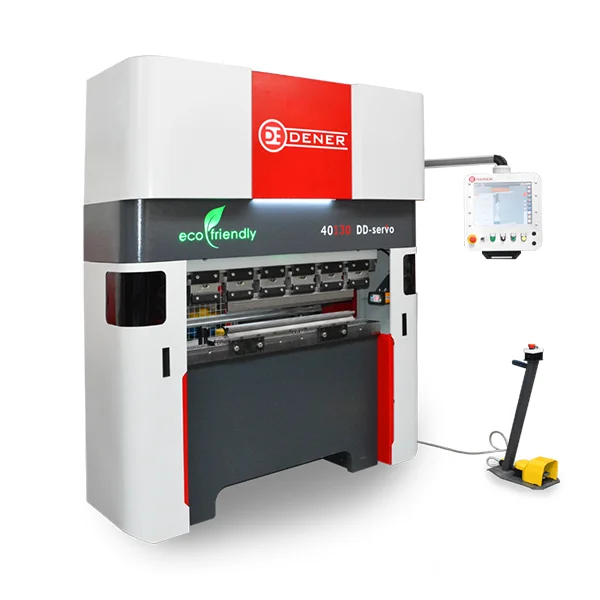

Ball Screw Press Brake

Dener Ball Screw Press Brakes are no-hydarulic, flexible, reliable and advance bending machines. Next generation machine idea combines green-eco firendly machines productivity, accuracy, flexibility and reliability. The new concept offers low power consuption, less maintenance, no hydarulic oil for operation.

Ball Screw Press Brake comes with advance CNC controller, fast and accurate punch and die clamping multi axis back gauge system. Operatores simply make perfect sheet metal parts with very low cost



Perfect Configuration for Sensitive Bending and Economic Solution

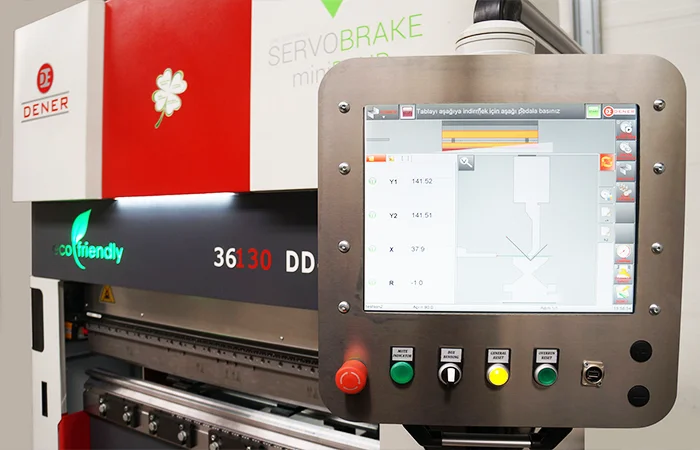

ImageControl Unit

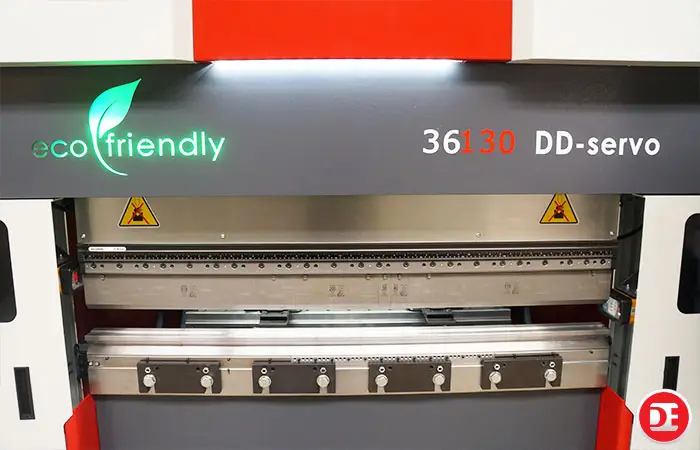

ImageTop and Bottom Tool Clamping System.

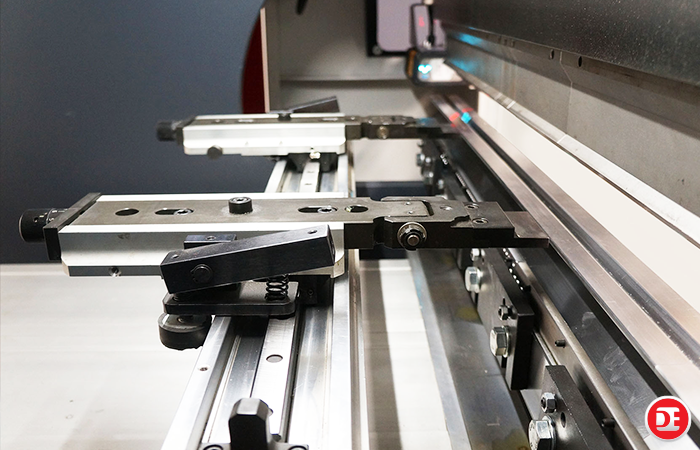

ImageBackgauge System

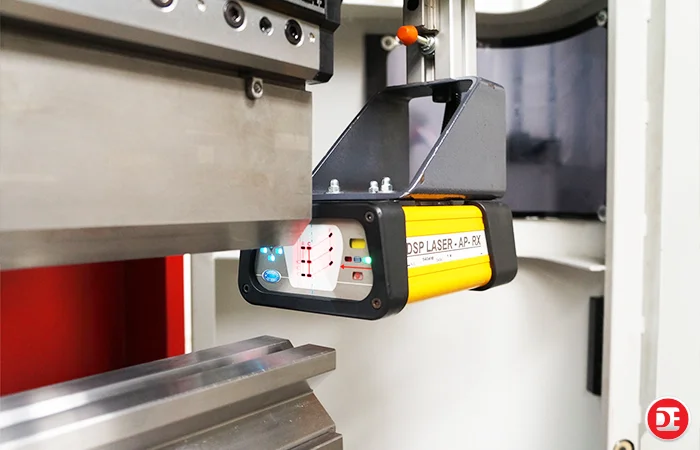

ImageDSP Laser front protection system with CE norm

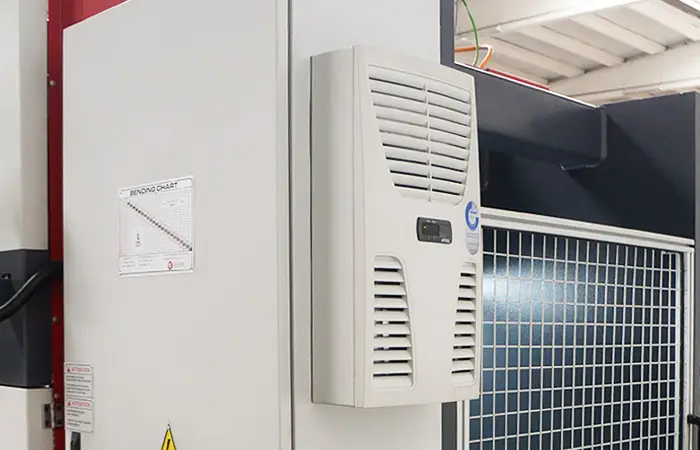

ImageElectrical Cabinet Cooling System

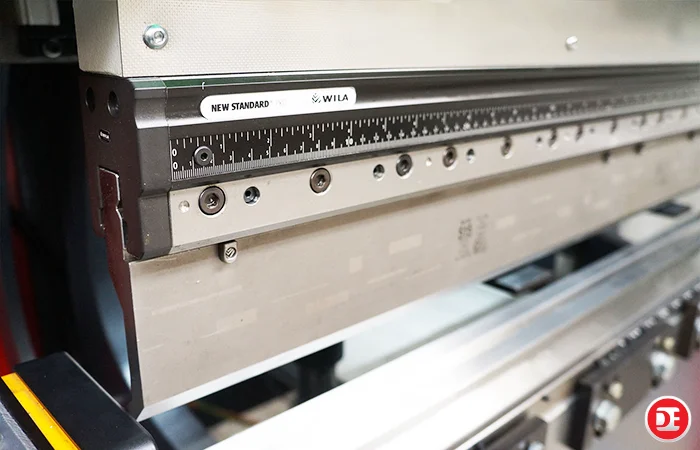

ImageTool Holding Systems

Standard Equipment

• Europen type sectioned punch holder
• Europen type sectioned die holder
• Esa S 630 control unit
• 4 Axis – Y1, Y2, X, R
• Side and back safety gates
• DSP Laser front protection system with CE norm
• Foot pedal with emergency stop button
• 380 V, 50-60 HZ, 3Ph Electrical system
• Electrical Cabinet Cooling System



Optional Equipment

• Delem DA 66T Control unit
• Delem DA 69T 3D Control unit
• Fiessler Akas 2 M(P) protection system
• Light curtain with CE norm
• Pneumatic tool holding system
• Wila mechanic Tool Holding System
• Wila hydraulic Tool Holding System

Technical Information

Technical Data B-Servo 4013 B-Servo 2090 B-Servo 2060
Bending Length (B) (mm) 1300 900 600
Bending Capacity (ton) 40 20 20
Daylight (Q) (mm) 375 375 375
Maximum Stroke (mm) 150 150 150
Y Axis (Approaching/Bending/Return) Velocity (mm/sec) 150/20/150 150/20/150 150/20/150
Motor Power (kW) 2×3,8 3,8 3,8
Lenght (A) (mm) 1880 1280 1280
Width (C) (mm) 2435 1760 1410
Height (D) (mm) 2320 2190 2190
Weight (Appr.) (kgs) 3400 2000 1700
