เครื่องเร้าเตอร์แกะสลัก รุ่น LR Series

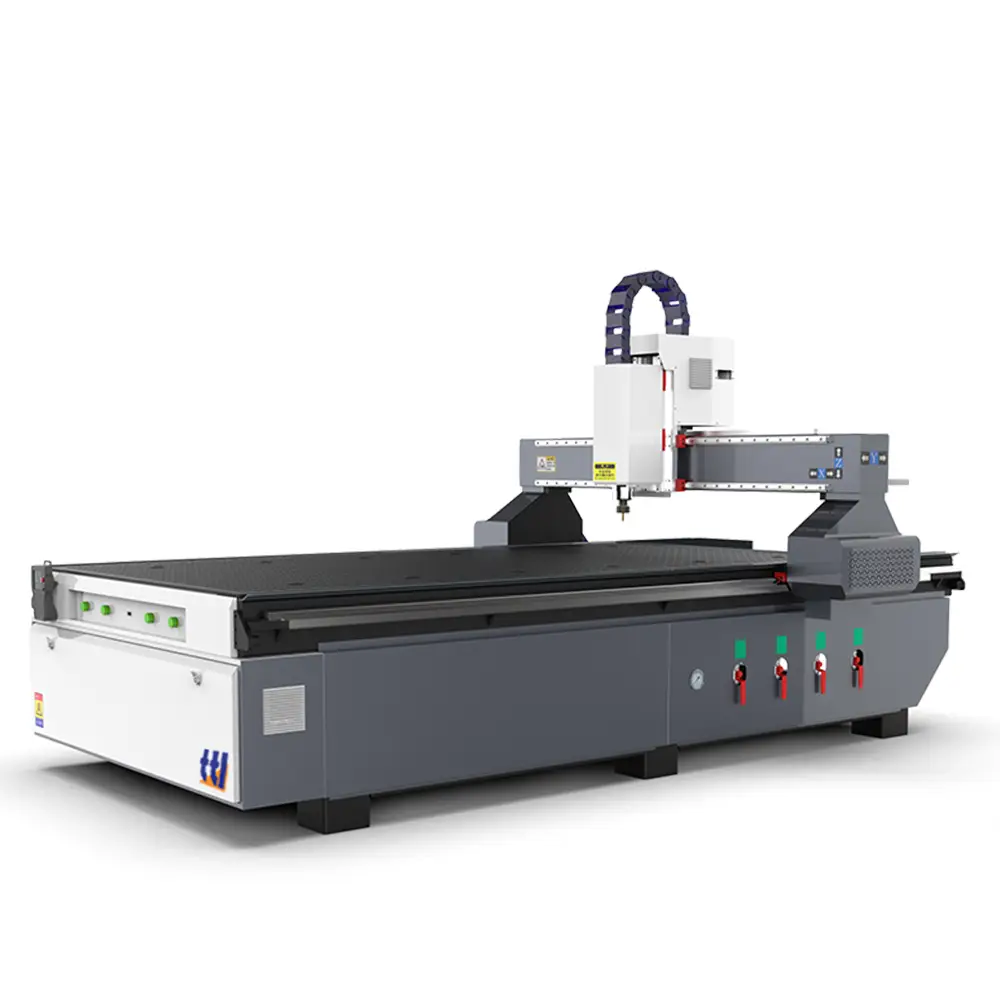

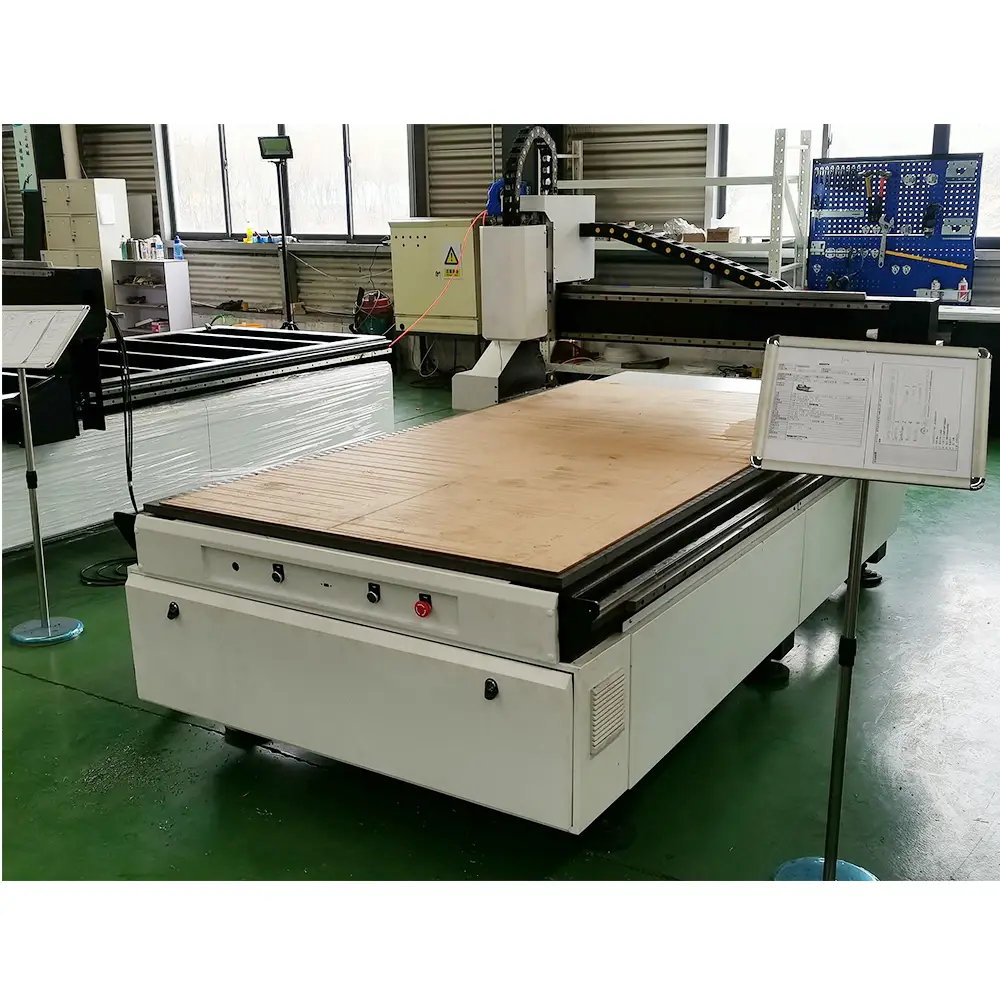

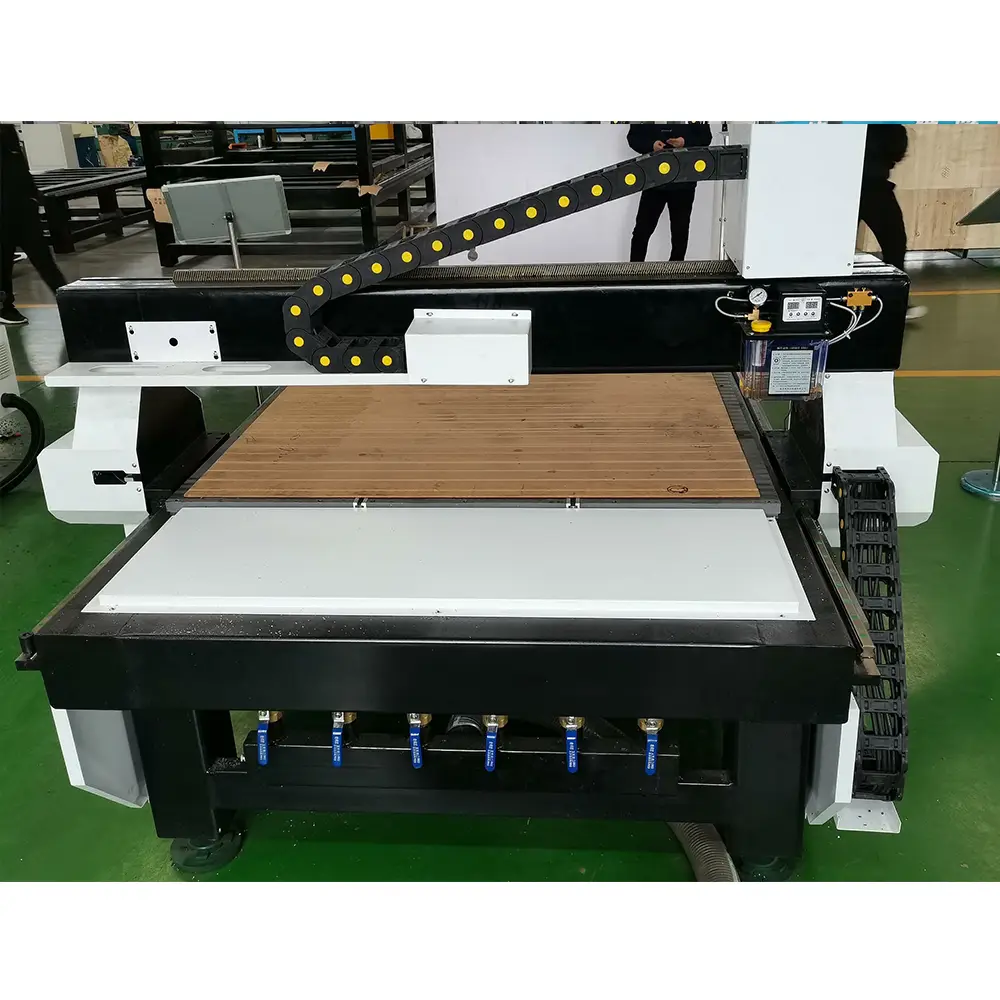

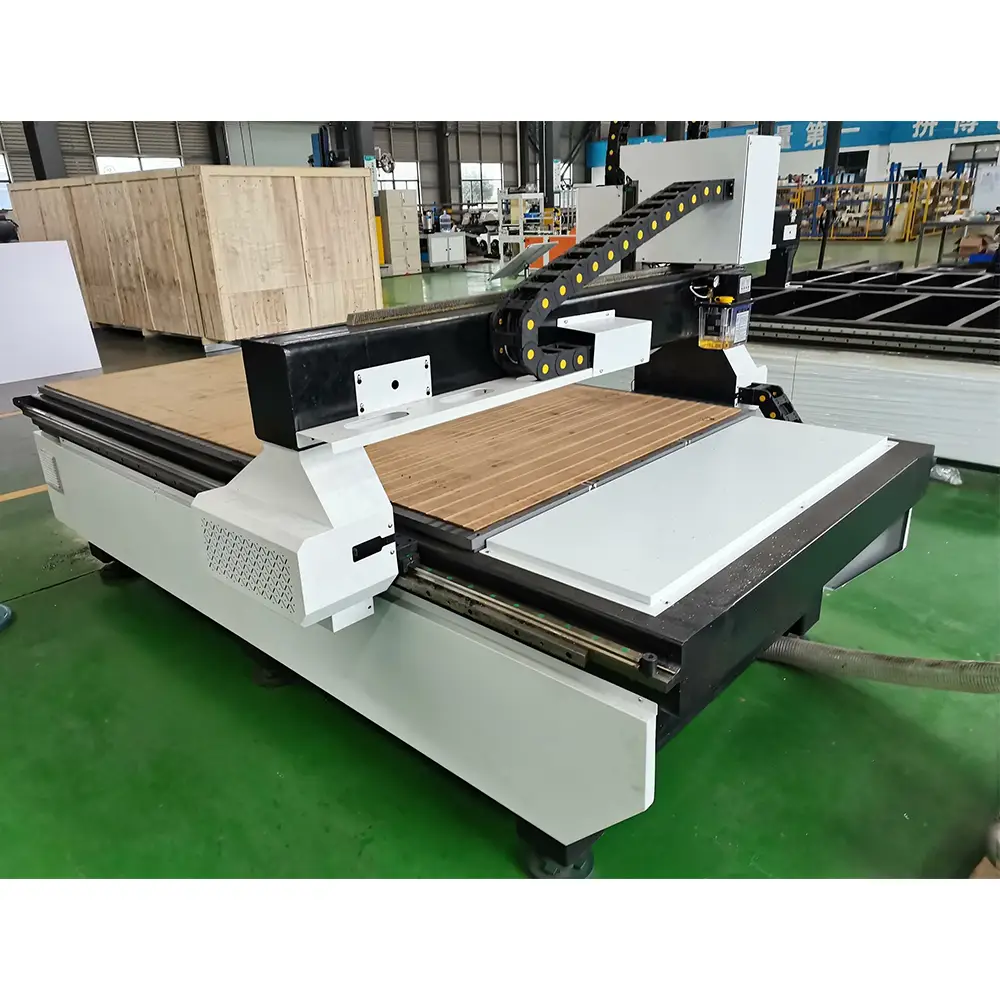

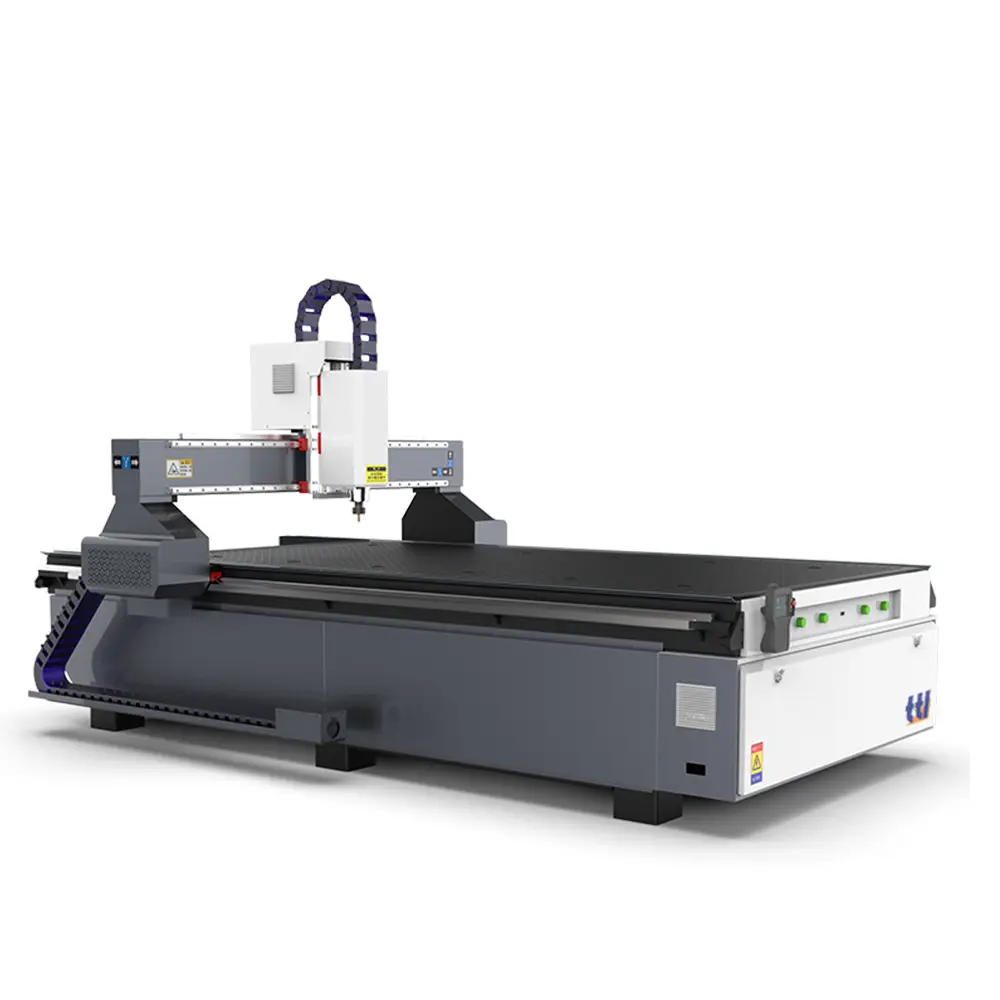

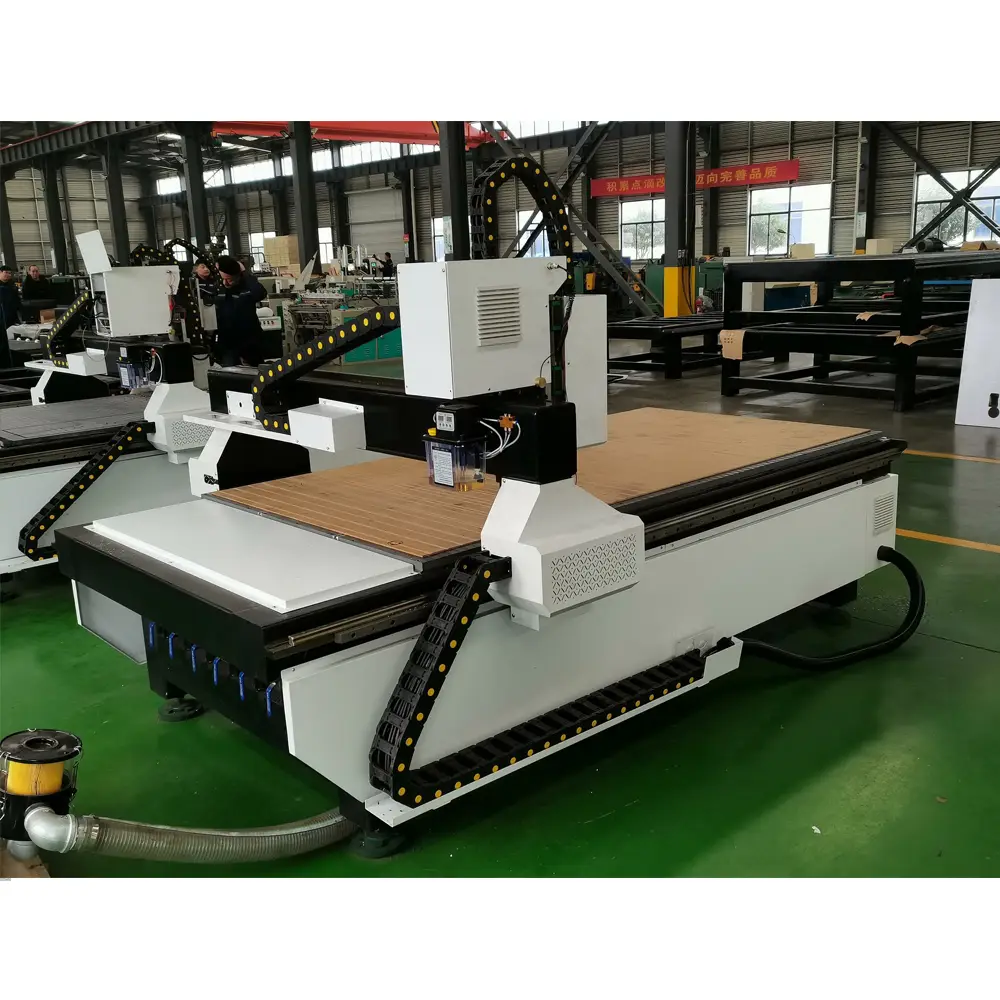

เครื่องเร้าเตอร์CNC รุ่น LR Series (CNC Router Machine) ควบคุมด้วยระบบ CNC มีแรงขับสูงด้วยหัว Spindle ขนาด 3 ~ 7.5 KW เหมาะสำหรับงานการตัดและแกะสลักวัสดุจำพวก ไม้ อลูมิเนียม โฟม  โดยมีให้เลือกหลายขนาดตามความเหมาะสม เช่น 1300*2500มม. , 1500*3000มม. , 2000*4000มม. เป็นต้น

    ขอใบเสนอราคา

Discription

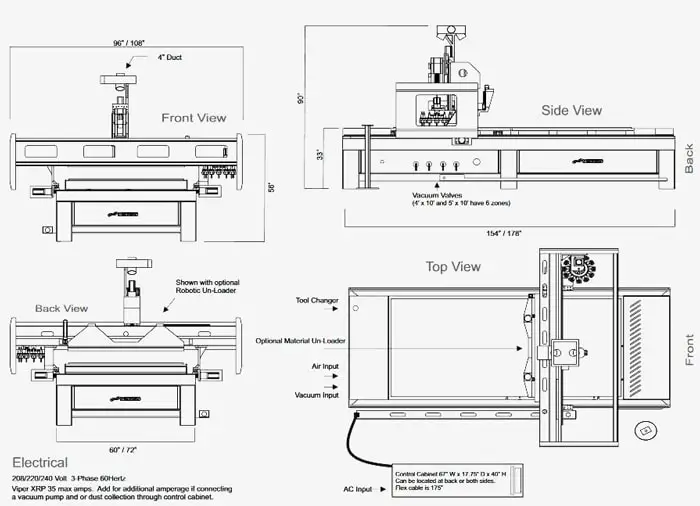

Biggest CNC Router OEM supplier

We can design, produce accessories, produce complete machine, have professional workers to provide you with the best OEM production.

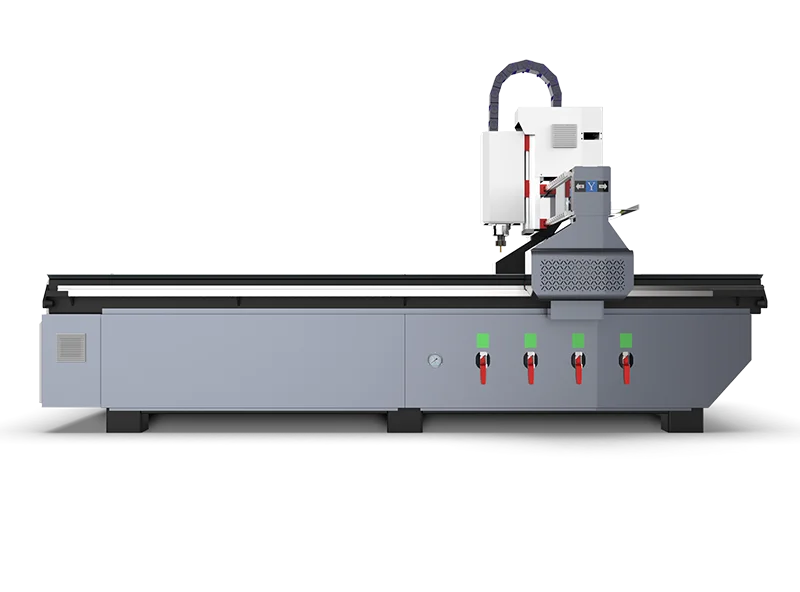

Most values

The lowest price, the most reasonable configuration. It is the best choice for cutting and engraving wood materials. And a variety of sizes available.





Choose the most familiar system

RichAuto/NC-Studo/Mach3/DSP…all available.We have rich experience in using all the world’s mainstream control systems





Motor & Drive

Leadshine stepper / Yaskawa/Delta / Panasonic / Fuji

According to machining accuracy requirements multiple brands available





DIY your size

We can make the size you want according to your needs. from 600*600mm to 2100*6000mm,As long as it can be put into the container.







What materials can be processed ?

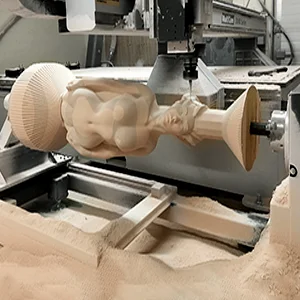

UPGRADES
CNC router Machine upgrades,makes your machine more powerful.







Specification

Model No. LR-1325E LR-1530E LR-2040E Customized
  Working size   1300*2500mm   1500*3000mm   2000*4000mm
  Z-axis clearance   200mm
  Repeatability   ±0.03mm ×
  Drive system X and Y-axis   Helical rack and pinon ×
  Drive system Z-axis   ball screw ×
  Guide rails   20/25mm linear ball-bearing profile rails(HIWIN/PMI/THK)
  Motor & drive   Leadshine stepper motor/YASKAWA(DELTA/FUJI)servo motor
  Spindle   3KW~7.5KW
