Description

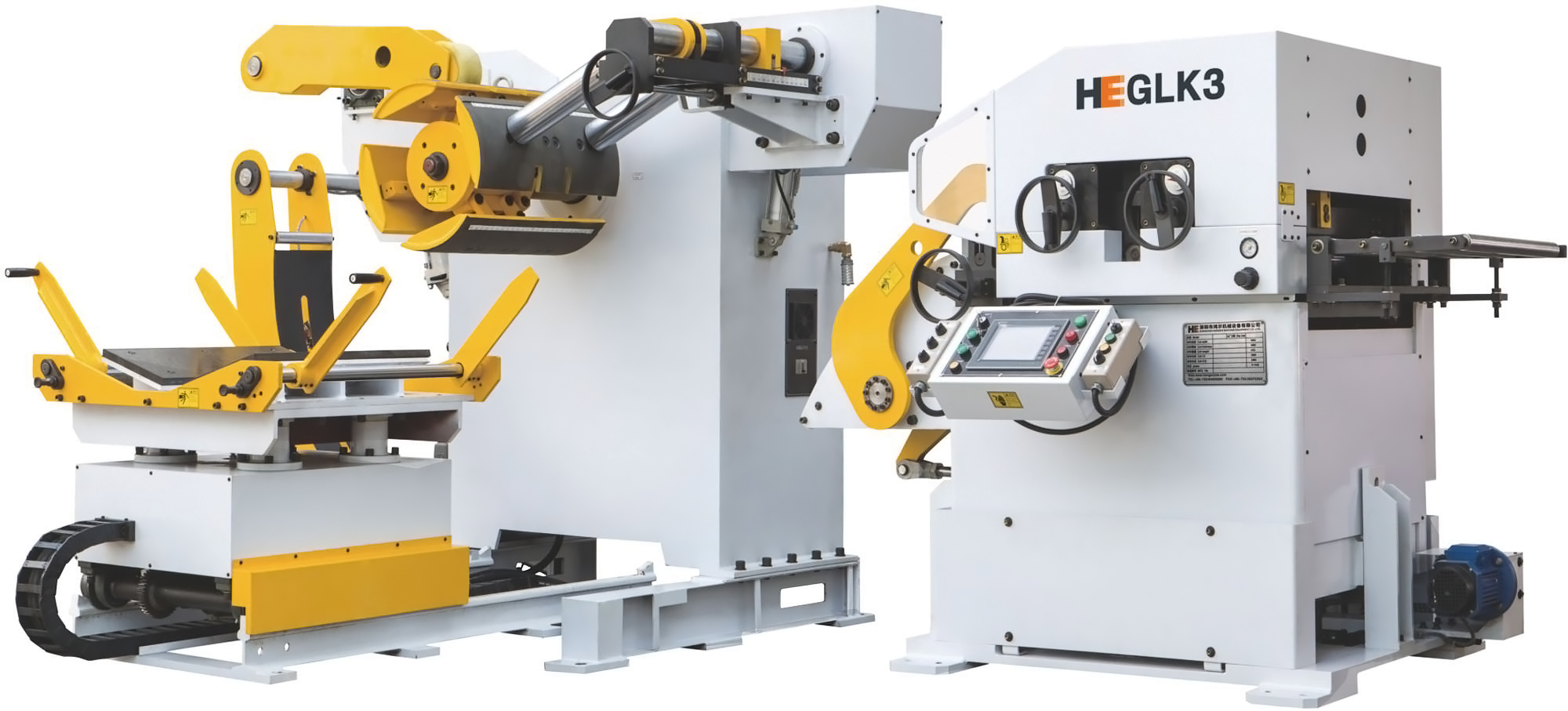

GLK3 Combined Decoiler Straightener Feeder 3 in 1
เครื่องคลายม้วน ดัดเรียบ ป้อนโลหะ 3 in 1 รุ่น GLK3
Capacities
Coil width from 70mm to 1300mm
Material thickness from 0.5mm to 4.5mm
Coil weights up to 10Tons
Line speed can reach 20m/min
Feeding Length: Max. 9999.99mm
Feeding Precision±0.1mm
Suitable for CRS, HRS, stainless, aluminum, copper etc.
Standard Features
- Motorized Decoiler
- Hydraulic coil car
- Variable speed operations
- Hydraulic mandrel expansion
- Pneumatic disk brakes
- Pneumatic pressing arm
- Hands-free input supporting
- A frame for locating the coil
- Electric eye type loop control
- 7 pcs straightener rolls
- Worm gear adjustment of upper rolls
- Servo-driven feeder-straightener
Options
- Automatic oiling unit
- Special expansion range
