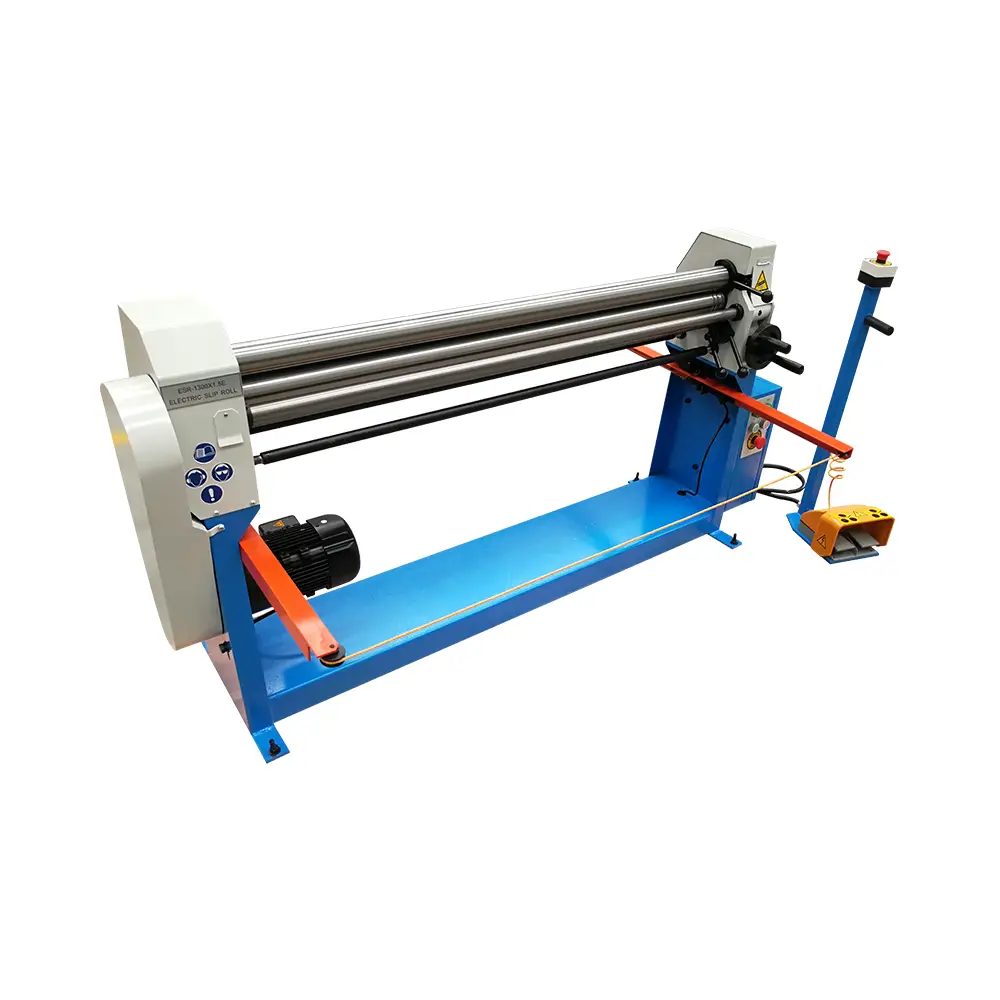

เครื่องม้วนระบบไฟฟ้า รุ่น ESR-1300×1.5E

เป็นเครื่องม้วนไฟฟ้าแบบ 3 ลูกกลิ้ง สามารถม้วน แผ่นโลหะทุกชนิด เช่น เหล็ก สังกะสี อลูมิเนียม สแตนเลส ทองแดง สามารถปรับระบบดันลูกกลิ้งล่างและหลังให้ไม่สมดุลได้ มีปุ่มกดฉุกเฉินและเซฟตี้สวิตช์รอบตัวเครื่อง

Description

     – Asymmetric roll bending machine with 3 roll
     – High strength steel rolls
     – Fixed top roller,adiustable lower and rear rollers
     – Standard series wire core groove
     – Top roll swing out across cam lock
     – Supplied with conical bending feature
     – Handwheel adjustment back roller instead of two bolts
     – Fast adjustment lower roller



Specification

Item No. Model Max Thickness (mm) Max Width (mm) Dia. of roll (mm) Motor (kW) Packing size (mm) N.W./G.W. (kg)
391101 ESR-1300×1.5 1.5 1300 75 1.1kW/1PH 0.75kW/3PH 179x59x110 300/357
391103 ESR-1300×1.5E 1.5 1300 60 1.1kW/1PH 0.75kW/3PH 179x55x108 275/335
