เครื่องคลายม้วน รุ่น FU

Description

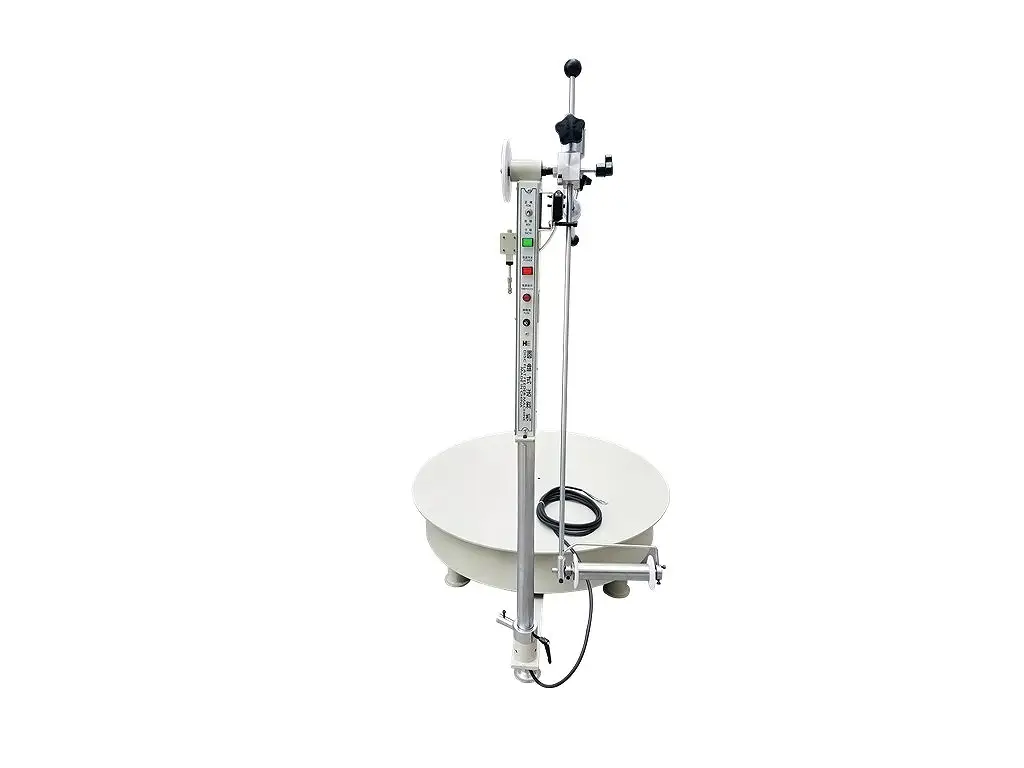

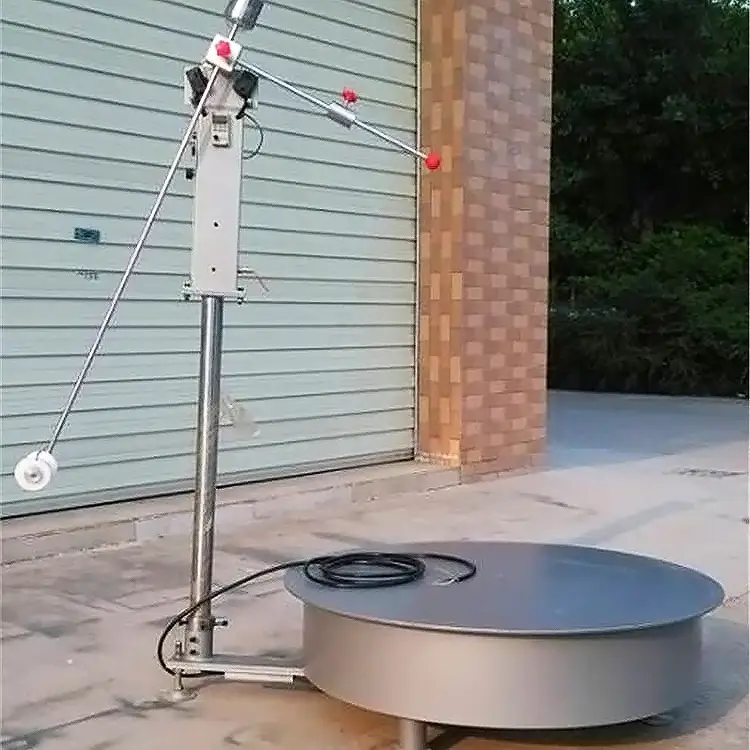

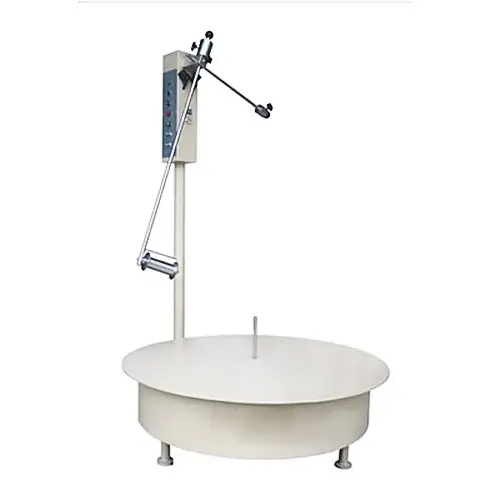

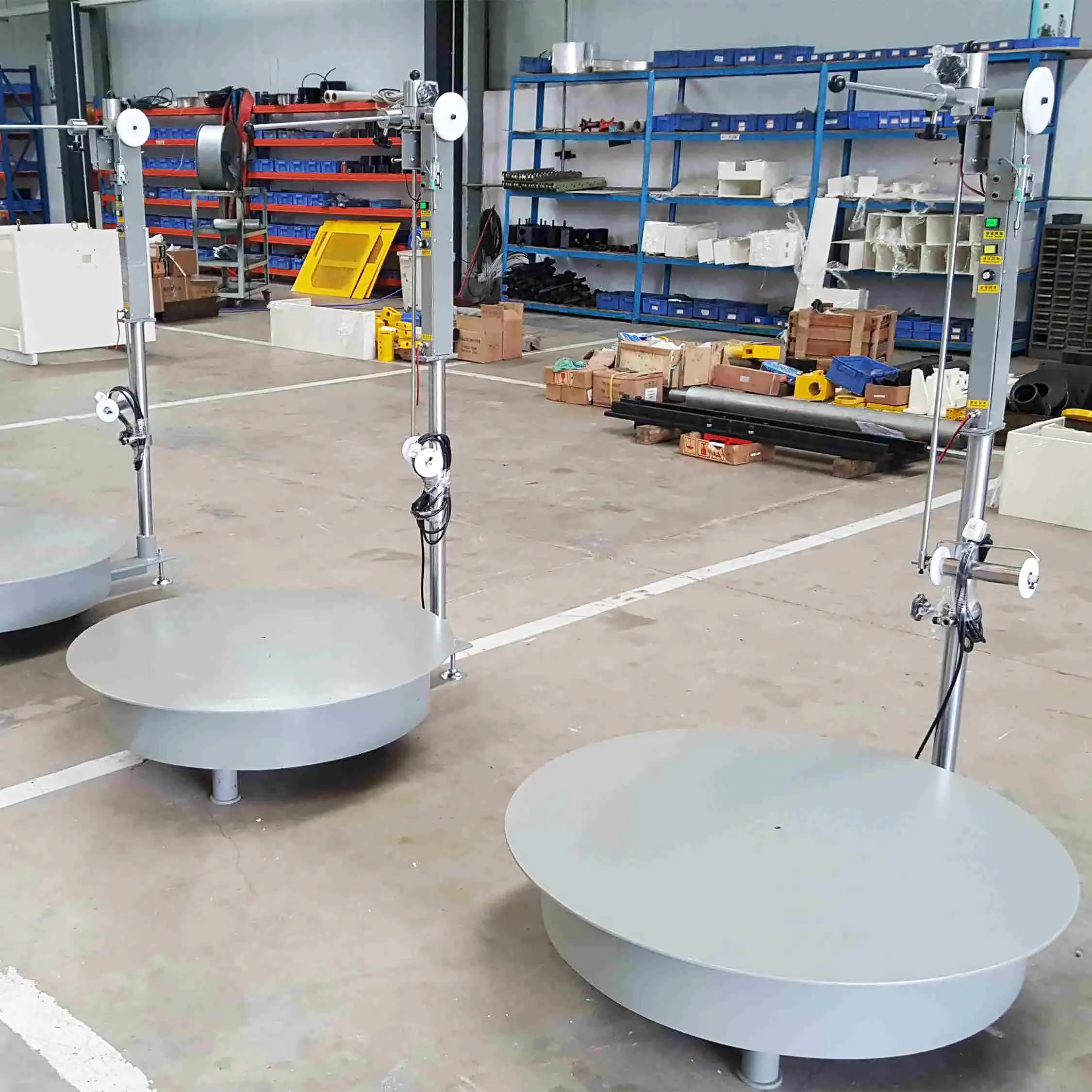

FU PALLET DECOILER

FU is HongEr pallet decoiler, ideal for high speed stamping line, such as terminal stamping, metal button and small electrical parts pressing line.

The feeding speed can reach 24m per min.
It can stock 4pcs of 150mm width coil at one time, and suitable for all kind of coil inner diameter.

Specification

Model
FU-500
FU-1000
FU-2000
Coil width(mm)
100
120
150
Coil thickness(mm)
1.0
1.0
1.2
Load weight(kg)
500
1000
1000
Load height(mm)
600
600
600
Coil outer diameter(mm)
800
800
1000
Feeding speed(m/min)
0-24m/min
0-24m/min
0-24m/min
Motor(HP)
0.5 HP
0.5 HP
1 HP
Inverter
No
Delta, Taiwan
