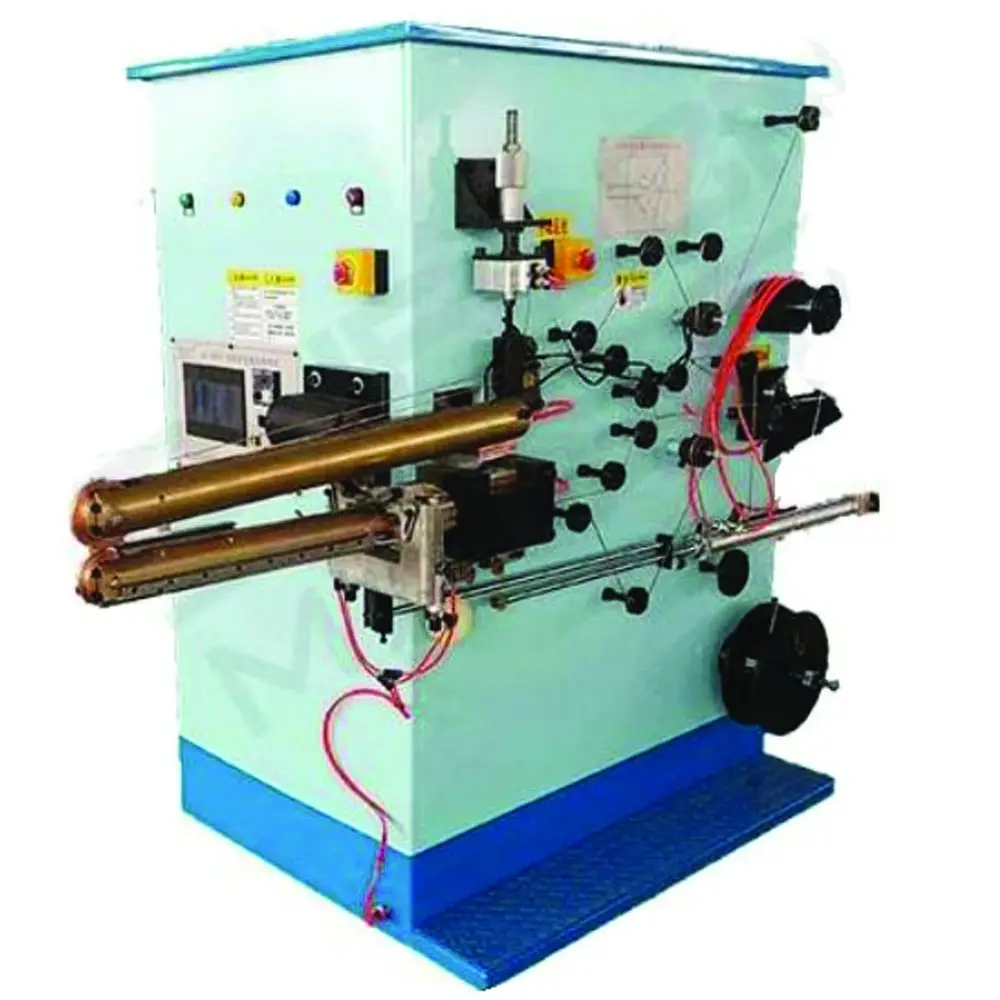

เครื่องอาร์คแบบเย็บ Stitch Welder : HS-500/Pneumatic

เครื่องอาร์คแบบเย็บ Stitch Welder : HS-500/Pneumatic ประสิทธิภาพสูง ทำงานไว ทนทาน ราคาย่อมเยาว์ใช้งานง่าย สามารถเชื่อมจุด เย็บตะเข็บโลหะได้อย่างรวดเร็ว
    ขอใบเสนอราคา

Description

เครื่องอาร์คแบบเย็บ Stitch Welder : HS-500/Pneumatic

ประสิทธิภาพสูง ทำงานไว ทนทาน ราคาย่อมเยาว์ใช้งานง่าย สามารถเชื่อมจุด เย็บตะเข็บโลหะได้อย่างรวดเร็ว

Specification


  1. Power input voltage: three-phase 380V ± 10%
  1. Rated welding capacity : 40KVA
  1. Rated load duration: 40%
  1. Wire feeding speed: 0–12 m/min
  1. Wire diameter range: Φ3.0 mm
  1. Secondary output voltage: 6–3.2 V (when the controller energy is maximum)
  1. Secondary voltage regulation series: 6
  1. Minimum diameter of welded workpiece: 100 mm
  1. Maximum length of welded workpiece: 500 mm
  1. Welding workpiece material thickness range: cold rolled steel plate δ0.5-1.0mm
  1. Motor speed control mode: AC electromagnetic motor
  1. Dimensions : 2200*1100*1600 mm.
