Description

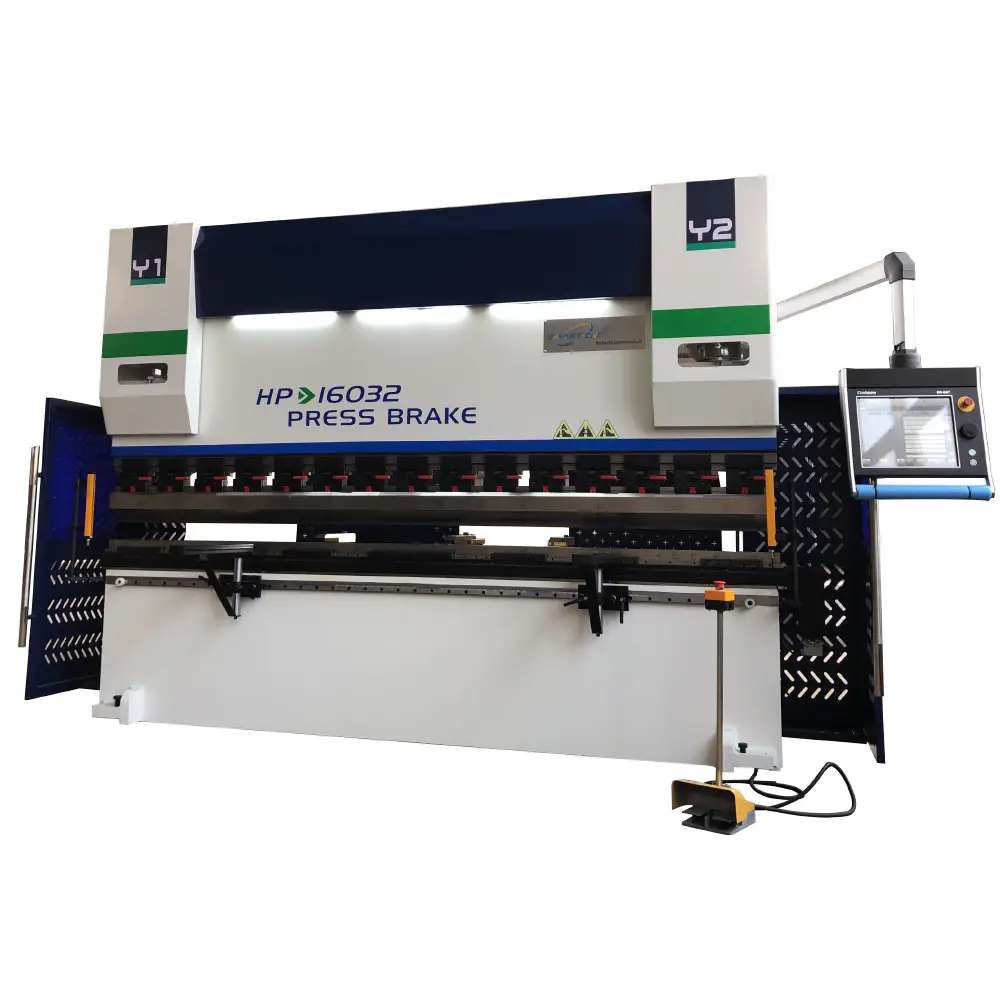

เครื่องพับไฮดรอลิค CNC รุ่น PB6 (4+1 axis) DA53T
เป็นเครื่องพับคุณภาพดีเหมาะสำหรับงานหนักใช้งานง่าย ทนทาน โครงสร้างแข็งแรง
CNC Electric-hydraulic proportion press brake configuration :

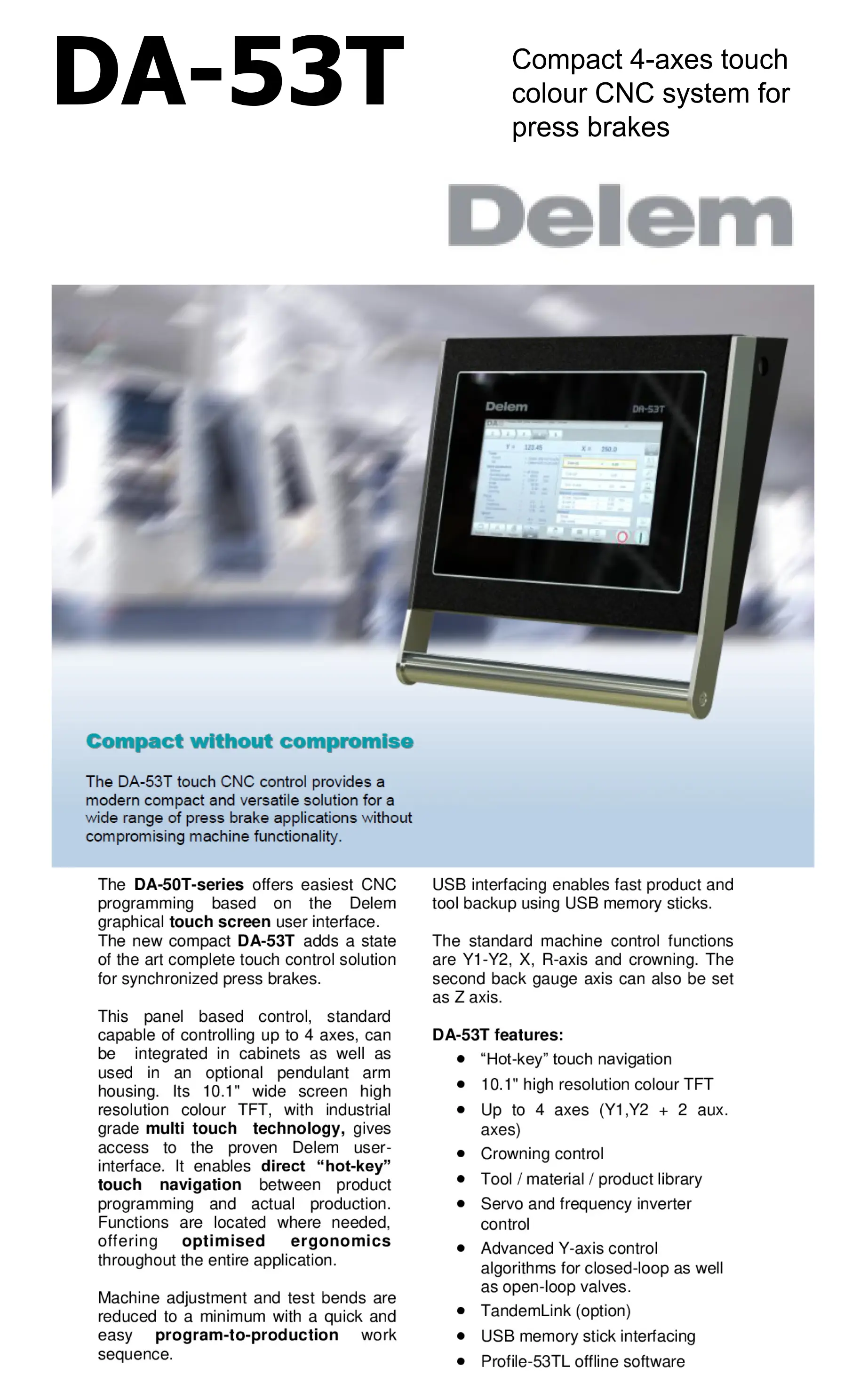

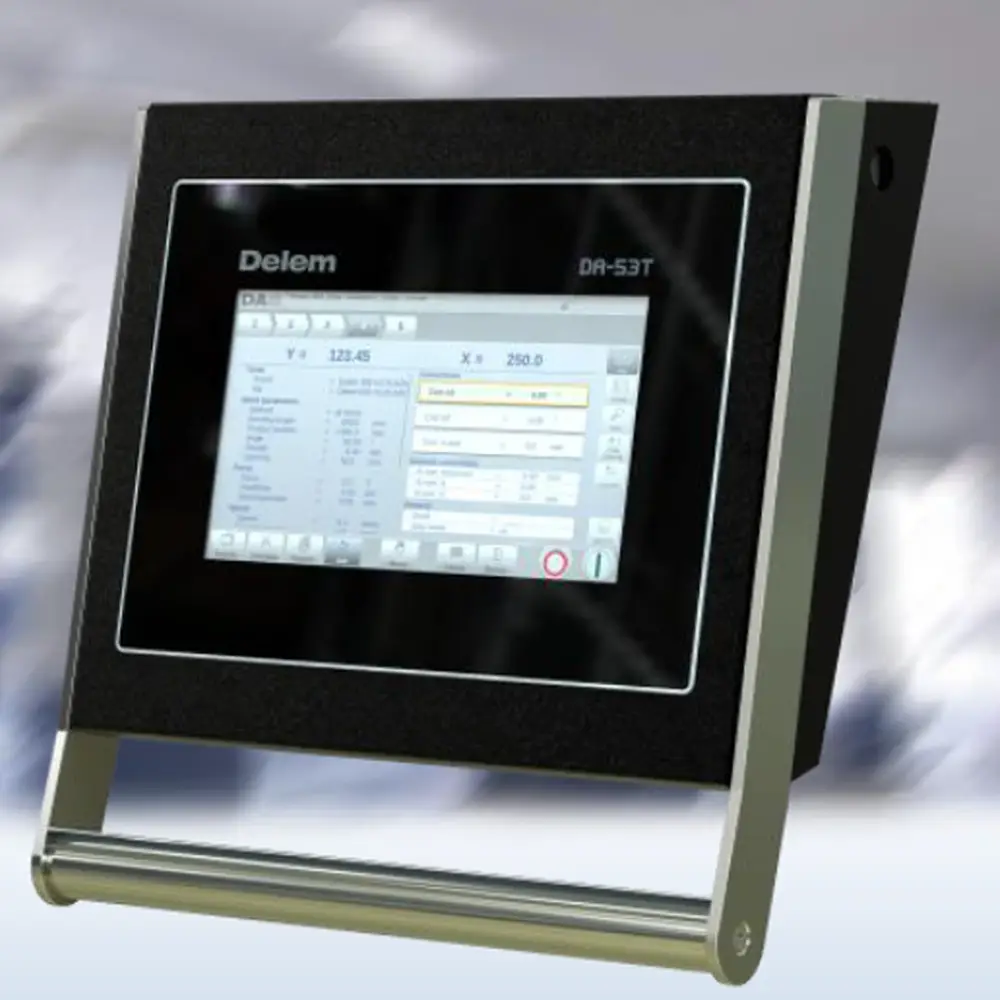

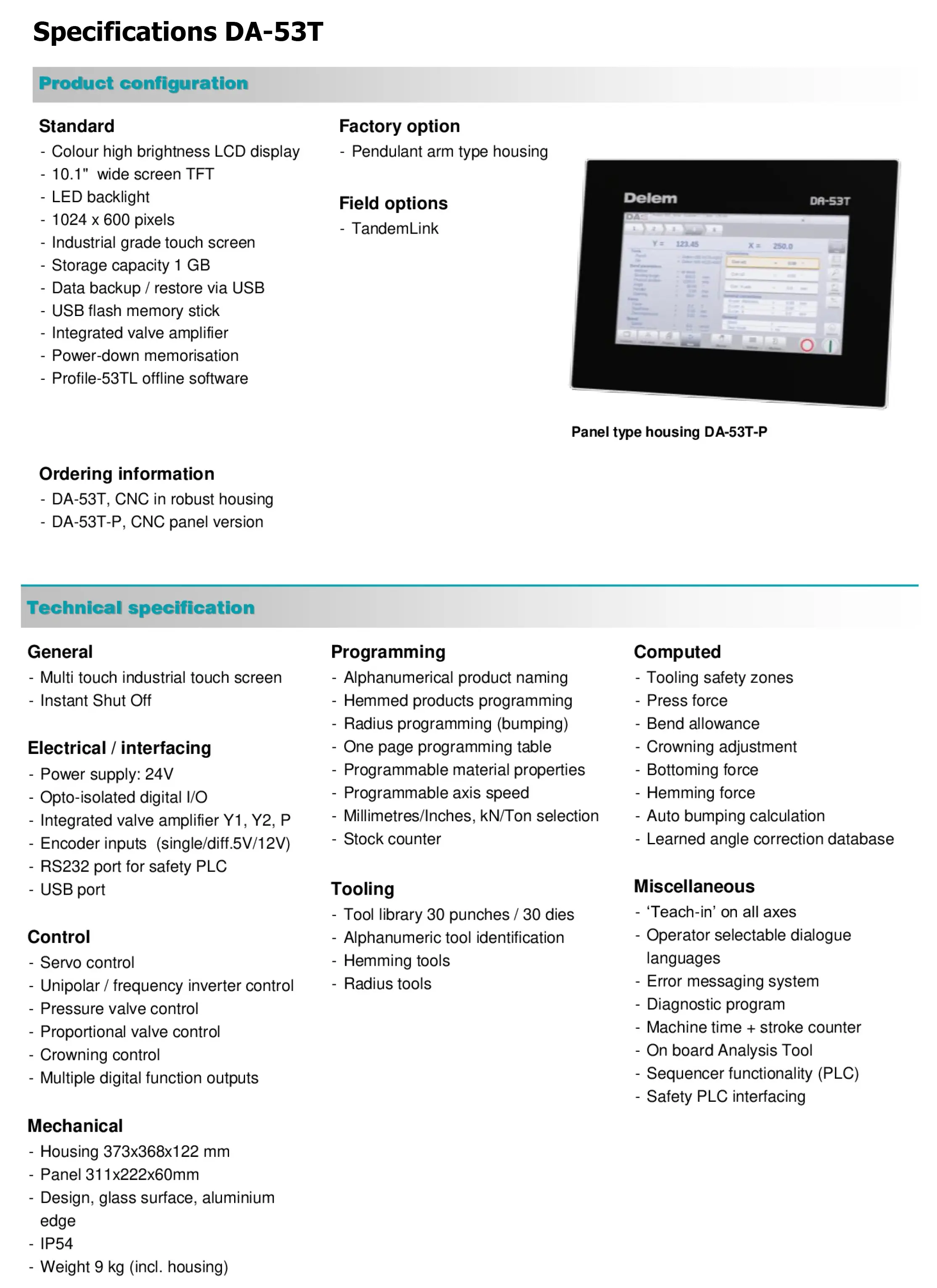

- CNC system: Holland DA53T control 4+1 axes(Y1,Y2,X,R+ V crowning)
- Hydraulic system:Original Rexroth Germany.
- Grating ruler:GIVI,Italy.
- Pump:SUNNY
- Electrical element:Schneider.
- Servo motor and driver: INOVANCE/ ESTUN
- Toolings:upper tools fast clamping and with compensate, lower tool with 2 V or 1V. Segmented tools according to your requirement.
- CNC system: Holland DA53T control 4+1 axes(Y1,Y2,X,R+ V crowning)
- Hydraulic system:Original Rexroth Germany.
- Grating ruler:GIVI,Italy.
- Pump:SUNNY
- Electrical element:Schneider.
- Servo motor and driver: INOVANCE/ ESTUN
- Toolings:upper tools fast clamping and with compensate, lower tool with 2 V or 1V. Segmented tools according to your requirement.
- Seal ring: NOK,Japan.
- Lower-table mechanical crowning mechanism by CNC controlled

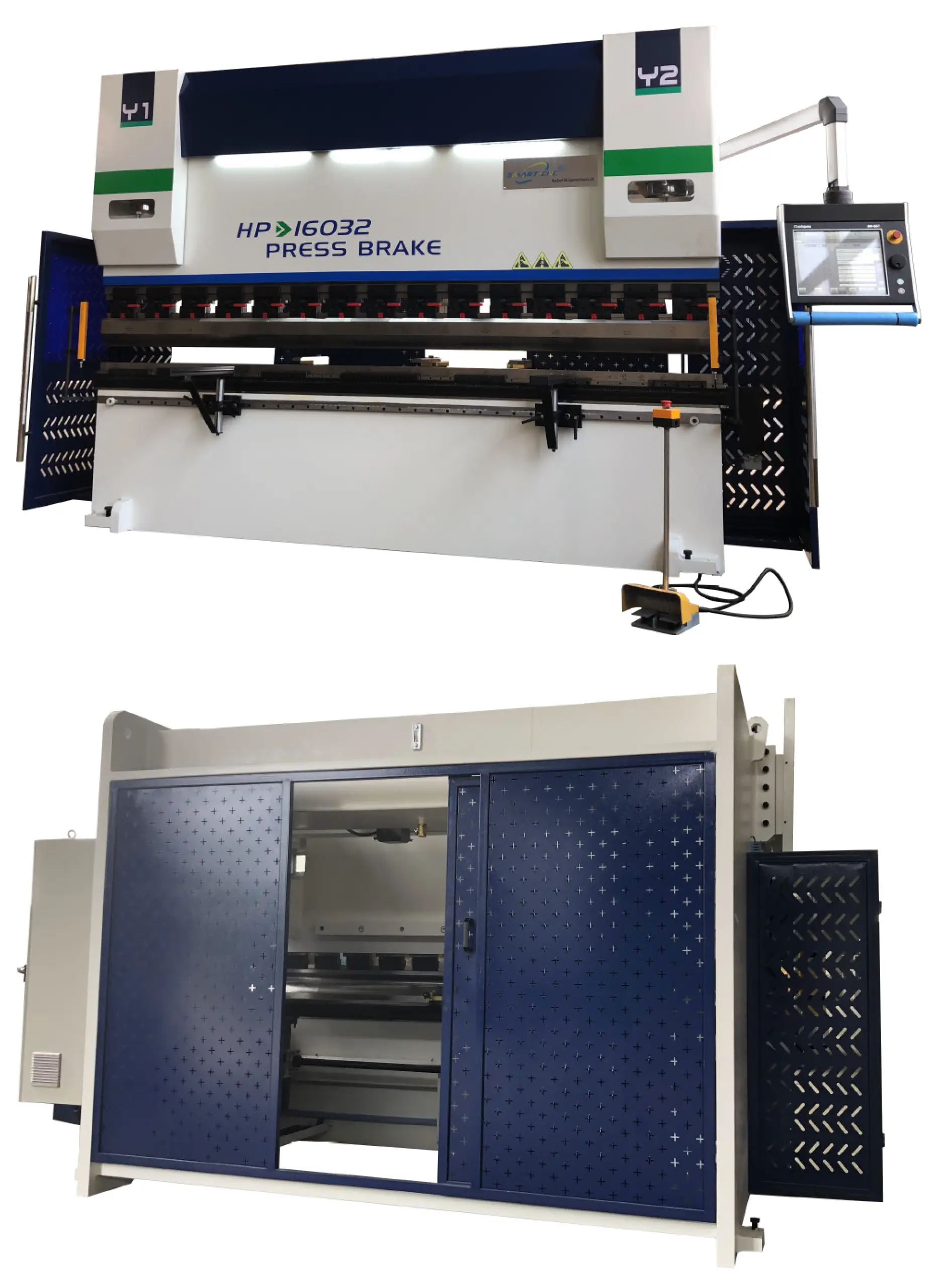

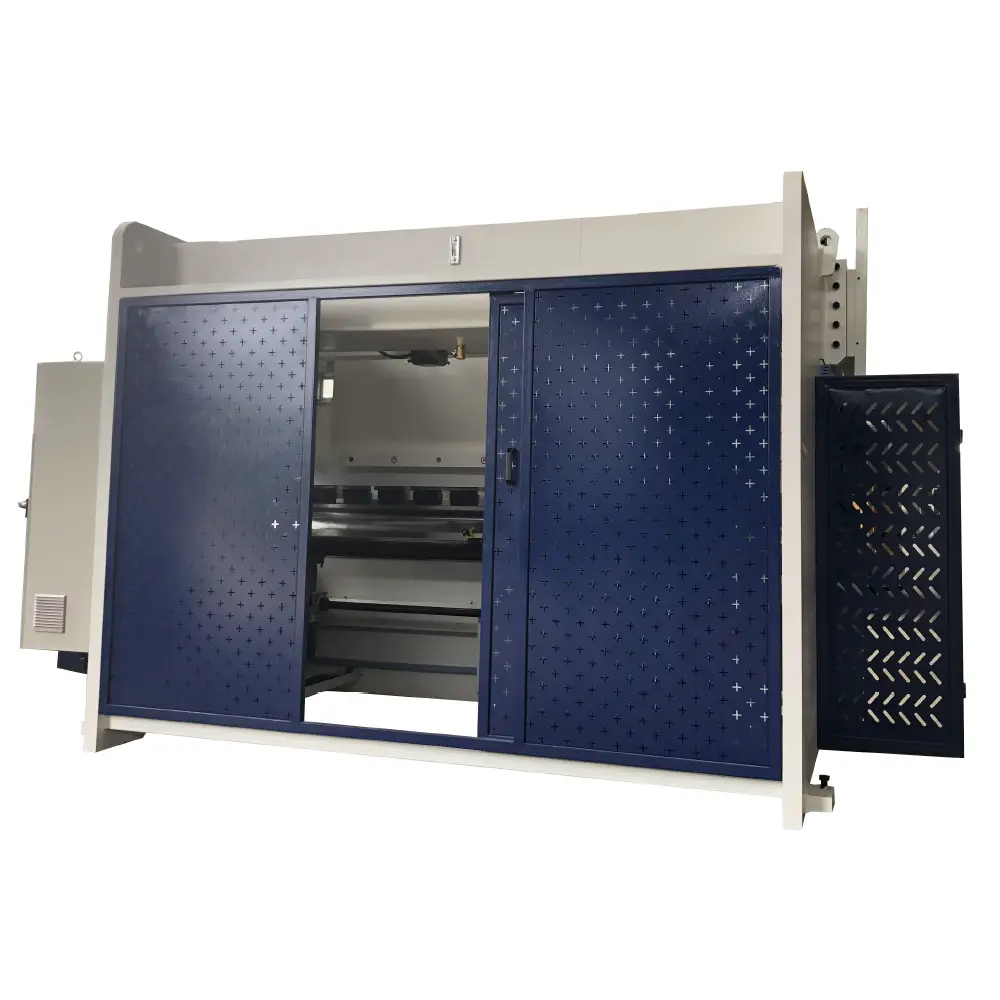

- With safety side doors and back doors.
- Hydraulic system with security valve, with spool position and manometer
- With All Security equipment monitored.
- Optional With the laser safety device.
Machine features
- Machine adopt wholly welding structure, the main parts annealing treatment, releasing internal stress.
- The frame and ram are processed at one time completely by heavy duty boring and milling machine.
- Big daylight, high ram speed
- Ram with fast clamping for up tooling, hydraulic crowning device on working table

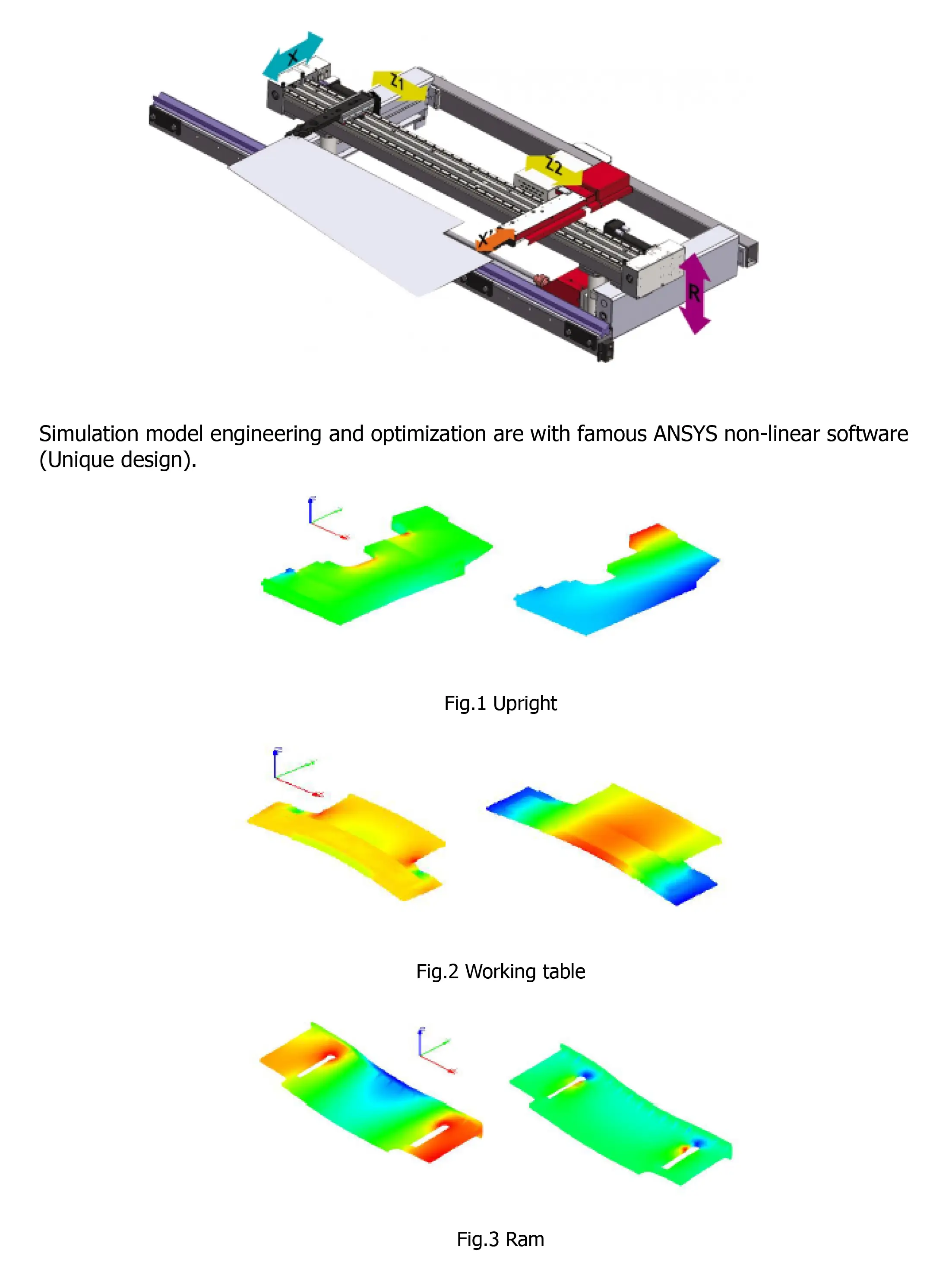

- Advanced wholly back gauge, X axis, R axis, with high speed, high precision.
- Standard configuration DA53T from Holland.
- Hydraulic system adopts Germany electric- hydraulic proportional system.
CNC axis function
- Y（Y1、Y2）axis: ram synchronous control axis, controlling bending depth and angle control.
- X（X1、X2）axis: Control for back gauge front-back stroke, using controlling bending flange size
- R axis: Control for back gauge beam up-down
- Z axis: Controlled back gauge finger left-right movement.

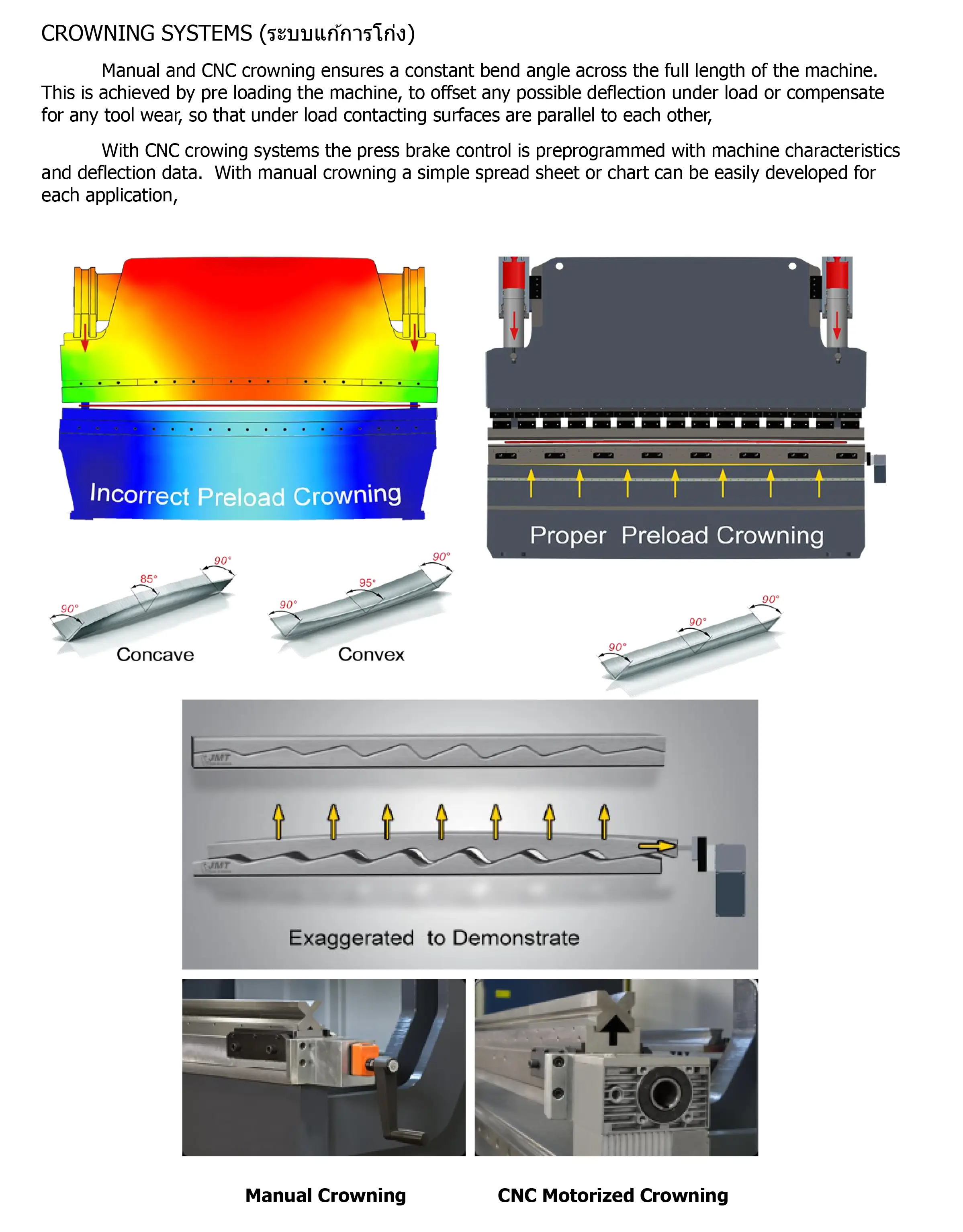

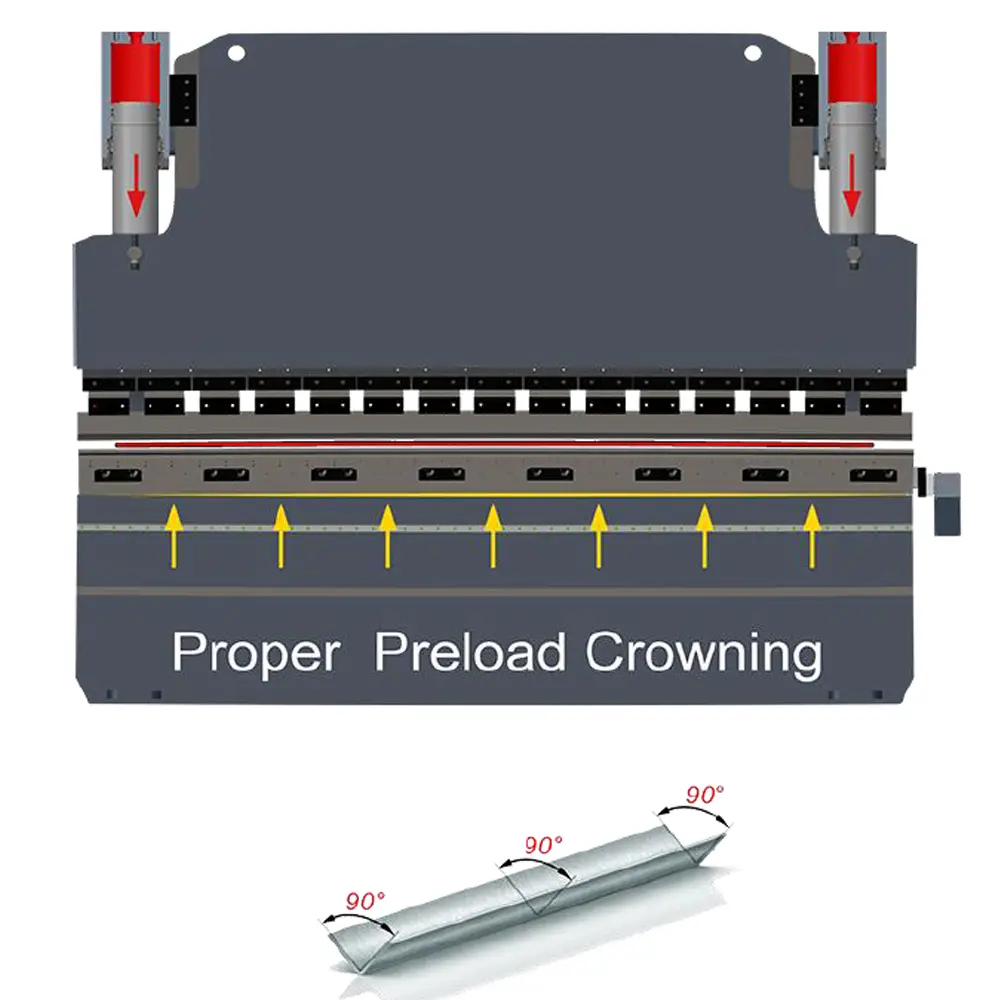

- V axis: Working table auto-hydraulic crowning control
