เครื่องตัดพลาสม่า รุ่น G3-A

ดาวน์โหลดรายละเอียดสินค้า

1. Effective Cutting Width:3m
2. Rapid Speed:Max 10000mm/min
3. Support flame cutting & plasma cutting;
4. Heavy duty tasks and keep working for 24 hours/day;



Description

First Class Gantry Cutting Machine, Best Price!
G3-A was well designed after integrating decades of industrial experience and customers feedback on gantry cutting machine. With concept of ‘simple and beautiful’, G3-A enjoys highest cutting performance and lowest manufacturing cost. This profitable machine type is as good as SteelTailor portable cutting machine series, presenting a simple and beautiful industrial product for global users.
Support flame cutting & plasma cutting
  • H-beam, towline and towline groove are optional.
G3 CNC Gantry Cutting Machine cutting sample
G3 gantry cutting machine,High Quality, High Performance, Superb Techniques Beyond All!
SteelTailor G3-A gantry CNC cutting machine has advantages in cutting large-sized thick metal plates or the other heavy duty tasks, which can satisfy the customers’ requirements for mass production in industries of automobile, shipbuilding and engineering machinery, etc. The self-developed and patented intelligent NC system ensures a more efficient and stable operation; The integrated THC function and user-friendly operating system largely lower the requirements for technicians. Besides, high temperature annealing treatment and international standard design of positioning precision make the cutting precision get to what customers require. What’s more, easy switch between oxy-fuel and plasma improve productivity. With its overwhelming techniques and high qualities, G3-A offers an economical and advanced cutting solution for customers.
SteelTailor G3 gantry CNC Cutting Machine Advantages
1. Keep High Positioning Precision for 10 Years!

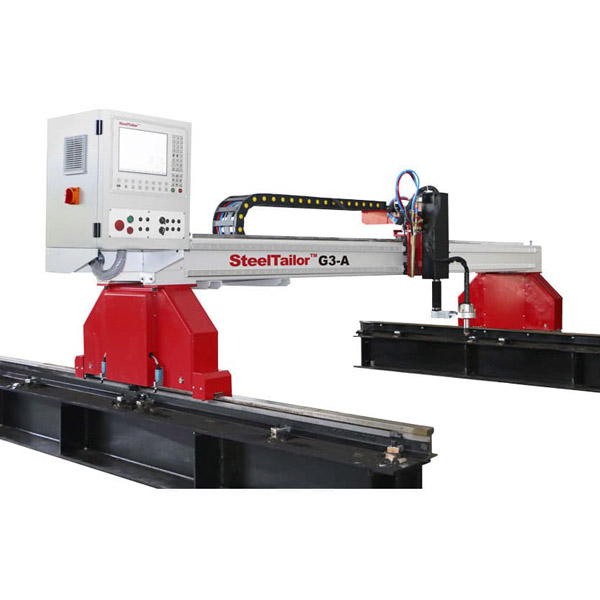

 G3-A gantry CNC cutting machine
A. The beam and slide are symmetrical and structured with square tubes, which ensures high stability in high-speed operation.
B. Beams are stress relieved after annealing, guarantee high cutting precision for a long time.
C. Standard gantry rail, rack & pinion with grade 7 precision (Euro Standard) and specialized reducer make its positioning precision conform to ISO 8206-1991.
2. Make Gantry Cutting Simple, More Simple!
A. Intelligent NC System (High stability, fast operation, built-in integrated THC function, easy operation and reduce troubles).G3-A gantry cutting machine NC system
B. Simple electrical connection; (Just connect with AC220V or 110V power line, oxygen pipe and fuel gas tube).G3-A gantry CNC cutting machine Oxy-fuel and plasma switch easily
C.Oxy-fuel and plasma switch easily:Oxy-fuel or plasma cutting can be switched easily by using the same torch holder, which avoids reducing the effective cutting area.G3-A CNC plasma cutting machine
D.Optional gas regulator makes operator adjust air pressure easily
3.Unique Design of Technical Details, Perfect Cutting Effect!

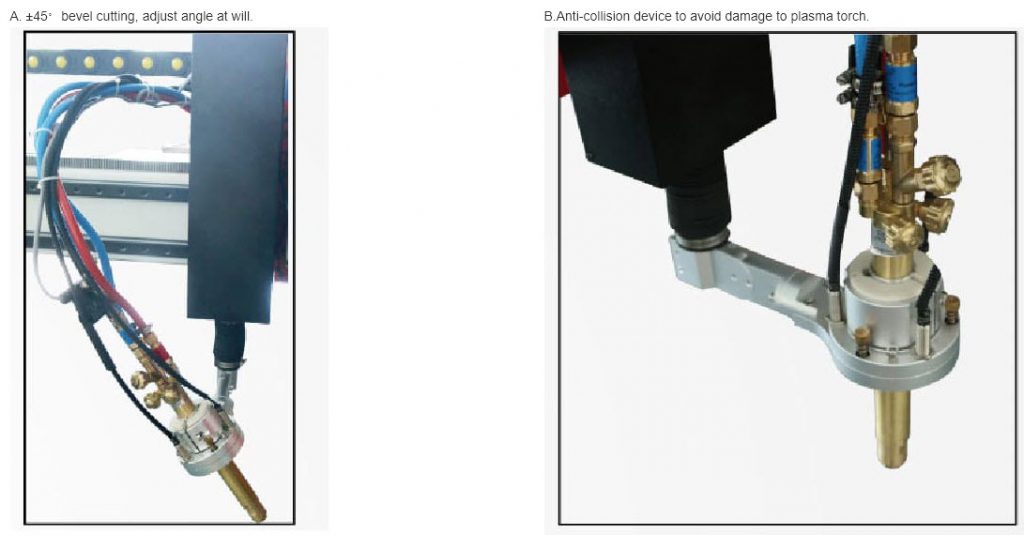

A. ±45 bevel cutting, adjust angle at will.
B.Anti-collision device to avoid damage to plasma torch.

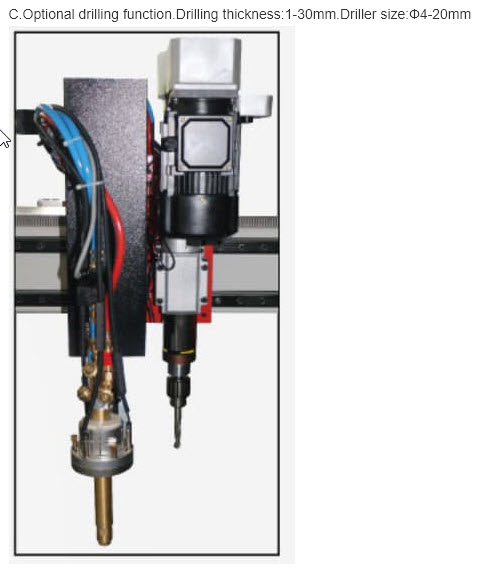

C.Optional drilling function.Drilling thickness:1-30mm.Driller size:Ф4-20mm
D. Multiple steel plates can be put on cutting table for improving productivity.
E. Heavy duty tasks and keep working for 24 hours/day.



Specification

Items Description
Power Supply Single phase, AC220 50-60HZ, 2000W
Effective Cutting Width (transverse) 3000mm
Effective Cutting Length (longitudinal)  3000 mm to 19000 mm (rail 2m)
Maximum Dry Speed 12000mm/min
Torch Lifting Distance 200mm
Machine Height 1560mm
Machine Length Effective cutting length +2000mm
Machine Width 4500mm
Positioning accuracy ≦±0.5mm
Repeatability ≦±0.2mm
Cutting Thickness

Plasma: depend on the plasma power source
Oxy-fuel: (piercing cutting)5-80mm

Longitudinal Driving Method Dual drive
Types of Cutting Material Carbon steel / stainless steel / aluminum

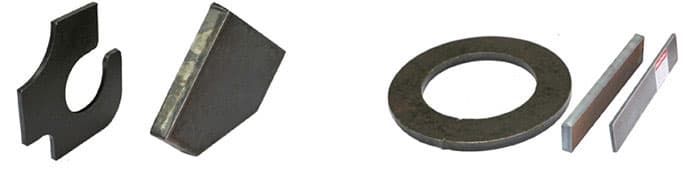

Cutting samples
