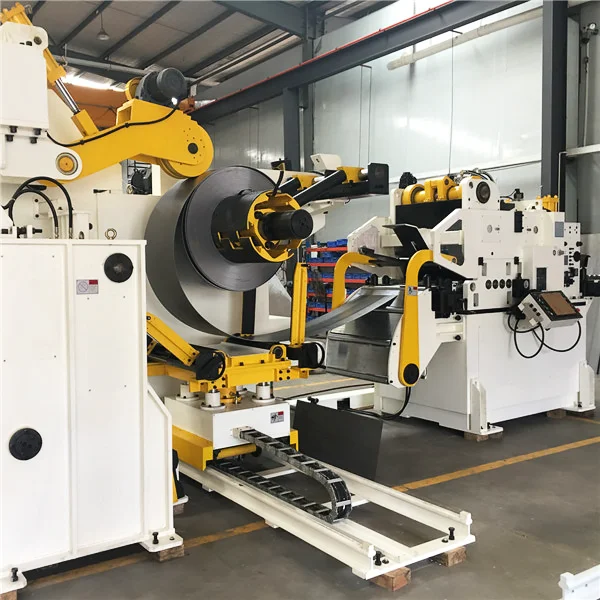

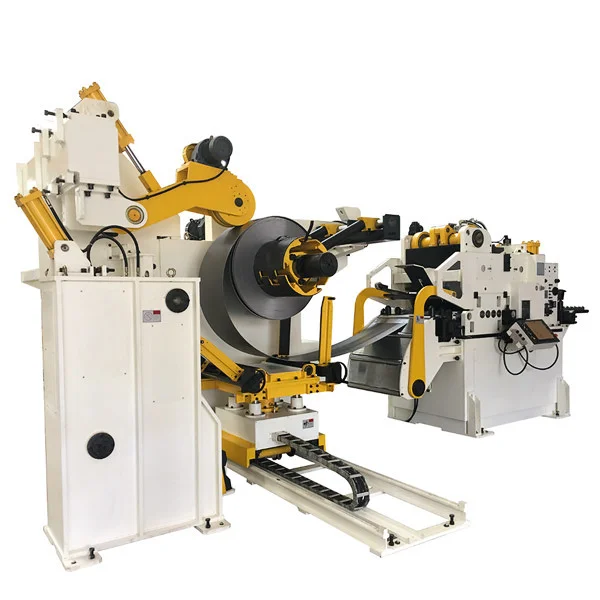

เครื่องคลายม้วน ดัดเรียบ ป้อนโลหะ 3 in 1 รุ่น GLK4-H

Model GLK-H
Applied industry Precision stamping parts, automobiles, aerospace
Applicable material Cold rolled plate, pickled plate, high strength plate and hot rolled plate
Coil car The support structure is type to assist the loading operation
Expansion style Hydraulic block driven
Limitting roller width adjust Electric adjustment
Coil input supporting arm Hydraulic drive, touch screen control
ขอใบเสนอราคา

Description

GLK-H
DECOILER STRAIGHTENER FEEDER 3 IN 1

Capacities

Coil width: 70mm-1300mm
Material thickness: 0.6mm-6.0mm
Coil weight: 7-15T
Line speed: 20m/min
Line length: 5m
Feeding length: Max.9999.99mm
Material: High Strength Material

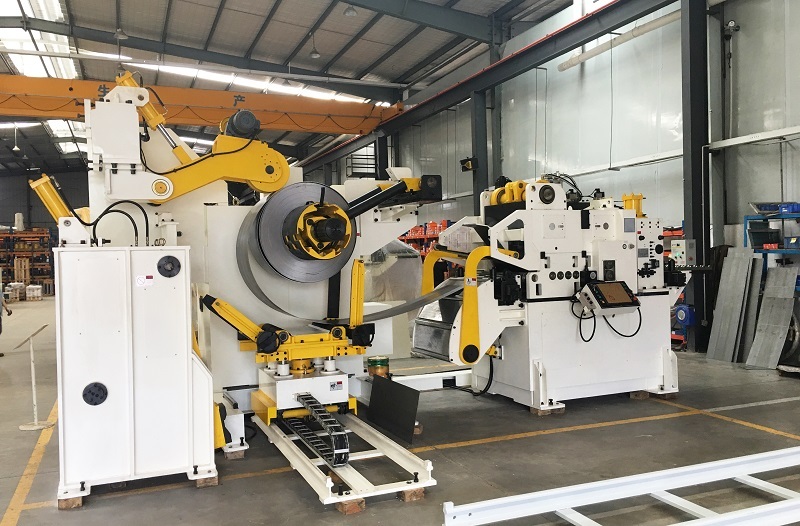

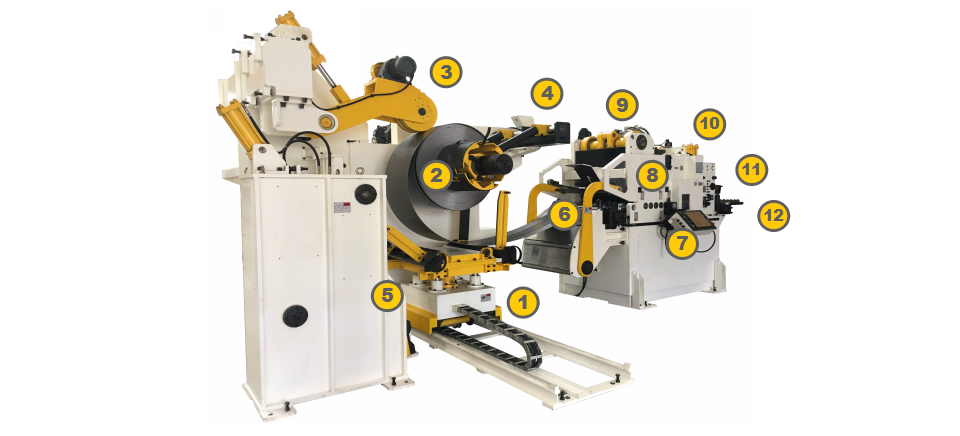

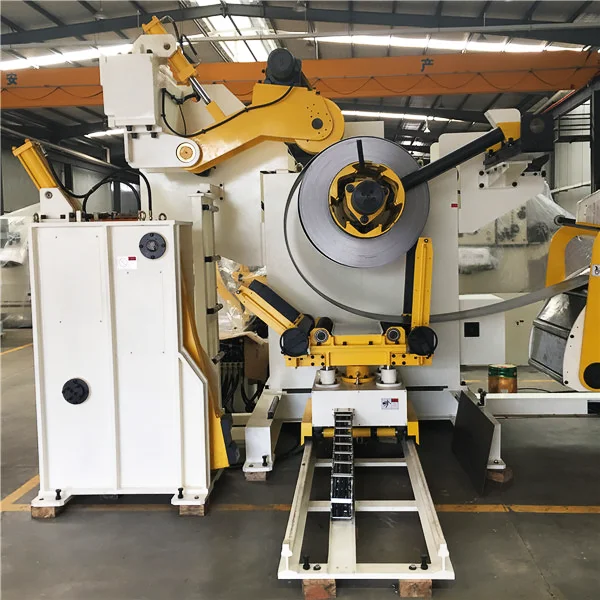

1. Coil Car
Hydraulic power, wear-resisting surface

2. Decoiler Mandrel
Hydraulic expansion, delta inverter

3. Pressing Arm
Coil well-knit, no disperse

4. Limiting Arm
Locating coil, avoid coil shuffing

5. Support Arm
Auxiliary support coil

6. Coil Inlet
With supporting swing arm

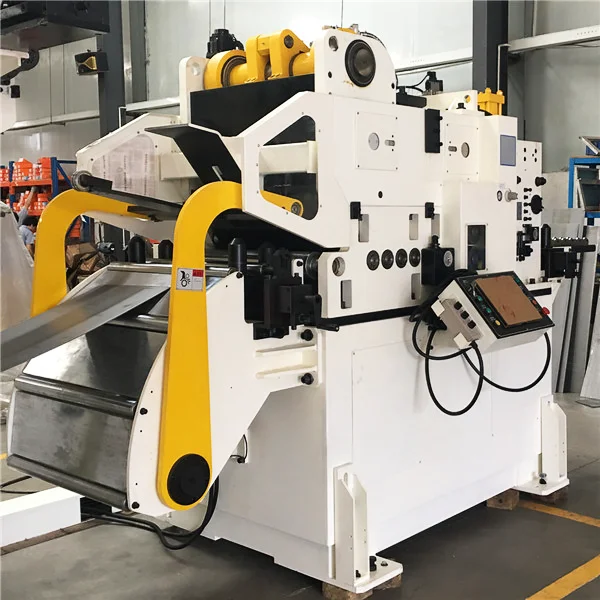

7. Control Board
Weinview touchscreen

8. Straightening Part
GCr15 steel straightener rolls

9. Electrical Circuitry Control
Precision electric adjustment

10. Shearing Unit
Hydraulic shear

11. Lubrication Unit
Automatic lubrication control, 20L

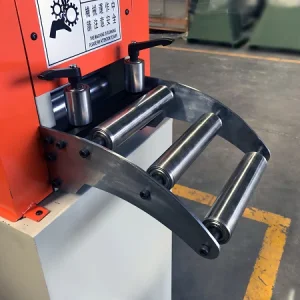

12. Outlet Bracket
Adjustable length

Specification

Model
GLK4-600H
GLK4-800H
GLK4-1000H
GLK4-1300H
Material
High Strength Material
Coil Width
70-600 mm
70-800 mm
70-1000 mm
70-1300 mm
Strip Thickness
0.6-6.0 mm
Feeding Length
Max. 9999.99 mm
Coil I.D.
Φ508
Coil O.D.
Φ1400
Loading Capacity
5000 kgs
7000 kgs
7000 kgs
10000 kgs
Feeding Speed
16-24 m/min
Feed Precision
±0.15mm
Straighten Rolls
Φ68mm * 7pcs (Up4/Down3)
Pinch Rolls
Φ88mm * 2pcs
Auxiliary Rolls
Φ68mm * 220mm *3 groups
Pressing Arm
Pneumatic Type
Expansion
Hydraulic Expansion
Uncoiler Motor
2.2 Kw
3.7 Kw
3.7 Kw
7.5 Kw
Servo Motor
11 Kw
11 Kw
14 Kw
14 Kw
