เครื่องคลายม้วน รุ่น CR

Description

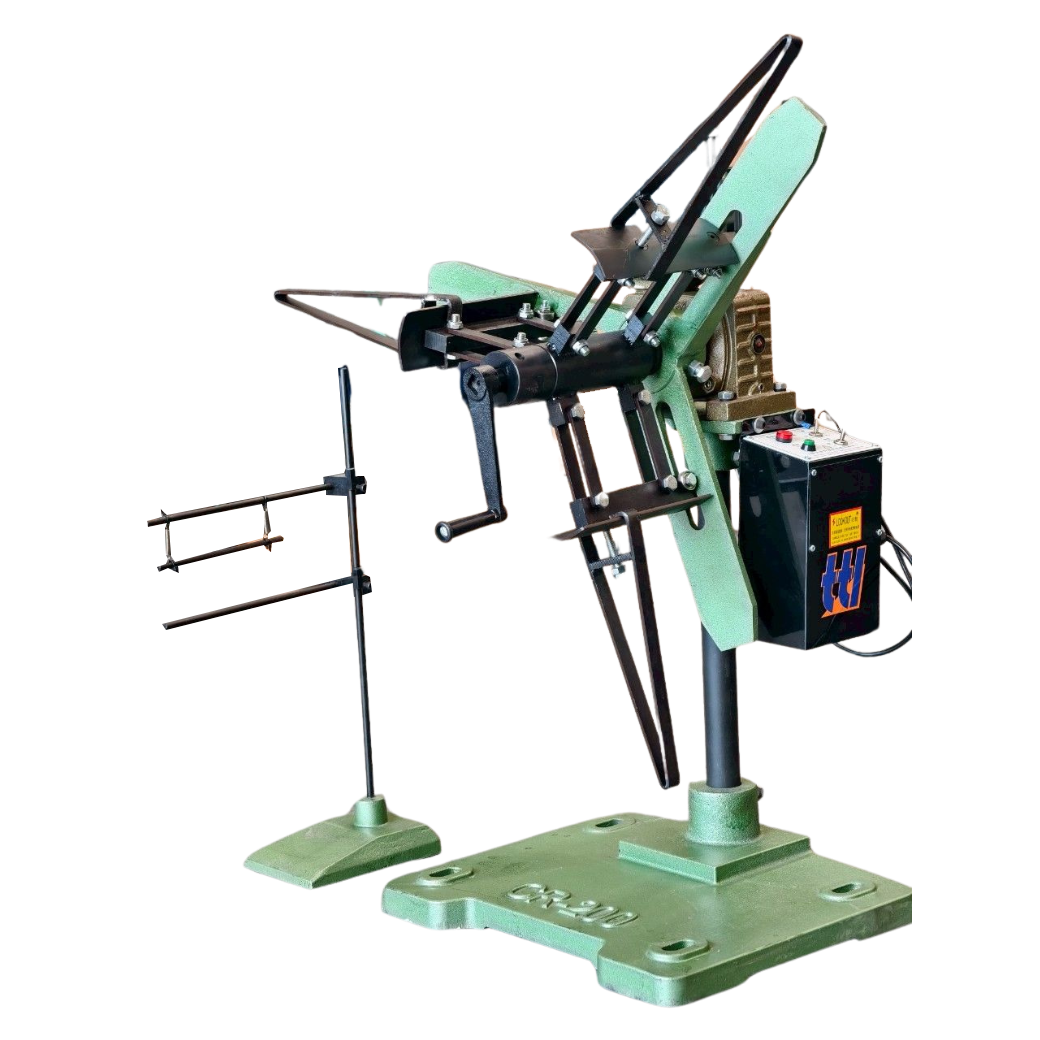

CR Light duty uncoiler machine

Operation: Motorized
Mandrel Expansion: Manually
Application: Press Feed
Loading Capacity: 200kgs
Simply structure and low malfunction
Suitable for most kind of coil material

Specification

Model
CR-100
CR-200
Coil I.D.
130 – 410 mm
200 – 300 mm
Max. Coil O.D.
800 mm
800 mm
Max. Coil Width
150 mm
200 mm
Max. Loading Weight
80 kgs
150 kgs
Motor
0.5 HP
1 HP
