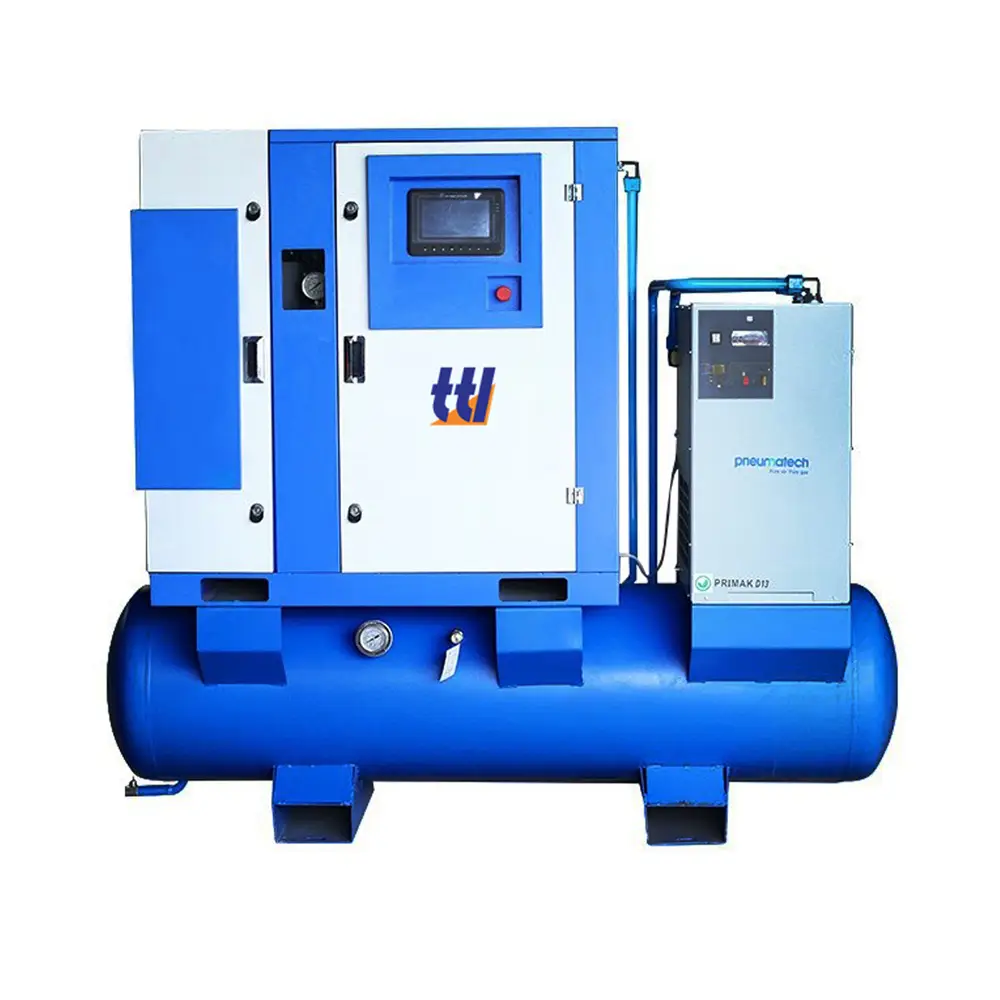

Specification
Model No | 15kw | 22kw |
Cooling method | Air cooling | Air cooling |
Maximum exhaust pressure | 1.6Mpa | 1.6Mpa |
Volume flow | 1.2m³/min | 2.12m³/min |
Exhaust gas temperature | Ambient temperature±15℃ | Ambient temperature±15℃ |
Transfer method | Direct connection drive | Direct connection drive |
Noise | 65~70±2db | 65~70±2db |
Oil content at gas | ≤3ppm | ≤3ppm |
Oil content at the end | 0.003ppm | 0.003ppm |
Dust content at the end | 0.01um | 0.01um |
Motor Power | 15kw | 22kw |
Voltage/frequency | 380V/50Hz | 380V/50Hz |
Start method | Star-delta (frequency conversion) start | Star-delta (frequency conversion) start |
Rated speed | 2950rpm | 2950rpm |
Insulation class | F | F |
Exhaust pipe diameter | G1 | G1 |
Physical dimension(mm) | 1950*700*1680 | 1950*700*1680 |
Weight(kg) | 590 | 680 |
