เครื่องดูดสูญญากาศแผ่นโลหะ รุ่น BLA Series

Vacuum lifter :BLA Series ดูด จับ สิ่งของ โลหะ อโลหะ ขนย้ายแผ่นปลอดภัย ถนอมวัสดุ ลดอุบัติเหตุ ลดแรงงาน ใช้งานง่าย สดวกสบาย

Request Quote

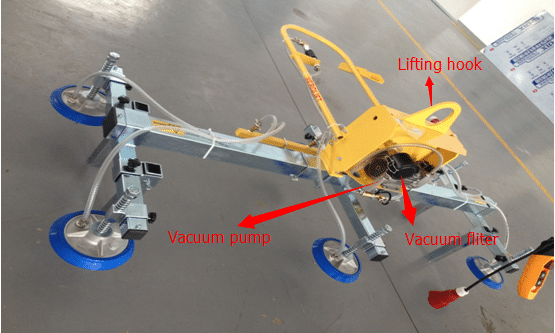

Description

 Description of the system characteristics
Design standard The equipment strictly is accordance with the EU CE standardEN13155:2003, To carry on the design on based of US ASME(Mechanical engineering association) B30-20-2006standard and Germany UVV18standard,Main design index is higher than the above standard.

1)Safety factor:Main design is greater than 2.0,Vacuum system pressure value for calculation is 60%,The actual peak pressure can reach 85% degrees,Set aside about 40% degrees.

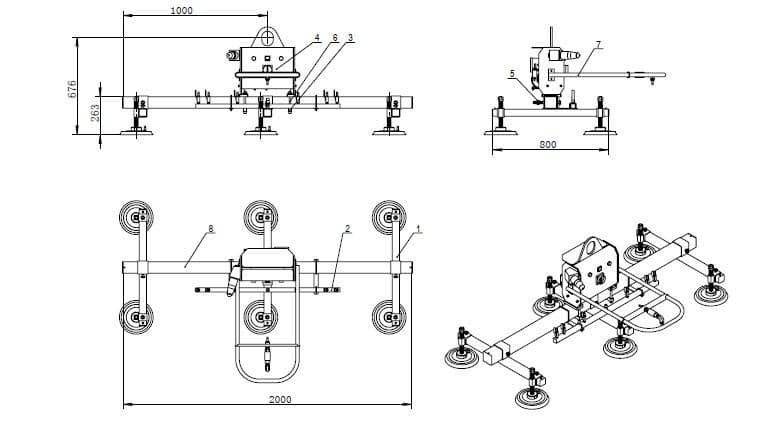

2)Board of  overhang To calculated according to the board overhang. ( Minimum thickness) Minimum thickness of plate: 3 mm Max. overhang L=1016 mm See below schematic diagram.

specification description:

Main beam(Length)  L=  2 m

Cross beam(Length)      W=  0.8 m

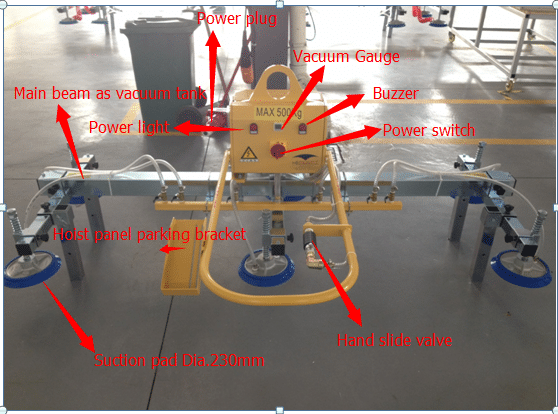

Dia. Suction pad D=   230mm

Number of pads:  6 pcs Other:

 Suction force calculation Dia.230mm. Single pad max.suction force in theory on horizontal=Effective surface (Theory of area*factor)* calculated pressure(0.6bar).=(0.115*0.115*3.14)*0.6*10000=249N,Approx249Kgf. According to the double safety factorActually allow the suction pad249/2=124kgf,  number of 6 total suction force 700kgf.   Note: The holding force mentioned above is calculate on 60% vacuum pressure, maximum vacuum degreeof the system will be up to 85% above in a normal working condition.

Specification

Specification BLA400-6-T

Model No. BLA400-6-T Maximum load Horizontal handling 400kg
Overall dimensions 2000mmx800mmx850mmApprox); Power input 380V,50HZ, 3 Phase
Model of Control Suction and release control by manual push-pull valve  Suction and release time Less than 2s, (Only first suction time slightly longer, about 10~15s)
Maximum pressure 85% Vacuum degreeApprox0.85Kgf Warning pressure 60% vacuum degreeApprox0.6Kgf
Security coefficient S>2.0,Horizontal lifting Net weight 95kgApprox);
Pressure maintaining (when power failure) After Power Failurethe holding time when suction plate by vacuum system>20min.
Safety alarm When the pressure is lower than the set alarm pressure(60%), Sound and light alarm automatic alarm.
Speed test Apply plate ≤2s

Release plate≤2s



Specification BLA80-8-T

Model No. BLA80-8-T; Maximum load Horizontal handling 800kg
Overall dimensions 2000mmx800mmx850mm(Approx); Power input 380V,50HZ, 3 Phase
Model of Control Suction and release control by manual push-pull valve Suction and release time Less than 2s, (Only first suction time slightly longer, about 10~15s)
Maximum pressure 85% Vacuum degree(Approx0.85Kgf) Warning pressure 60% vacuum degree(Approx0.6Kgf)
Security coefficient S>2.0,(Horizontal lifting) Net weight 95kg(Approx);
Pressure maintaining (when power failure) After Power Failure, the holding time when suction plate by vacuum system>20min.;
Safety alarm When the pressure is lower than the set alarm pressure(60%), Sound and light alarm automatic alarm.
Speed test: Apply plate ≤2s

Release plate≤2s

Application case
