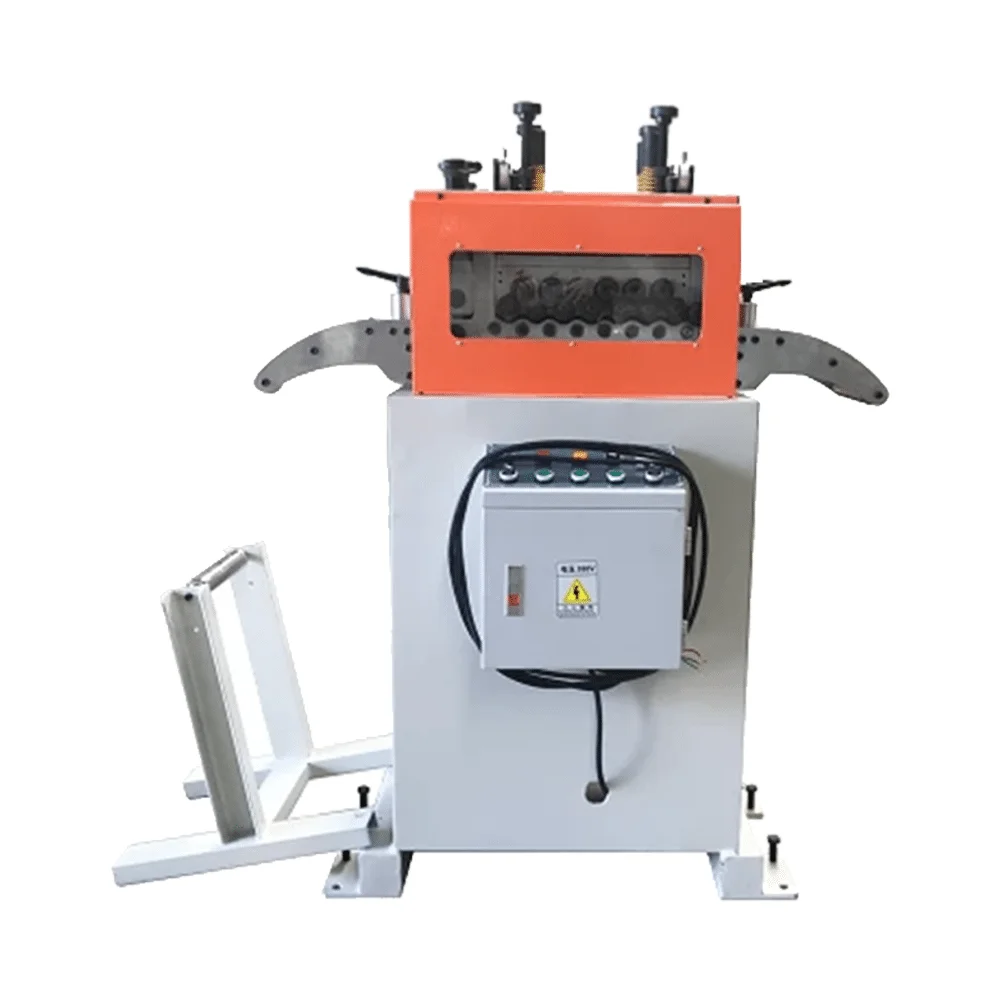

Straightener Feeder Machine Model : JM3

เครื่องดัดเรียบ รุ่น JM3 ความหนาของคอยล์อยู่ที่ 0.2-1.2mm ตัวลูกกลิ้งแข็งแรงทนทาน

  Request Quote

Description

JM3 HIGH PRECISION SHEET METAL STRAIGHTENER

  • High precision sheet metal straightener suitable for the stainless steel, copper, iron, aluminum sheet from thickness 0.2mm to 1.2mm

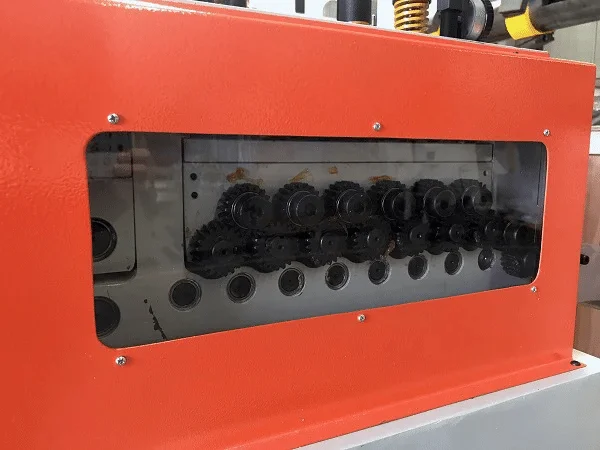

  • 15pcs High-quality GCr15 straightener rolls, hardness reach HRC60±2, with wear resistance. The straightening rollers adopt independent transmission
  • The scratch-type rolls adjustment method is used instead of the traditional dial indicator adjustment method, no additional correction is required
  • Delta inverter for speed control

Specification

Model JM3-100 JM3-200 JM3-300 JM3-400
Thickness (mm) 0.2-1.2
Width (mm) 0-100 0-200 0-300 0-400
Straightener roller Ø48(top9/down10)

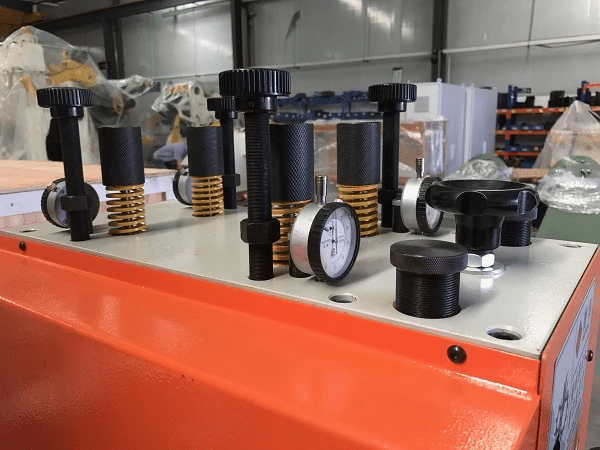

Adjustment style 4 point minor adjustment
Speed 0~16m/min
Motor 1HP 1.5HP 2HP

Application

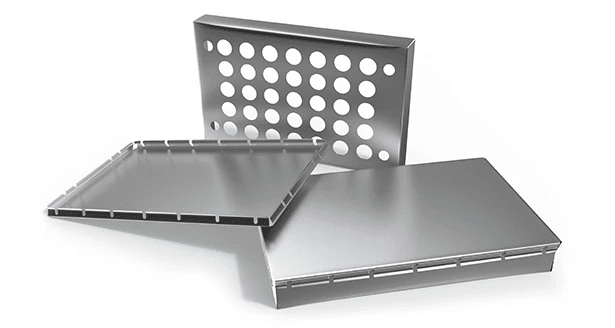

JM3 straightener can be found in many different sheet metal stamping line, especially the sheet metal shields which needs high precision leveling.
