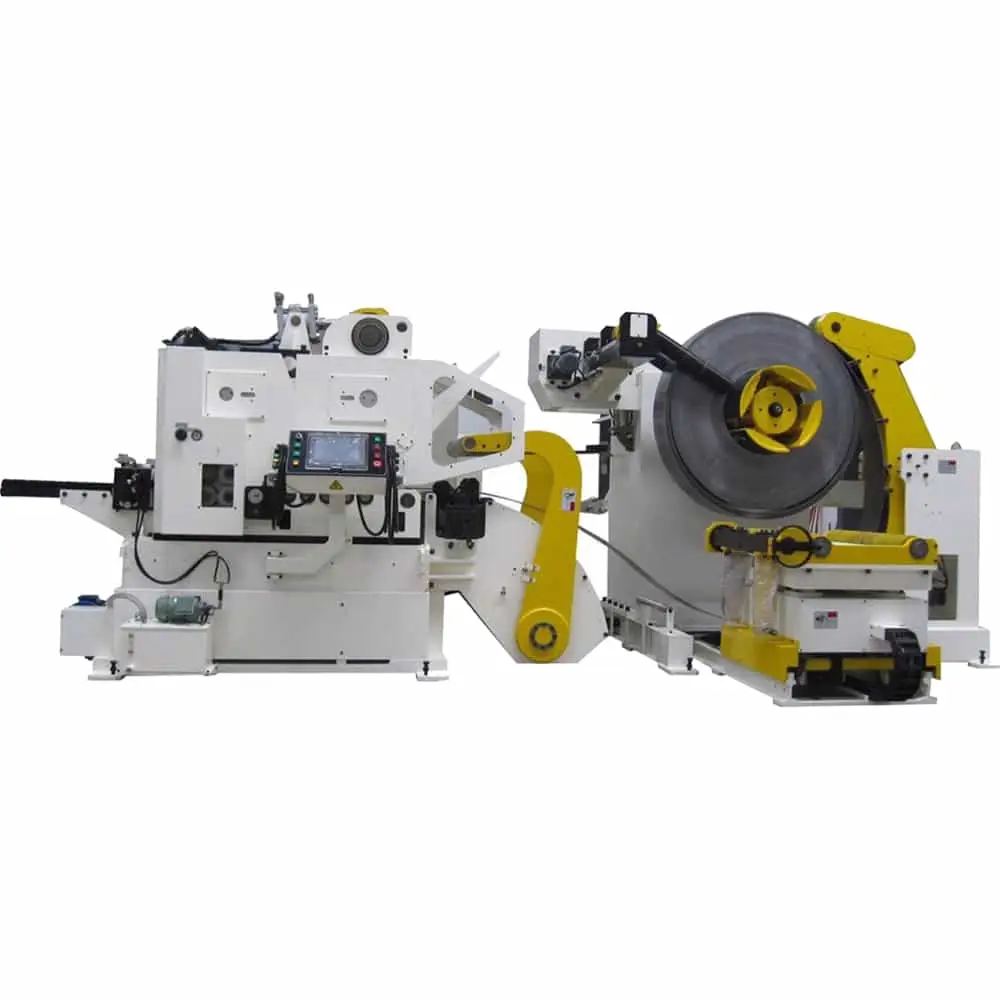

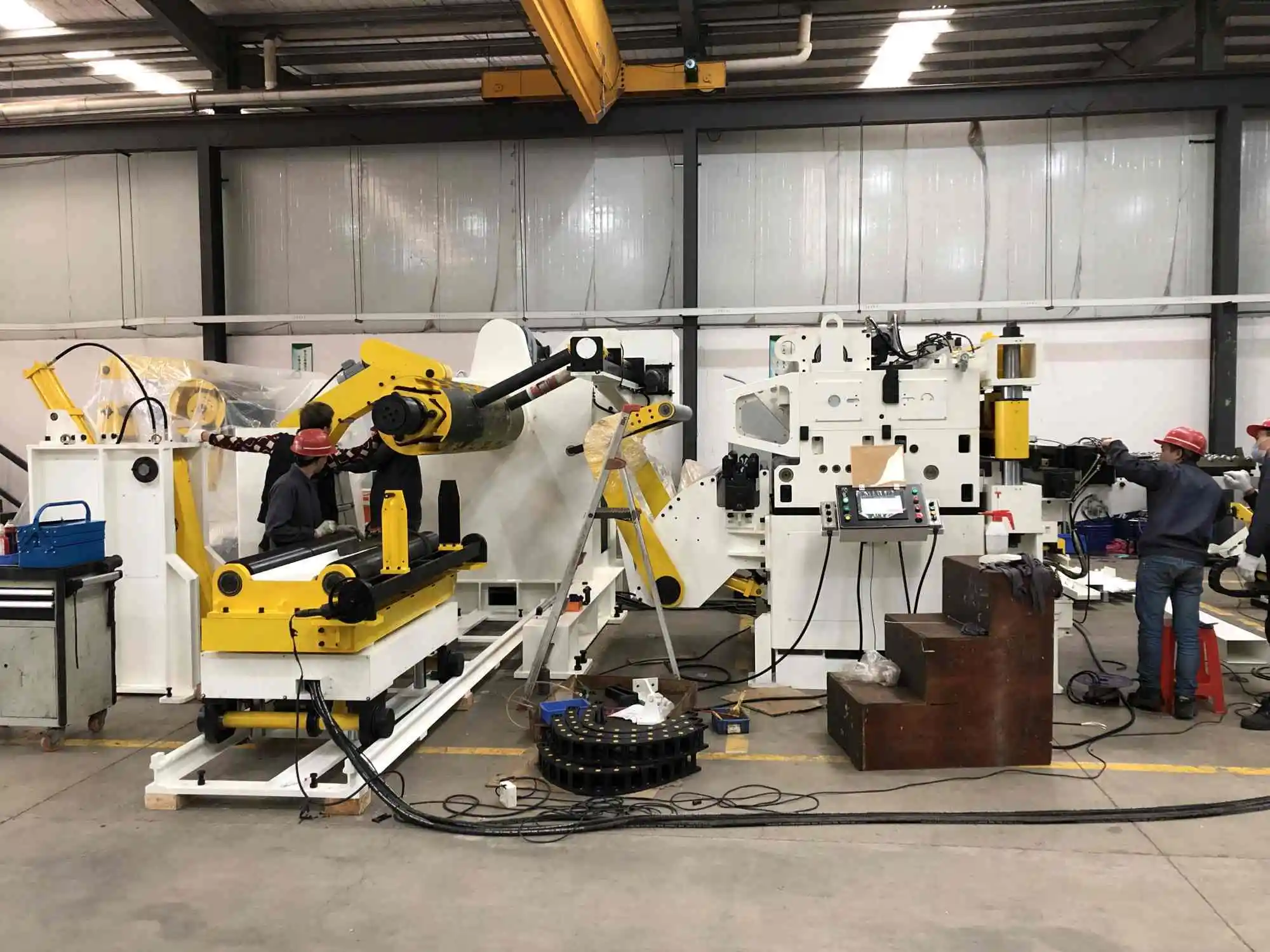

Decoiler Straightener Feeder Model : GLK5

เครื่องคลายม้วน ดัดเรียบ ป้อนโลหะ 3 in 1 รุ่น GLK5 โครงเสริมแรงและโครงสร้างที่ออกแบบเป็นเอกลักษณ์ ลูกกลิ้งคลายม้วน 9 ลูกกลิ้ง แม่นยำและประสิทธิภาพสูง
และความกว้างของคอยล์สูงถึง 1800 มม. ความหนาสูงสุด 9.0 มม  มาพร้อมกับหน้าจอสัมผัส ช่วยให้ทำงานได้สดวกสบายมากยิ่งขึ้น เหมาะอย่างยิ่งสำหรับอุตสาหกรรมผลิตชิ้นส่วน หรืองานที่ต้องใช้โลหะ แบบต่อเนื่อง

    Request Quote

Description

Reinforced frame and HongEr unique designed structure

High automatic control system with the advanced diagnosis system

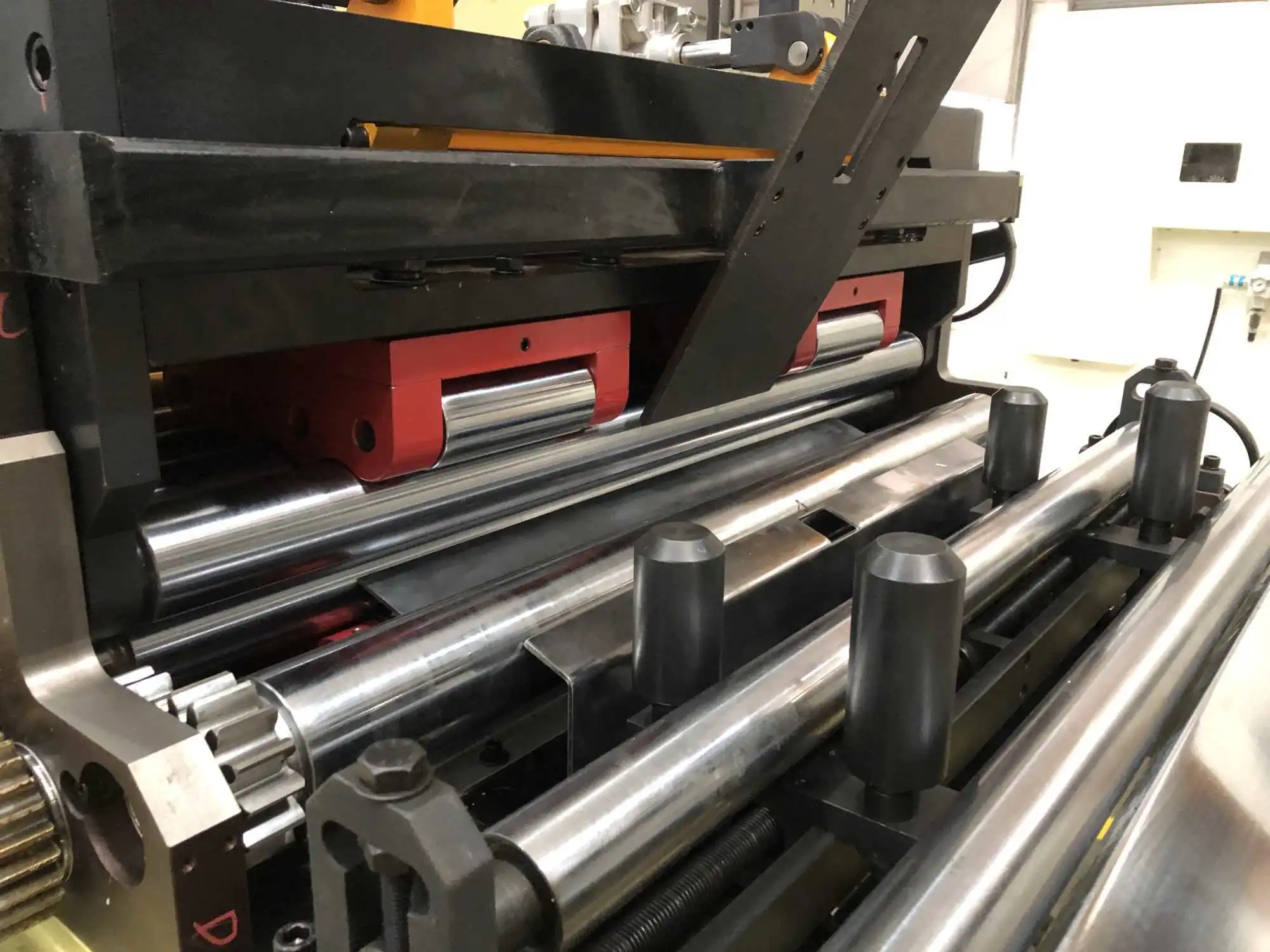

9pcs of high-quality straightening rollers for precision straightening

Coil width up to 1800mm, thickness up to 9.0mm

The upper straightening roll part can be opened for easy clean and maintenance

Stepping motor for precision adjustment of the electrical straightening value

10′ touch screen for easy operation control

Parameter storage function for mass production

Specification

Model GLK5-600 GLK5-800 GLK5-1000 GLK5-1300
Material Width (mm) 70-600 70-800 70-1000 70-1300
Material Thickness (mm) 0.8-9.0
Max. Coil Weight (kg) 5000 5000 7000 10000
Max. Coil I.D. (mm) Ø508
Max. Coil O.D. (mm) Ø1400
Max. Feedng Length (mm) ~500
Feeding Speed (mm) 16
Straightening Roller (pcs) Upper5/ Down4
Auxiliary straightening roll group Provided
Servo Motor (kw) AC15 AC15 AC22 AC30
Uncoiler Motor (kw) AC3.7 AC3.7 AC5.5 AC7.5
Uncoiler Expansion Hydraulic
Power Voltage (V) 220V  60HZ / 380V 60HZ
Operating Air Pressure (Mpa) 0.49



Straightening Performance
Material Yield Strength ób≤245N/mm2 , Material Tensile strength ós≤392N/mm2
Model Thickness(mm)
0.8-3.2 4.0 4.S S.0 6.0 7.0 8.0 9.0


Width(mm)

GLK5-600 600

450



331



253



200

GLK5-800 800

648

GLK5-1000 1000

800

GLK5-1300 1300 1013



Straightening Performance(For High Tension Metal Sheet)
Material Yield Strength ób≤600N/mm2 , Material Tensile strength ós≤960N/mm2
Model Thickness(mm)
2.3 2.8 3.2 4.0 4.S S.0 6.0 7.0 8.0


Width(mm)

GLK5-600 533 432 374 292 257 228

180



132



101

GLK5-800 527 427 369 289 254 225
GLK5-1000 521 422 365 286 251 223
GLK5-1300 511 414 358 281 246 219 178
