Decoiler Straightener Feeder 3 IN 1 Model : GLK2

Model	GLK2
Applicable material	SPHC.SPHD,SPCC,SPCD,SPCE,Galvanized coil
Straightener Roller	Φ48mm x 11 pieces ,top 6/ bottom5
Straightener roller drive way	Side gear drive
Straightening precision	≤1.5mm/㎡
Feeding line height adjust way	Motor-driven , Feeding line height ±100mm

Description

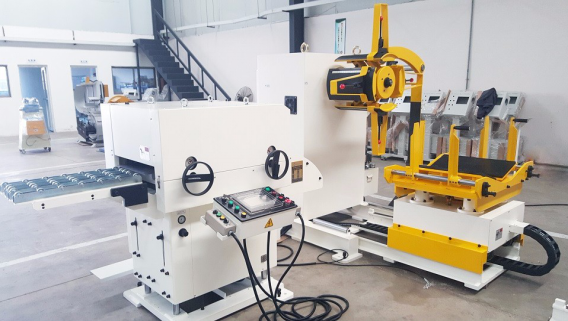

GLK2 DECOILER STRAIGHTENER FEEDER 3 IN 1

Capacities

Coil width: 50mm-500mm

Material thickness: 0.3mm-3.2mm

Coil weight: 3Ton

Line speed: 20m/min

Line length: 3.2m

Material: CR Steel, HR Steel, Stainless, Aluminum, Copper etc.

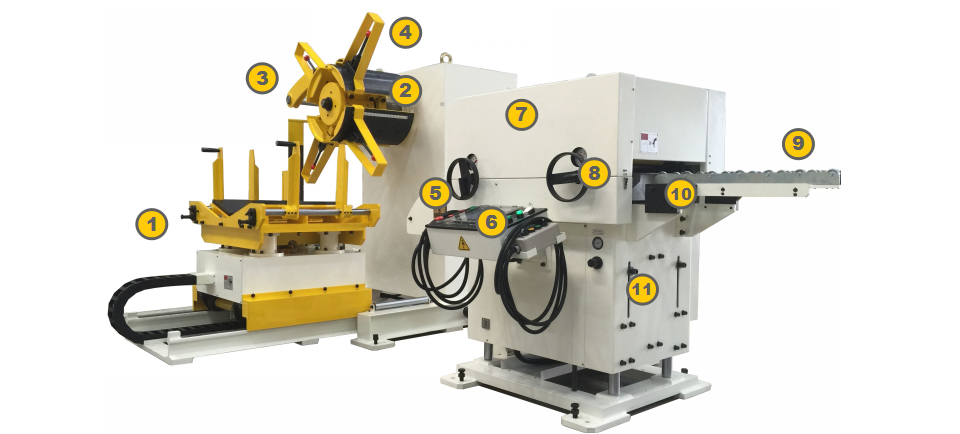

1. Coil Car

Hydraulic power, wear-resisting surface

2. Decoiler Mandrel

Hydraulic expansion, delta inverter

3. Pressing Arm

Coil well-knit, no disperse

4. “A” frame

Locating coil, avoid coil shuffing

5. Coil Inlet

Supporting arm for optional

6. Control Board

Weinview touchscreen

7. Straightening Part

11pcs GCr15 straightener rolls

8. Handwheel

Precision straightening value adjustment

9. Outlet Support Bracket

Adjustable in length

10. Optional Lubrication Unit

Automatic lubrication control, 20L

11. Servo System

Yaskawa servo motor and servo dirve

Straightening Performance
Material Yield Strength ób≤245N/mm² , Material Tensile strength ós≤392N/mm²
Model		Thickness(mm)
		0.3	1.0	1.3	1.6	2.0	2.3	2.5	2.8	3.2
Width(mm)	GLK2-300	300							250
	GLK2-400	400						250
	GLK2-500	500					250
	GLK2-600	600				230
	GLK2-800	700			200
	GLK2-1000	800		180
