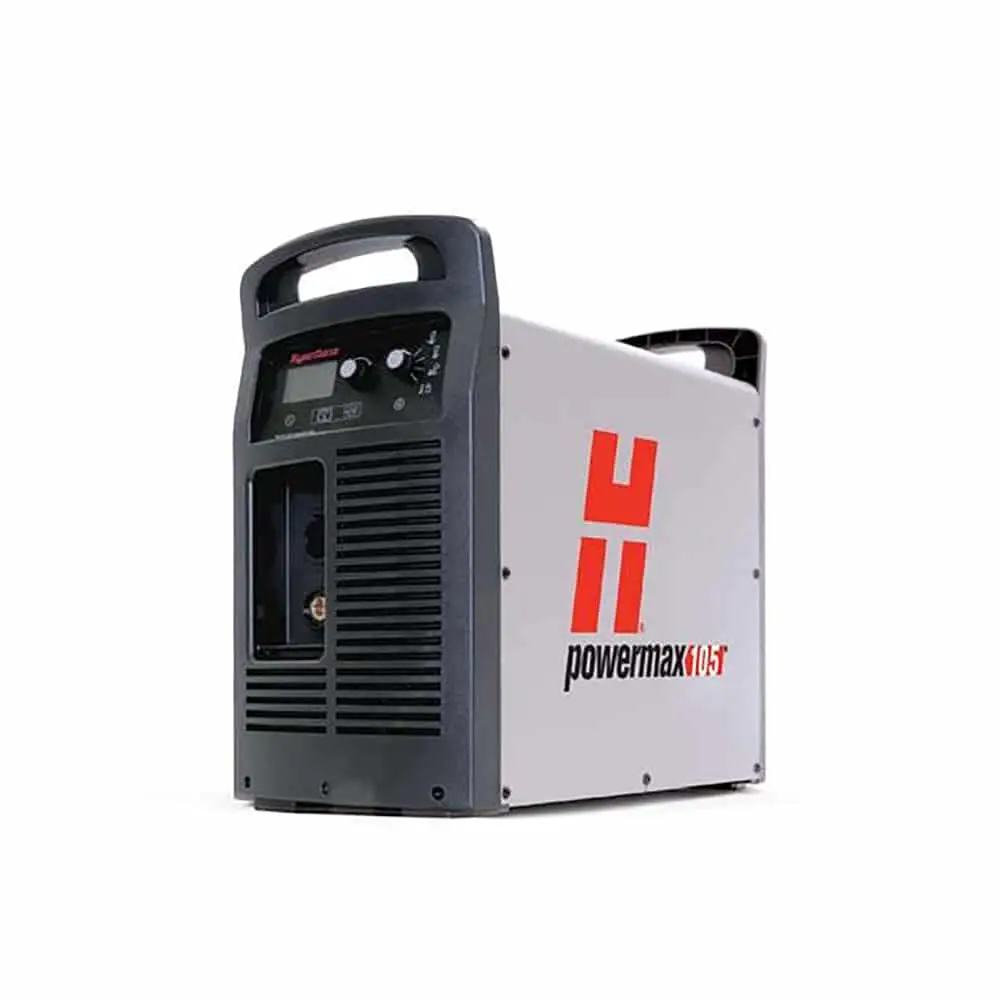

เครื่องตัดพลาสม่า รุ่น Powermax105

เครื่องตัดพลาสม่าที่มีน้ำหนักเบา เคลื่อนย้ายสะดวก

ตัดงานโลหะได้หลากหลายรูปแบบ รองรับทั้งระบบตัดมือ และระบบอัตโนมัติ ใช้งานง่าย ประสิทธิภาพการทำงานสูง นำเข้าจากสหรัฐอเมริกา มาตรฐานระดับสากล และสามารถเชื่อมต่อเข้ากับเครื่องตัด CNC เพื่อเพิ่มประสิทธิภาพให้สูงขึ้น จะทำให้ได้ชิ้นงานที่มีรอยตัดสวยงาม
    Request Quote
Category:

Description

Maximum productivity

  • Finish jobs faster with cut speeds three times greater than oxyfuel on 12 mm (1/2″) mild steel
  • Superior cut and gouge quality let you spend less time on grinding and edge preparation
  • Multiple, easy-to-use torch styles let you tackle a wide variety of jobs using the same system

Easy-to-use for cutting and gouging

  • No need to change the air pressure – Smart Sense technology ensures that it is always correctly set; it also detects electrode end-of-life, automatically turning off power to the torch to prevent potential damage to other parts or to the workpiece
  • SpringStart™ technology ensures consistent starting and a more reliable torch
  • Drag cut at full output with a patented shield that reduces dross buildup for smoother cutting

Built to handle tough jobs

  • Hypertherm Certified™ reliability ensures peak performance even in the harshest environments
  • Duramax torches are designed for high-impact and heat resistance

Specification

Input voltages CSA 200-600 V, 3-PH, 50/60 Hz
CE 400 V, 3-PH, 50/60 Hz
200-400 V, 3-PH, 50/60 Hz
CCC 380 V, 3-PH, 50/60 Hz
Input current @ 16.8 kW 200/208/240/380/400/480/600 V, 58/56/49/28/25/22 A
Output current 30 – 105 A
Rated output voltage 160 VDC
Duty cycle @ 40°C (104°F) 80% @ 105 A
Open circuit voltage (OCV)
  • 200-600 V CSA: 300 VDC
  • 380 V CCC and 230-400 V CE: 288 VDC
  • 400 V CE: 292 VDC
Dimensions with handles 592 mm D; 274 mm W; 508 mm H (23.3″ D; 10.8″ W; 20.0″ H)
Weight with 7.6 m (25′) torch
  • 200-600 V CSA: 45 kg (100 lbs)
  • 380 V CCC/400 V CE: 41 kg (90.4 lbs)
  • 230-400 V CE: 45 kg (100 lbs)
Gas Supply Clean, dry, oil-free air or nitrogen
Recommended gas inlet
flow rate / pressure		 Cutting: 217 l/min (460 scfh) @5.9 bar (85 psi)
Gouging: 227 l/min (480 scfh) @4.8 bar (70 psi)
Input power cable length 3 m (10′) *
Power supply type Inverter – IGBT
Engine drive requirement 30 kW for full 105 A output
Certifications CSA-certified for use in the Americas and Asia, except China.
CE, C-Tick, CU/GOST, Ukr, and Serbian — for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted.
CCC for use in China.
Warranty Power supplies have a 3-year warranty and torches a 1-year warranty.

*No power cord on some CCC models.

Engine-driven generator operation

Engine drive rating System output current Performance (arc stretch)
30 kW 105 A Full
22.5 kW 105 A Limited
22.5 kW 85 A Full
15 kW 85 A Limited
15 kW 65 A Limited

Cut capacity

Capacity Thickness Cut speed
Cutting
Recommended 32 mm (1-1/4”) 500 mm/min (20 ipm)
38 mm (1-1/2”) 250 mm/min (10 ipm)
Severance (hand cutting) 50 mm (2”) 125 mm/min (5 ipm)
Pierce * 22 mm (7/8”)

* Pierce rating for handheld use or with automatic torch height control

Capacity Metal removal rate Groove profile
Gouging
Typical gouge 9,8 kg/hr
(21.7 lbs/hr)		 6,4 mm D x 7,4 mm W
(0.25” D x 0.29” W)

Production cut chart

Material Thickness Current Production cut speed *
inches mm amps ipm mm/min
Mild steel 1/4 6 105 192 5090
3/8 8 105 116 3870
1/2 12 105 76 2060
3/4 20 105 40 940
Stainless steel 1/4 6 105 224 6000
3/8 8 105 112 4210
1/2 12 105 68 1860
3/4 20 105 34 810
Aluminum 1/4 6 105 265 7090
1/2 12 105 91 2450
3/4 20 105 50 1190

*Production cut speeds are the result of Hypertherm’s laboratory testing.

Production speeds are approximately 80% of maximum. For optimum cut quality, cutting speeds may vary based on different cutting applications. Refer to the operator manual for more details.
