Description

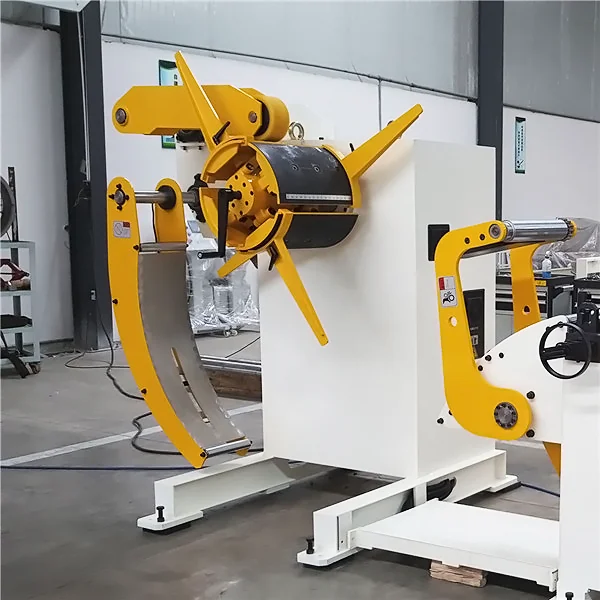

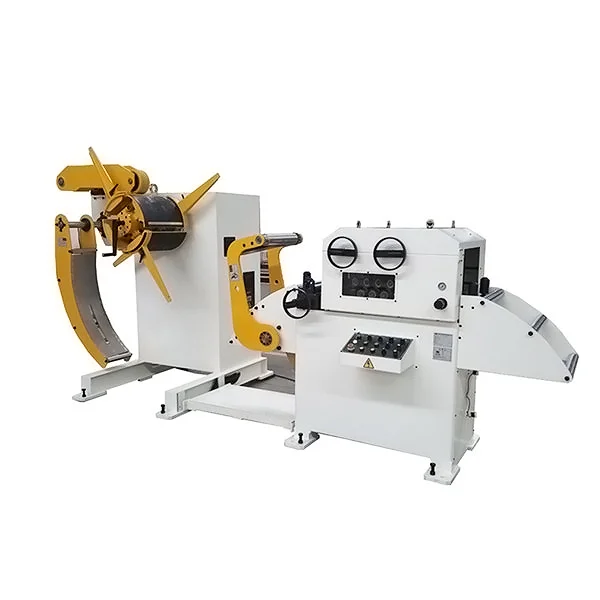

GL-H COMBINED DECOILER STRAIGHTENERGL-H is HongEr combined decoiler straightener machine.
It can decoiling and straightening sheet metal coil from thickness 0.5mm to 4.5mm.
With pneumatic pressure on straightener roller and worm gear adjusting, it can achieve presicion straightening performance for many different kind of material.
The combined structure guarantee a synchronization between decoiler and straightener and save work space.
|
|
 |
|
 Pneumatic Rod Pressing
|

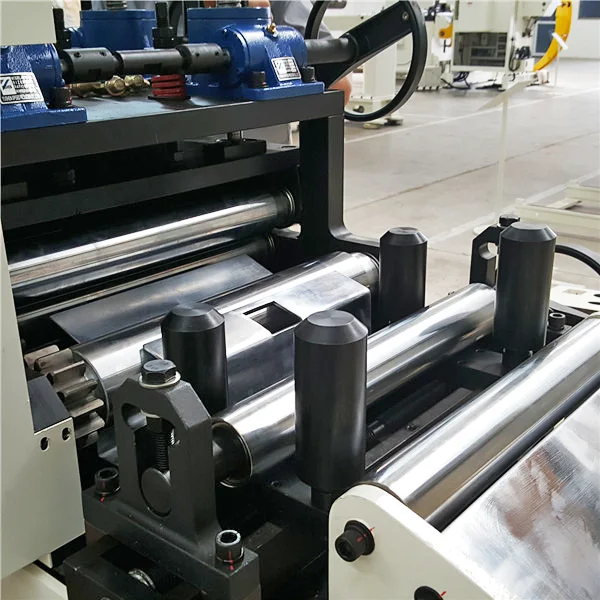

 GCr15 Straightening Rolls, Hardness HRC60
|
 International Standard Electric Cabinet
|
 Innovative Structure
|
Specification
|
Model
|
GL-400H
|
GL-600H
|
GL-800H
|
|
Coil width(mm)
|
400
|
600
|
800
|
|
Coil thickness(mm)
|
0.5-4.5(6.0)
|
||
|
Coil weight(kg)
|
2000
|
5000
|
7000
|
|
Coil I.D(mm)
|
460-520
|
||
|
Coil O.D(mm)
|
1200
|
||
|
Speed(m/min)
|
15
|
||
|
Straightener roller
|
4 on top / 3 on bottom
Bottom rollers have drive function
|
||
|
Pinch roller
|
Inlet: 2 / Outlet: 2
|
||
|
Servo motor(KW)
|
2.2
|
5.5
|
5.5
|
|
Uncoiler motor(KW)
|
1.5
|
2.2
|
2.2
|
|
Expansion style
|
Manual Expansion(Hydraulic for optional)
|
||
