Description
INSULATED ALUMINUM FLEXIBLE DUCT FORMING LINE
This production line is specially for producing aluminum flexible ducts with insulation for ventilation purpose.
I Buildup of the line
1.1 Aluminum flexible duct forming machine
1.2 Casing machine
1.3 Compressor
1.4 Mold 4, 5, 6, 8, 10, 12 inch
II Main technical data

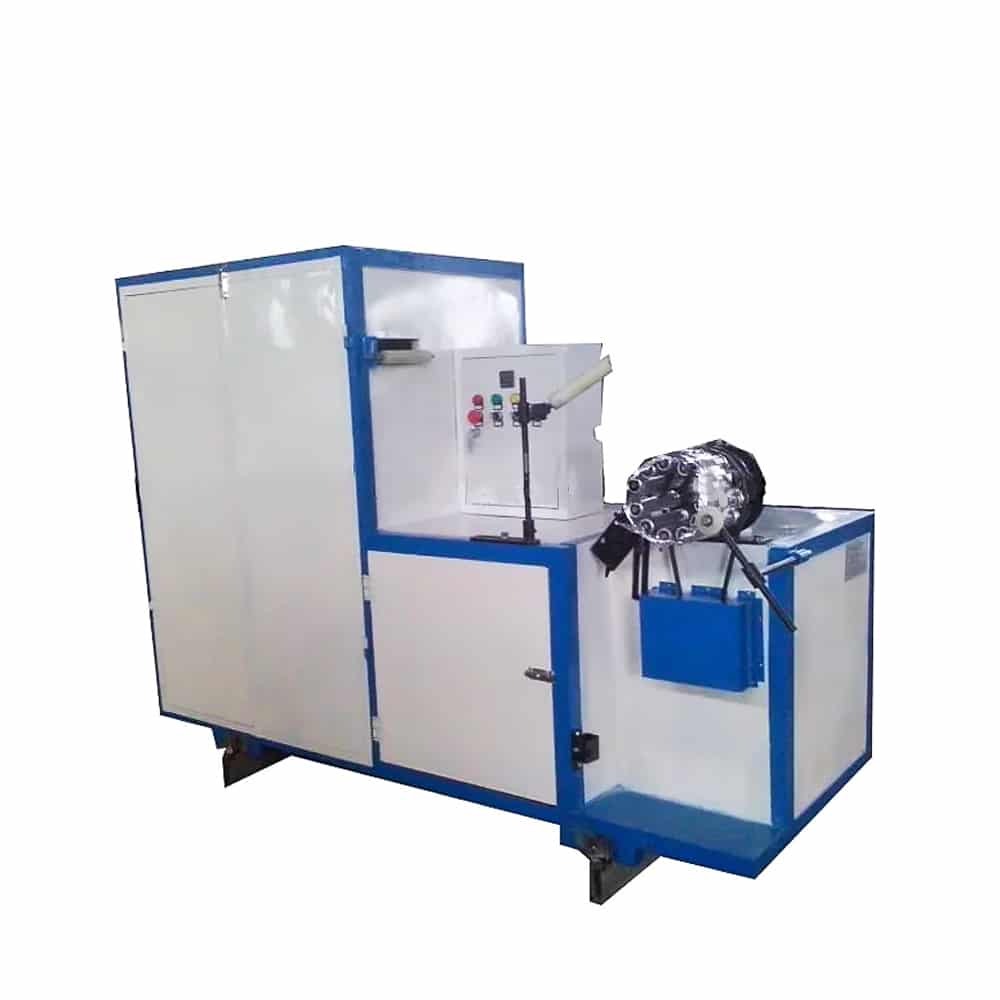

2.1 AFD600D aluminum flexible duct forming machine
Specification
|
Item |
Data |
| Diameter range | 60-600mm |
| Length of aluminum tube | 1-10m |
| Raw material | metalized PET film, 0.023mm, width 40-60mm, Steel wire 0.8-1.4mm dia. |
| Dimension | 2200 x 820 x 1550mm |
| Weight | About 750kg |
| Main motor power | 1.5kW |
| Temperature | 40~120º |
| Electric heating power | 2.4kW |
| Working speed | 1~35m/min |
| Feature of finished ducts | Temperature resistance: -30°C-140°C
Max. air flux: 30m/s Max. working pressure: 2500Pa Pitch between corrugations: 20mm |
