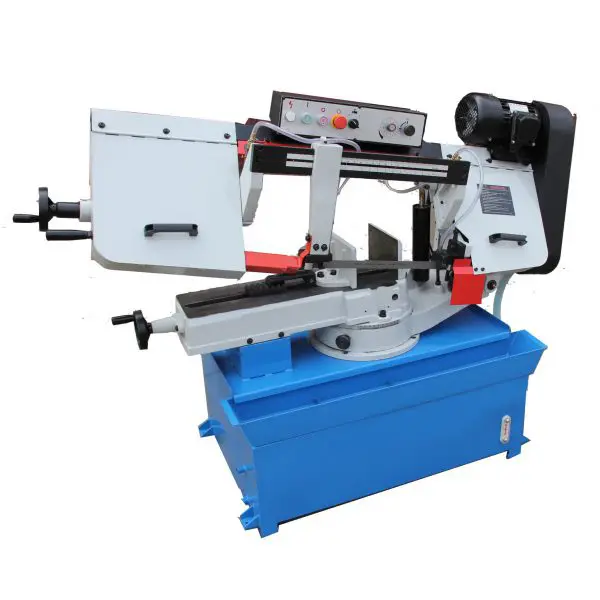

Band-saw Machine Model : BS-1018R

เครื่องเลื่อยสายพาน ตัดเหล็กกลมและเหลี่ยม และงานตัดเหล็กเป็นมัด ที่ต้องการปรับองศา ปรับความเร็วมอเตอร์ของใบเลื่อยสายพาน 25-75 MPM (Variable Speed) มีสวิทช์ เปิด-ปิด ได้อย่างง่ายมาก  ตัดชิ้นเพลาได้โตสุด 254mm หรือ ขนาด 10นิ้ว   ใบเลื่อยสายพานขนาดใหญ่ 27mm ทำให้ตัดงานได้ตรงและเร็ว ในการตัด สามารถ “ปรับองศาจากแท่นเลื่อน” ทำให้ตัดองศาได้แม่นยำ

Request Quote

Description

  1. The maximum processing capability of BAND SAW BS-1018 is 10″(254mm)
  2.  High-capacity due to controlled by motor
  3. The bow can be swiveled between 45° and 90°
  4. has the advantage of quickly clamping.
  5. features a belt driven and has four cutting speed.
  6. The falling speed of saw bow is controlled by hydraulic cylinder
  7. With a sizing device, machine will stop automatically after sawing materials
  8. With power break protection device, machine will power off automatically when the rear protective cover is opened
  9. With coolant system, can prolong the service life of saw blade and improve the precision of work piece
  10. has a block feeder (with fixed sawing length)

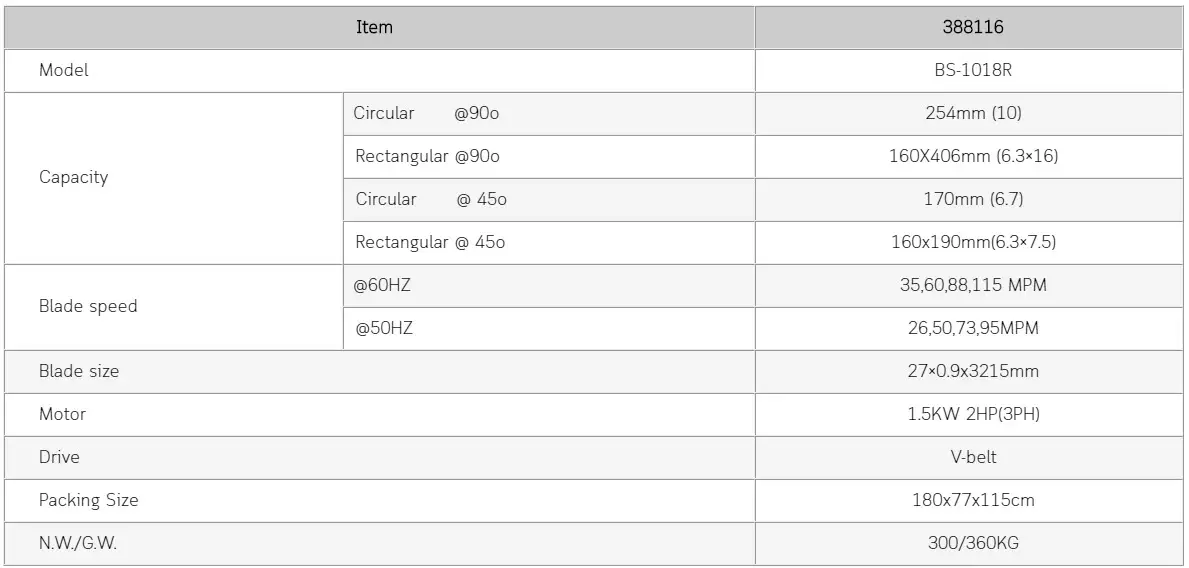

Specification
