Description

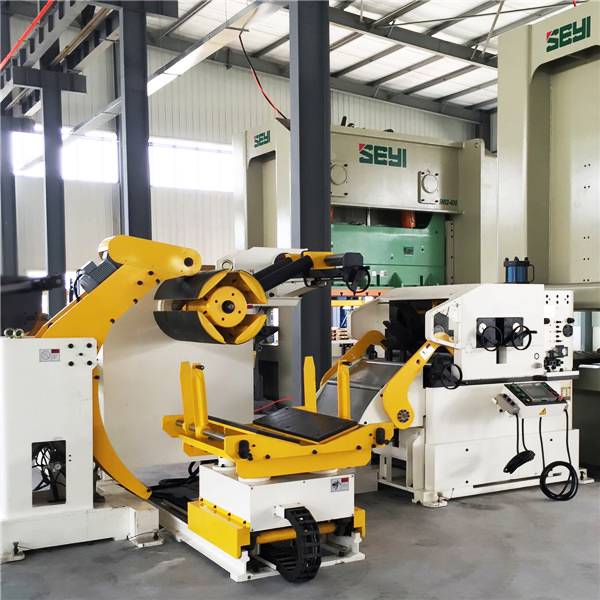

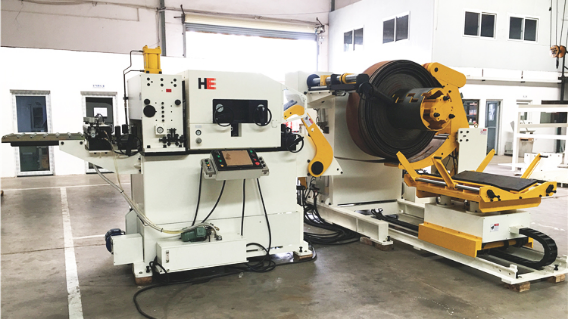

GLK4 DECOILER STRAIGHTENER FEEDER 3 IN 1
Coil width: 70mm-1300mm
Material thickness: 0.6mm-6.0mm
Coil weight: 5T/7T
Line speed: 20m/min
Line length: 5m
Material: CR Steel, HR Steel, Galvanized Steel etc.
 |
||

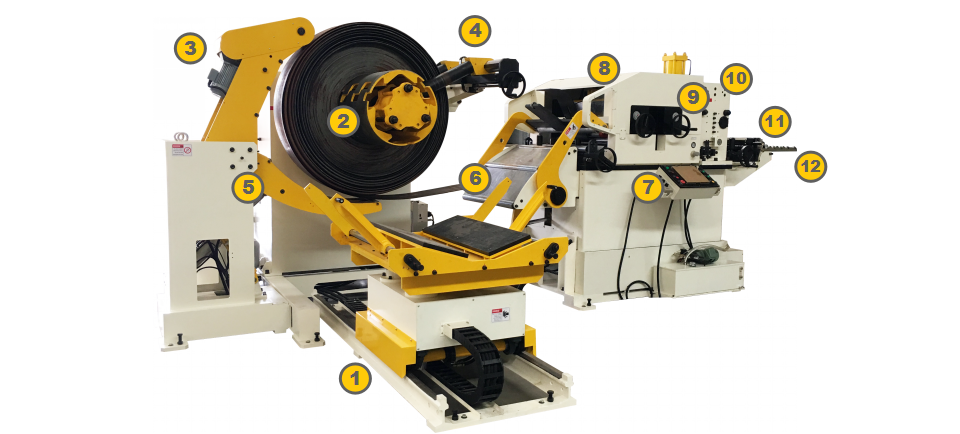

1. Coil Car
Hydraulic power, wear-resisting surface
|

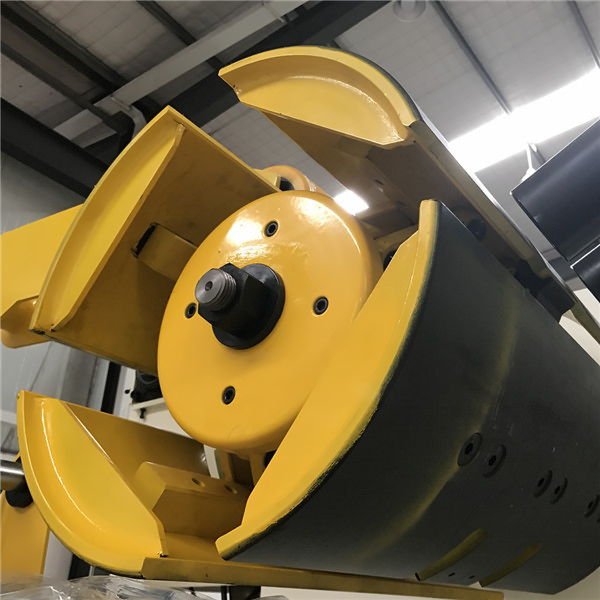

2. Decoiler Mandrel
Hydraulic expansion, delta inverter
|
3. Pressing Arm
Coil well-knit, no disperse
|
4. Limiting Arm
Locating coil, avoid coil shuffing
|
5. Support Arm
Auxiliary support coil
|
6. Coil Inlet
With supporting swing arm
|
7. Control Board
Weinview touchscreen
|

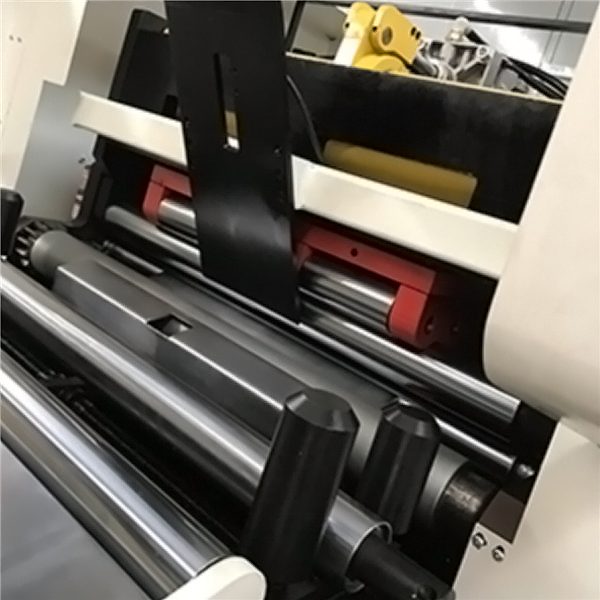

8. Straightening Part
GCr15 steel straightener rolls
|
9. Handwheel
Precision straightening value
adjustment |
10. Shearing Unit
Hydraulic shear
|
11. Lubrication Unit
Automatic lubrication control, 20L
|
12.Outlet Bracket
Adjustable length
|
