เครื่องตัดไฮดรอลิค NC รุ่น BS

เครื่องตัดโลหะแผ่นระบบ NC
เป็นเครื่องตัดคุณภาพสูง เหมาะสําหรับงานทั่วไป ใช้งานง่าย ทนทาน โครงสร้างแข็งแรงทําจากเหล็ก St42 ผลิตที่ประเทศตุรกี สามารถตัดโลหะได้ เช่น ทองแดงแผ่น เหล็กแผ่น อลูมิเนียมแผ่น
คุณสมบัติเด่น
– ชุดโปรแกรมคำนวนขนาดได้หลากหลาย
– บันทึกข้อมูลวัสดุที่ใช้ตัดได้หลากหลาย
– ทำงานรวดเร็ว
– มีเซ็นเซอร์ป้องกันความปลอดภัยหลังเครื่อง

ขอใบเสนอราคา

Description

Technological Benefits
   – Better quality and faster cuts.
   – Strong and durable body structure.

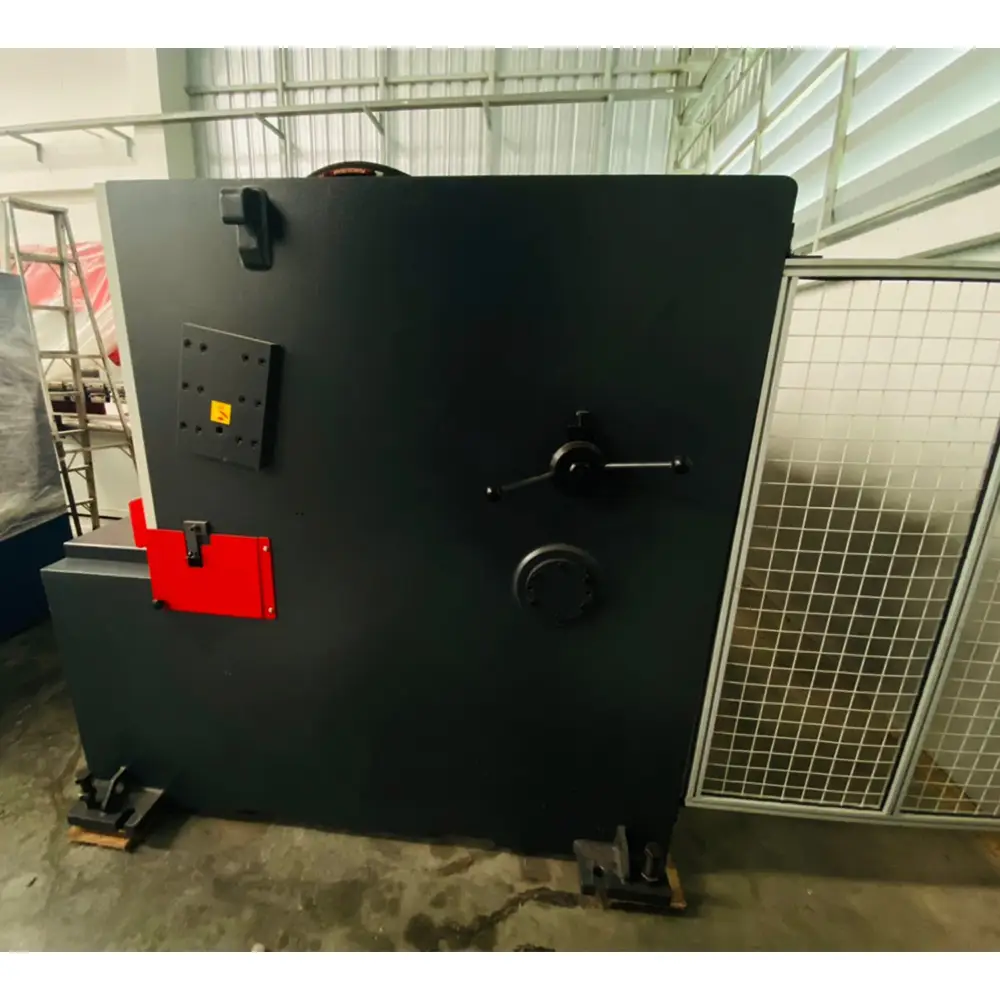

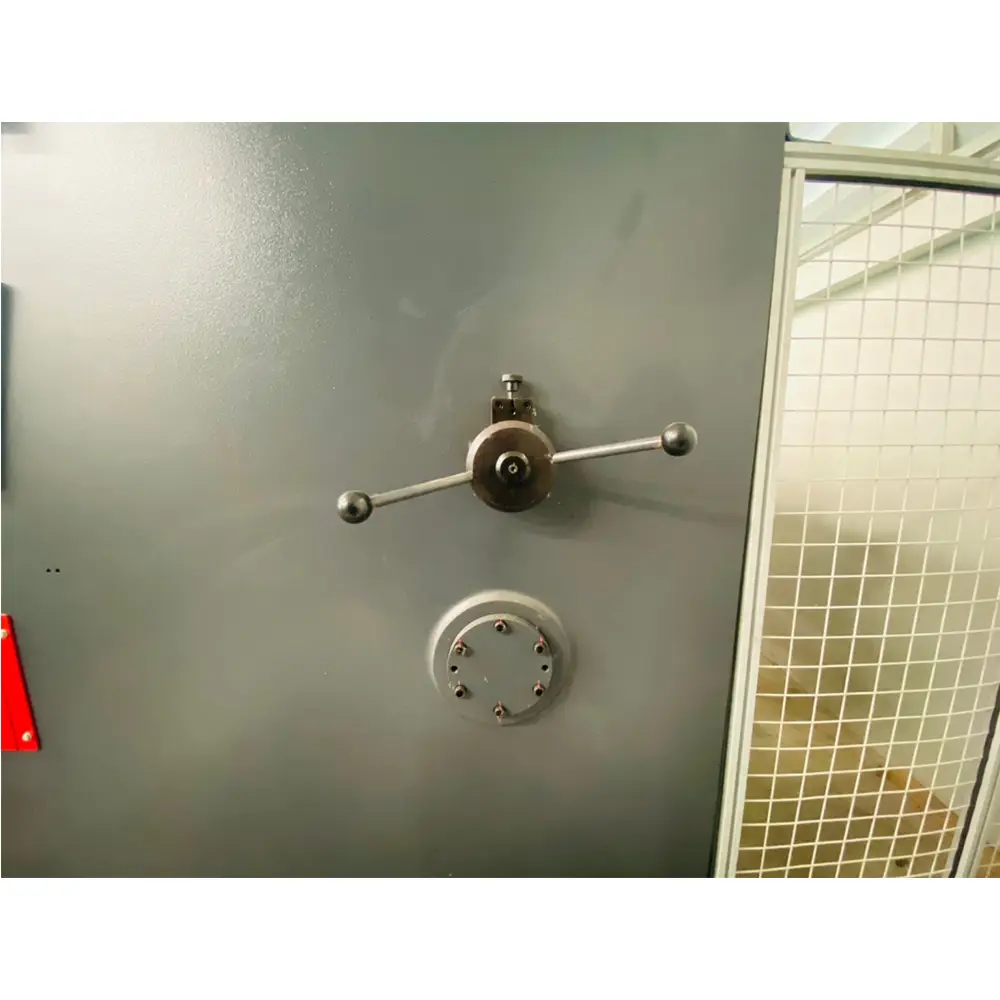

   – Manual gap adjustment and cutting angle.
   – High precision and easy handling.
   – Low maintenance costs.
   – High security protection.
   – World wide reliable component brands.
   – Low cutting costs.

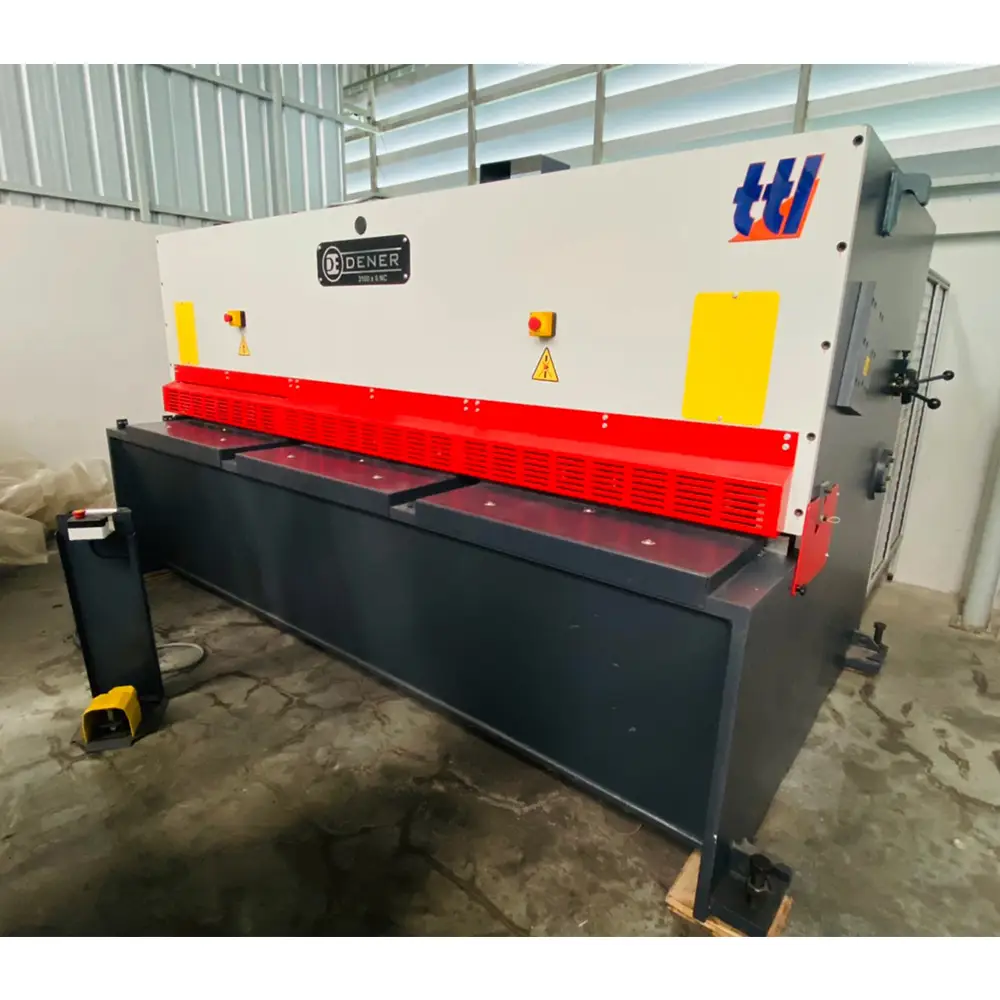

NC Swing Beam Shearing Machine
Economical, powerful, efficient, user-friendly numerical control unit and tilting drum hydraulic guillotine scissors are the preferred model among users. Monobloc Welded body is processed very precisely in CNC machining centers, equipped with world famous equipments and presented to the steel forming industry with the highest quality.
Dener NC type scissors are manufactured as standard from 6 mm to 20 mm thickness and from 2 mt to 6 mt. Apart from these measurements, our customers can be offered in special solutions in different sizes and thicknesses according to their special demands.
NC swing type hydraulic scissors with its large memory numerical control unit can keep 100 programs in its memory in 20 pieces and can easily restore the memory in case of need. The NC unit can also record data such as total operating hours and total number of pieces. With 1000 mm motorized threaded back gauge, steel plates can be cut with high precision. With one-point adjustable blade gap system, different thickness sheets can be cut easily. By means of the sheet cutting length adjustment system on the control panel, shorter parts are cut faster and the working speed and efficiency of the machine is increased.
The HT 071 is a compact and user-friendly single axis scissor control unit. With its program memory of 99 and 20 cutting steps per program, it offers the most suitable usage for users. With back gauge adjustment and retraction feature, it prevents the parts to be squeezed between the backrest and the machine during cutting. Cutting steps can be cut automatically by cutting the program steps.
The back gauge can be operated manually, semi-automatic and fully automatic in 3 different positions, with the high-speed and slow speed option with the precision ball screw system and the driver controlled motor system.
Faster and better cuts with excellent hardware

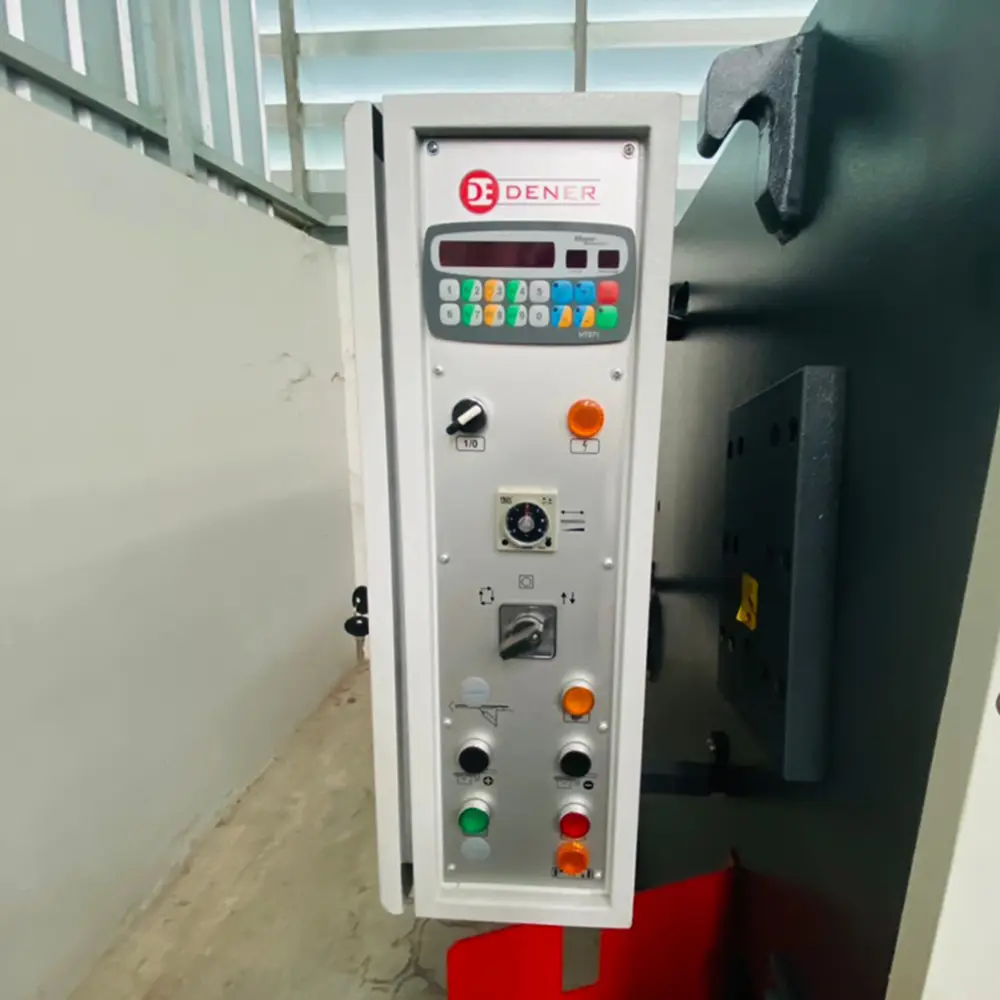

EHT 071 Control Unit
Compact and user-friendly single axis scissor control unit. With its program memory of 99 and 20 cutting steps per program, it offers the most suitable usage for users.
Sheet Metal Ball Bearing Table
The front table with sheet-sliding ball allows the operator to easily lose the sheet to the cutting area.
Cutting Line Lighting and Shade Wire
The shadow wire guides the operator to make correct cuts.
Motorized Blade Gap Adjustment (from CNC Control Unit)
According to the thickness of the sheet, automatic adjustment takes place. Thanks to the centil setting system, precise, smooth and quality cuts are always achieved.
Backgauge System
± 0.1mm Backrest with precision motor
Pneumatic Sheet Support System (Optional)
It prevents the sagging and scratching of wide and thin sheets and provides more precise cuts.

Standard Equipments
• Dener Ht 071 NC Control Unit
• Hydraulic Pressure Boots
• Front Table with Sheet Metal Slide
• T Channel and Ruler Sheet Support Arms.
• Motorized Backrest.

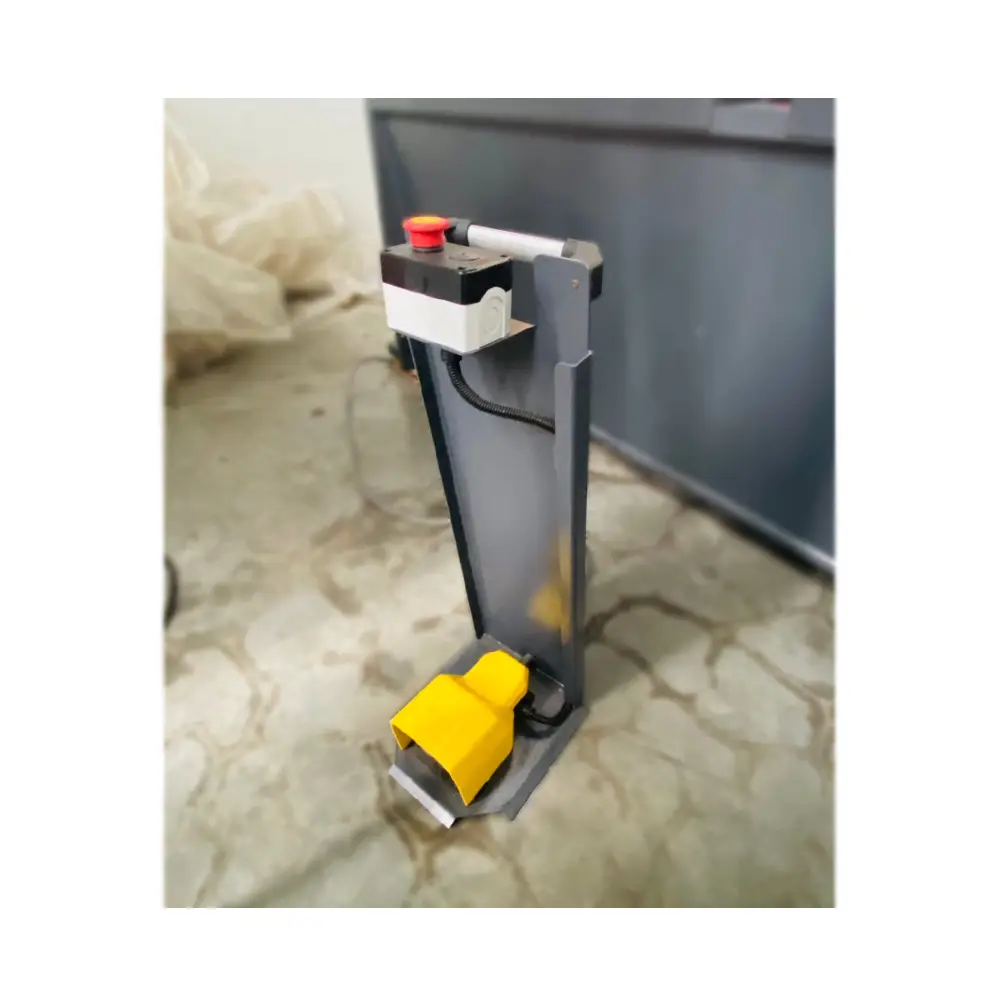

• Emergency Stop Button Footswitch.

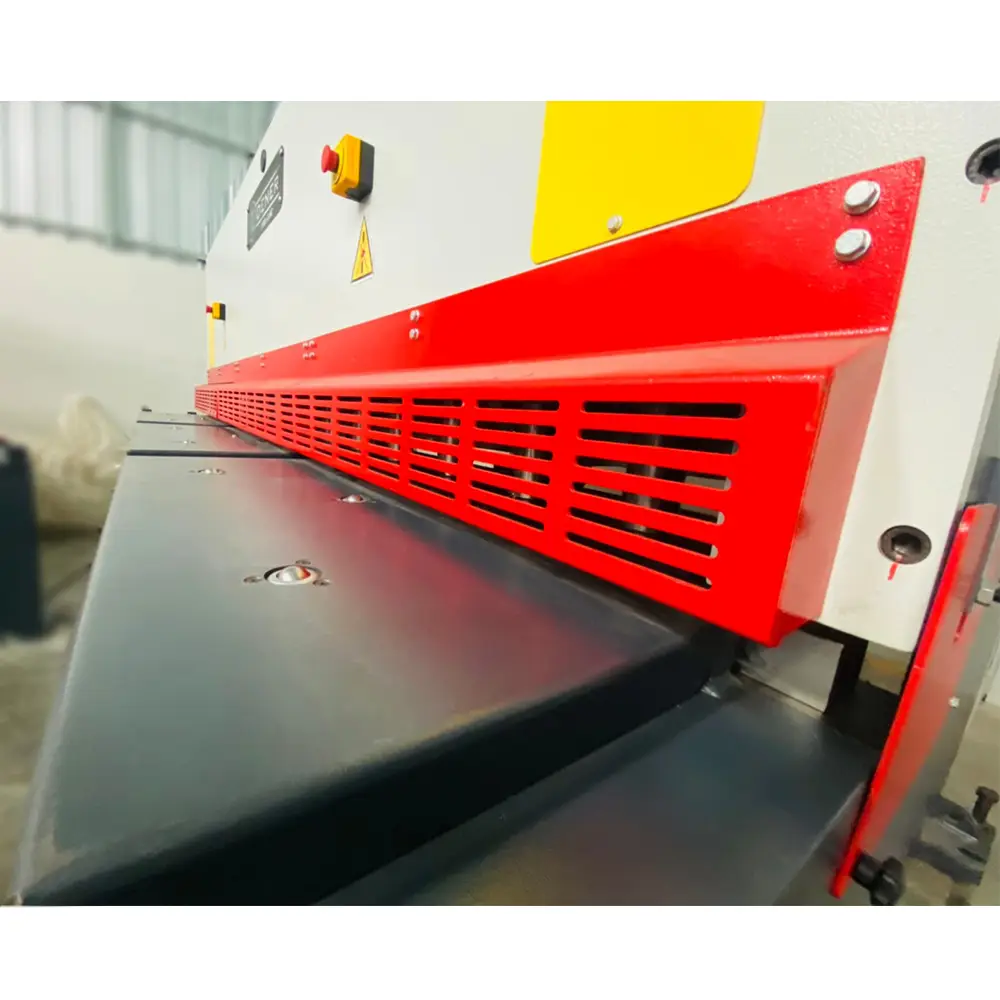

• Front Finger Protection Plate

Optional Equipment
• Esa 530 CNC Control
• Motorized Blade Gap Adjustment
• Manual Centralized Lubrication System
• Oil Cooling System
• Pneumatic Sheet Support System
• Laser Cutting Line
• Finger Guard Beam Barrier
